We all know that even when you’ve engineered a complete weighing system with all the right parts—precision load cells, reliable indicator, robust mounting hardware—something can still go wrong. The measurements are inconsistent.
The load is uneven. The system isn’t failing catastrophically, but it’s not performing optimally and that’s affecting reliability.
This is where junction box technology comes in. Not as the main system component but as the critical middleman, providing signal balancing and connectivity management and making sure every measurement point contributes to system accuracy.
What is a Load Cell Junction Box?

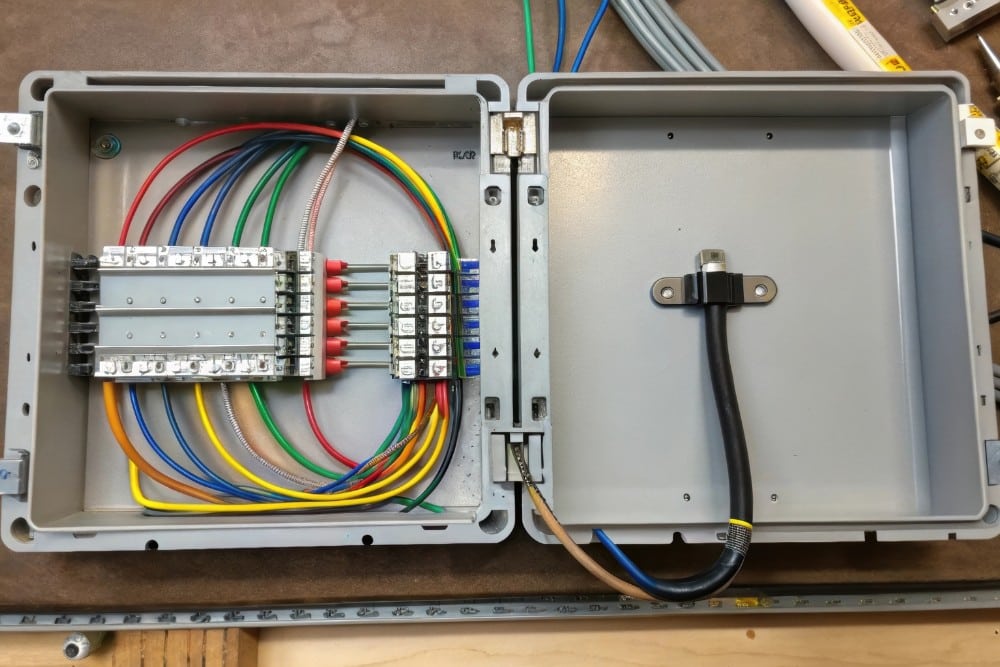

A load cell junction box is the critical point where multiple load cells come together to produce a single output signal.
Think of a typical industrial application with 4 or more load cells under a storage tank or weighing platform, each converting force into electrical signals.
The technical challenge arises because these cells will always produce slightly different output levels, even under the same loading. The junction box receives these individual inputs, sums the signals and sends a calibrated signal to your weighing indicator.
Without proper load cell junction box technology, measurement accuracy is compromised by signal inconsistencies that directly impact operational reliability.
How Does a Summing Box Work to Control Multiple Load Cells?
A summing junction box (the industry term for load cell junction box) captures analog signals from multiple load cells and sums them into one output.
This isn’t just a matter of electrical connection—it has calibration capability to allow technicians to adjust individual input signals so the final output represents the actual loading conditions and not just a mathematical approximation.
The technology eliminates signal imbalances through calibration. It allows technicians to adjust individual channel outputs so localized loading variations don’t introduce measurement errors.
It’s an engineering solution focused on signal correction that works continuously without operator intervention and provides measurement consistency under tough operating conditions.
What Are the Types of Junction Boxes?
There are three main types, each using different technical approaches:

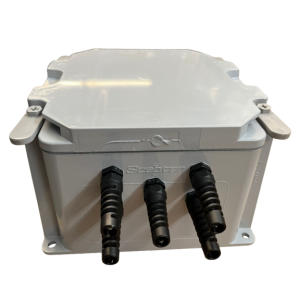

Passive Junction Boxes
- These systems don’t require external power or complex circuitry. The implementation relies on direct wiring and manual adjustment using precision resistors or potentiometers.
- They provide full technician control but require hands-on calibration procedures.
Smart Junction Boxes
- Active junction boxes are the ones that use electronic signal conditioning circuitry that requires external power.
- Their advantage is that they provide better signal quality, often have digital processing and sometimes have built-in diagnostics. They are the best solution for high-precision applications.
- They use advanced microprocessor technology, have sophisticated signal-processing algorithms, and sometimes have network connectivity.
When Does Load Cell Trimming Need To Be Done?
Trimming is a critical calibration process. While not required in all applications, when needed, it’s essential for measurement accuracy.
Trimming needs to be done when:
- The structural design creates uneven load distribution, remember to consider what goes into the tank:
- If the product is self-leveling like liquid, then it does not require trimming.
- If the product is not self-leveling then it does require trimming.
- If we are talking about platform scale, trimming is needed so that anywhere on the platform, it reads the same weight.
Without proper trimming, the system will still work, but measurement errors will be produced that will progressively compromise process control.
The Two Faces of Trimming
If you are dealing with passive junction boxes, there are two ways to trim multi-cell systems, each using different technical approaches:
1. Excitation Trimming
This method adjusts the voltage supplied to individual load cells. Technicians reduce the excitation voltage to cells that produce higher output signals. It’s simple to implement but may not be stable under variable environmental conditions or dynamic loading.
2. Signal Trimming
This approach calibrates the output signal generated by each load cell. It’s more stable in tough operating conditions and is the preferred method for high-accuracy applications.
Both methods ultimately want to achieve one thing: measurement consistency across all operating conditions.
The Trimming Procedure
Trimming is not technically complex but requires precise implementation procedures.
- Start with the complete system integrated with all cells connected to the junction box. Place a standard test weight next to each individual load cell and adjust the corresponding trim control until each cell produces the same output under the same loading.
- The key is to put the trim pot in the same position before trimming.
- Repeat this calibration cycle multiple times to ensure measurement consistency.
- This involves balancing each quadrant or corner of the system independently and then integrating these sections into a single measurement system. This is a macro-level calibration for complex measurement platforms.
Remember that trimming is always done after calibration is made.
How to Choose the Right Junction Box for Your Project
Technical considerations should include:
- How many load cells do you have and what’s the configuration?
- Will the installation be exposed to moisture, corrosives or extreme temperatures?
- Do you need diagnostics or network integration?
- Will calibration be a one-time commissioning or ongoing?
- Is analog simplicity or digital functionality more compatible with your existing systems?
Most importantly, what will the operational impact of measurement inaccuracy be? Because a bad junction box won’t cause system failure—it will introduce measurement drift that will gradually compromise process control until operational confidence is lost.
Contact Massload to Learn More About Which Load Cell Junction Box is Right for You
Junction box technology doesn’t require operator attention when done right. It just works. And when it does, all downstream systems run optimally.
If you’re unsure about the right junction box for your application or calibration method, contact our engineering team. Our technical experts will solve your measurement problems before they become operational issues.
Let’s get measurements right from the start!
