WIRELESS LOAD SHACKLES
Highlights
- Made in Canada Wireless load shackles
- Wireless load shackles are a cost effective solution for vehicle road rescue and towing, load lifting, boat lifting, and line tension measurement
- Standard Crosby bolt type shackle G-2130
- Accuracy 0.1% to 0.5% FS with multi-point calibration
- Eliminate cables and communicate with a range of wireless receivers including hand-held displays or PC-based data logging
- 2.4 Ghz wireless transmitter
- Wireless range up to 800 m (2,600 ft) free field site
- Powered by 2 “AA” size replaceable batteries
- Exceptionally low power for long battery life
- Remote power ‘on’ and ‘off’
- Waterproof to IP67
- Option in wired with mV/V, 4-20mA and 0-10V output
Product Details
WIRELESS LOAD SHACKLE
Support local manufacture with Massload’s rugged and reliable industrial grade T24 Wireless Load Shackle. Common applications include vehicle road rescue and towing, load lifting, boat lifting, and line tension measurement.

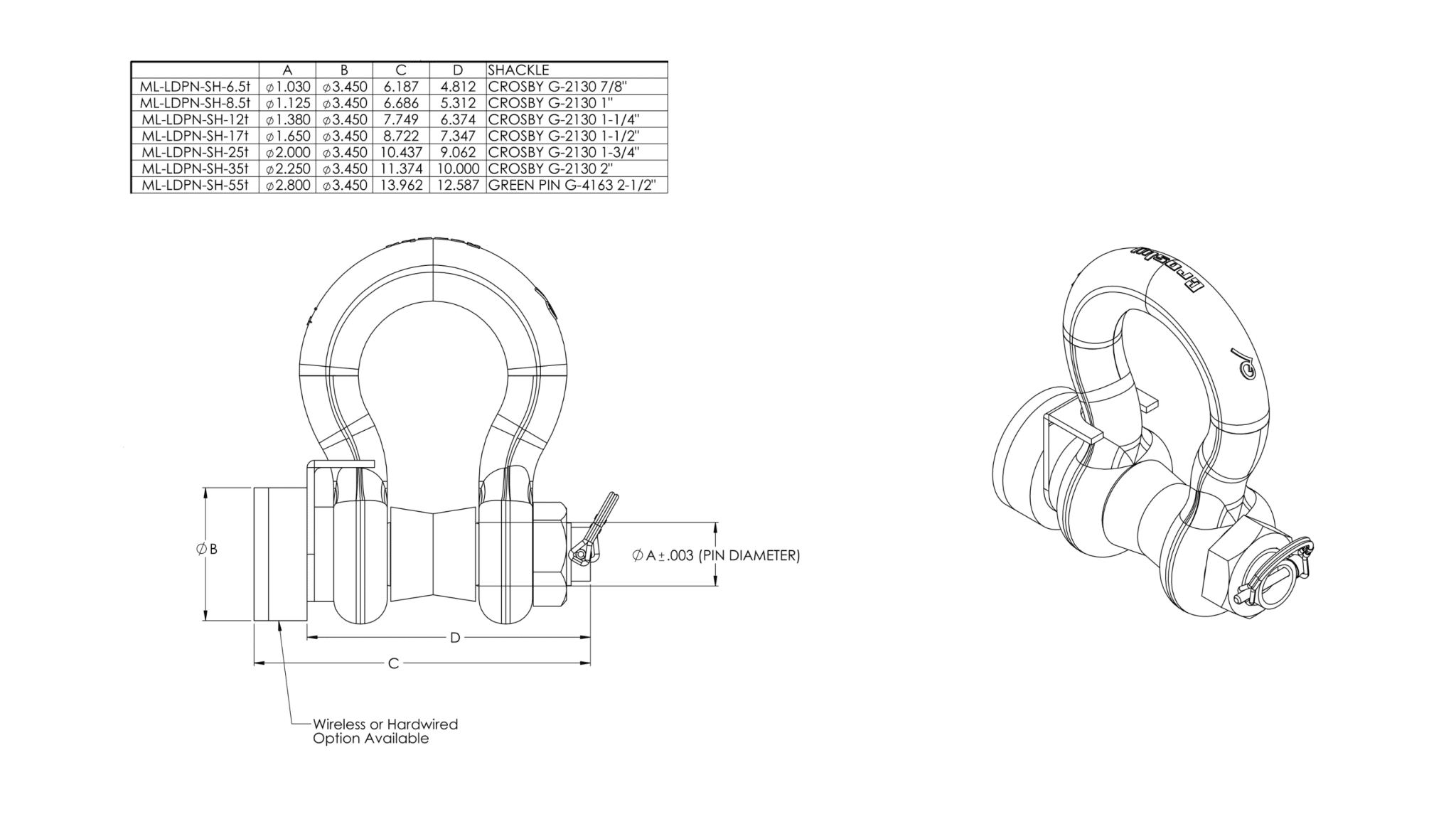

Massload’s T24 wireless load shackles are based on the industry standard Crosby bolt type shackle and come in capacities of 8.5t, 12t, 17t, 25t, 35t. The shackles are equipped with wire lock pin for fast assembly and disassembly.

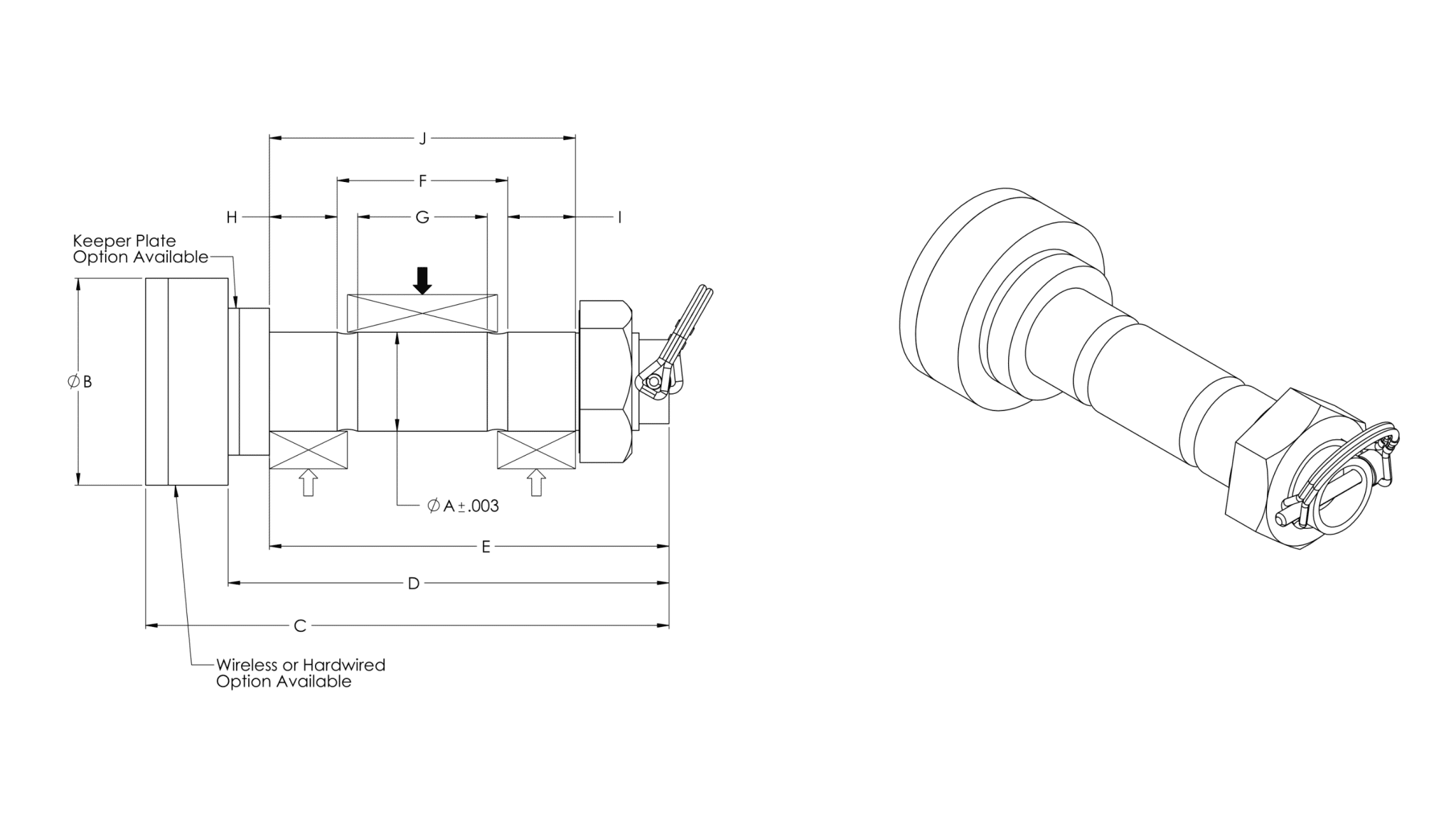

Massload’s load pins are internally gauged and made from the highest quality traceable US or European Stainless Steel.
The 2.4 Ghz wireless transmitters come with an internal antenna enclosed within a rugged and virtually indestructible enclosure ensuring the antenna cannot be damaged by rough handling. The transmitter is powered by 2 AA batteries and goes into sleep mode when not in use, extending battery life to over 500 hours continuous use equivalent. The wireless signal is very robust providing an open field range up to 2000 ft at 3m height.
Our T24 Wireless Load Shackle transmits load to a variety of T24 wireless readout indicator options including the WL-T24-HS single channel handheld LCD display, the WL-T24-HA 12-channel handheld LCD display, the WL-T24-BSu base station for data capture on PC, and the WL-T24-AO1i for wirelessly interfacing to 4-20mA PLC input.
Massload’s Wireless Load Shackles are manufactured and calibrated in-house through our VCAP certified Quality Management System.
Images
PRODUCT SPECIFICATIONS
| Capacities (tonnes) | 8.5t, 12t, 17t, 25t, 35t (55t special order) |
|---|---|
| Accuracy | Tension load accurate to 0.1% FS to 0.5% FS with multi-point calibration |
| Safe Overload | 150% full scale safe overload |
| Ultimate Overload | 300% full scale ultimate overload |
| Output | Wireless to Hand-held Display, 1-channel up to 12-channels |
| Power | Wireless Load Pin: 2 AA Batteries |
| Wireless Frequency | 2.4 Ghz |
| Wireless Range | Up to 800m (2600ft) free field at 3m height |
| Wireless Transmitter Battery Life | 500 Hours Continuous (2 months @ 8hrs/day use) |
| Operating Temp | Wired:-40°C to +80°C |
| Compensated Temp | -10°C to +40°C |
| Sealing Standard | IP-67 protected from dust and high pressure jets of water |
| Material | Load pin: 17-4 Stainless Steel (USA or European origin) |
INDUSTRIAL PELICAN CASE
Safely store your wireless load shackle and display ready for immediate use anytime. (Image shows wireless tension link)
2.4 GHZ WIRELESS BASE STATION RECEIVER
Capture your wireless signal directly to a PC via the T24-BSu USB base station receiver and display your data on the free T24LOG100 software.
Please click on the following links to download or view additional information:
