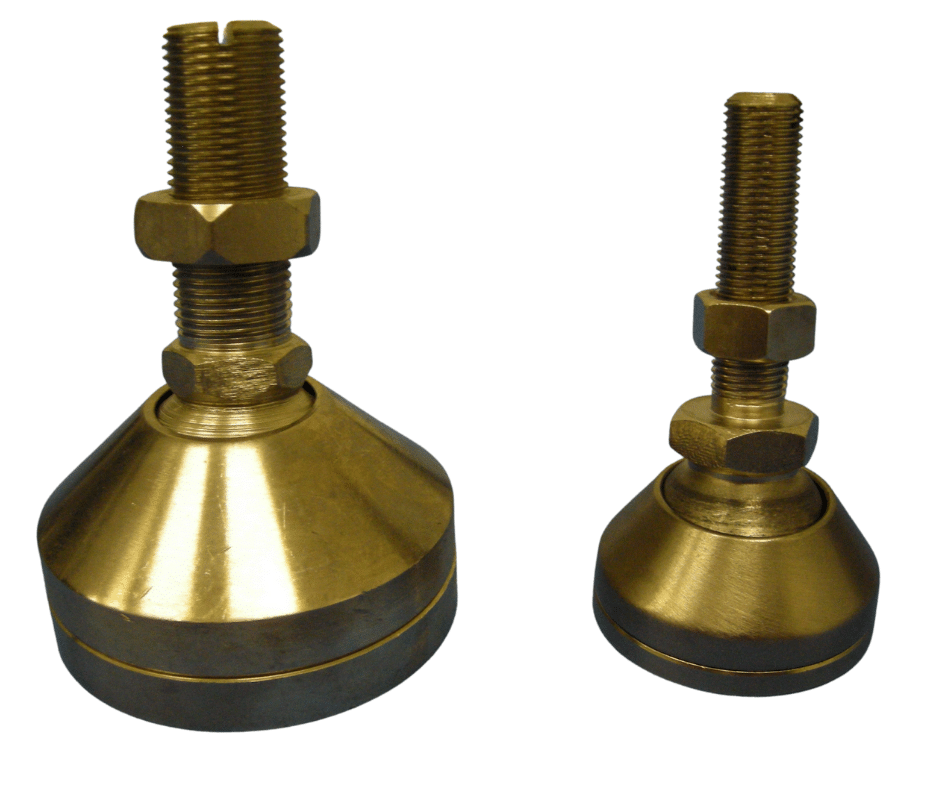

A levelling foot or free floating foot is the most common method of point loading a single ended load cell. These are threaded into the end of the load cell and used to transfer the weight to the ground.

Highlights

  • Point loading mount for single ended shear beam load cell

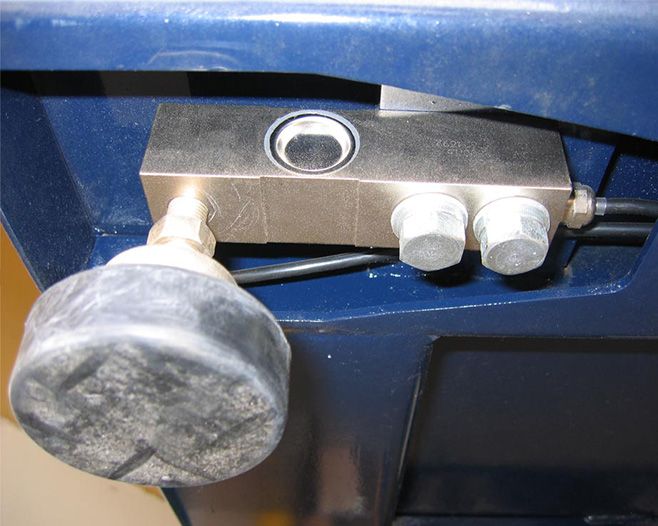

  • Screws into load cell and is adjusted for height to level the platform
  • Ball joint swivel accommodates some motion of load
  • Rubber base provides friction to reduce movement at floor contact
  • Welded steel plates also available for hard mount to floor
  • Ideal for floor scales, livestock scales, and batching/vessel weighing applications
  • Standard sizes: M12; 1/2″-20UNF;3/4″16UNF;1″-14UNS
  • Stainless steel options
  • Custom Massload manufactured options for rugged industrial environments
  • 1 year warranty – standard
  • 2 year warranty – Custom

Product Details

The single ended load cell can be used as the weigh sensor in a variety of applications including floor scales, blenders, hoppers, tank scales, and platform sensors. Point loading can take place via load cell assemblies or via levelling feet / free floating feet.

PRODUCT SPECIFICATIONS

Capacities (pounds)

500 to 20K

Safe Overload

150% full scale safe overload

Ultimate Overload

300% full scale ultimate overload

Full Scale Output

3 mV/V +/- 0.25% FS

Maximum Excitation

10 volts DC

Operating Temp

-40°C to +80°C

Compensated Temp

-10°C to +40°C

Sealing Standard

IP-67 protected against high pressure jets of water

Non Linearity

+/- 0.05% to +/- 0.1% full scale

Material

17-4PH Stainless Steel (standard),or
4140 / 4340 High Strength Alloy Steel

Protective Coating

High phosphorous, corrosion and chip resistant, industrial grade electroless nickel

Bridge Resistance

350 Ohm

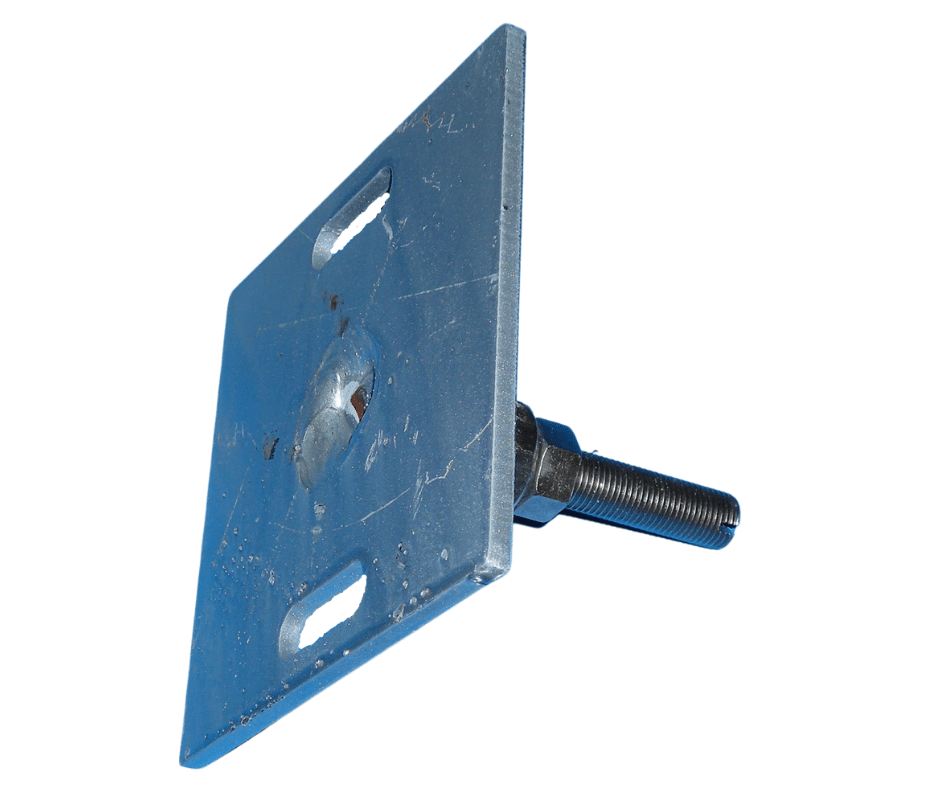

WELDED MOUNTING PLATE

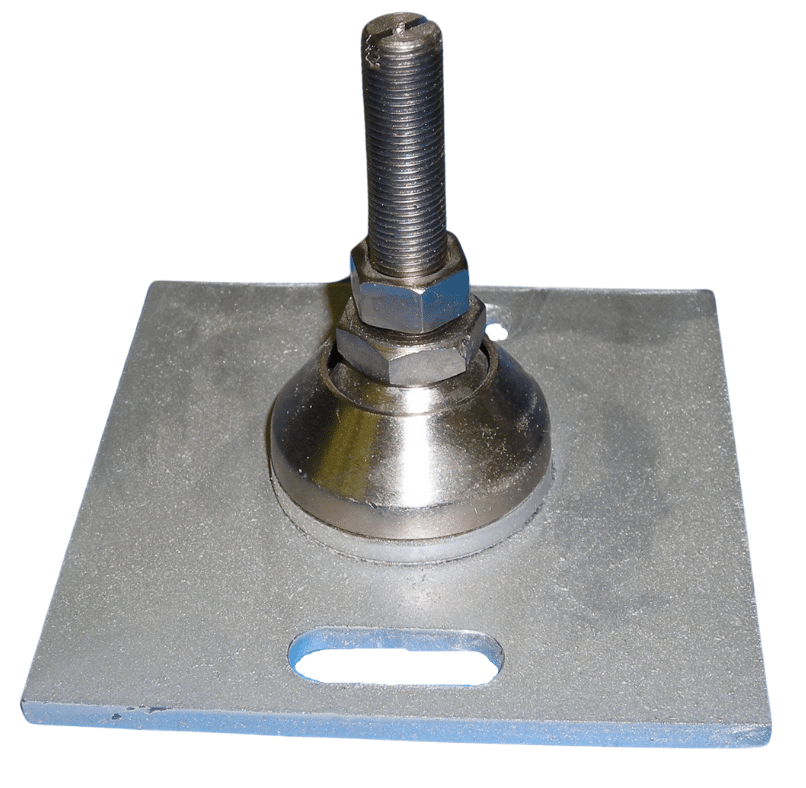

Levelling feet can be supplied with a weld on mounting plate for bolting to the floor

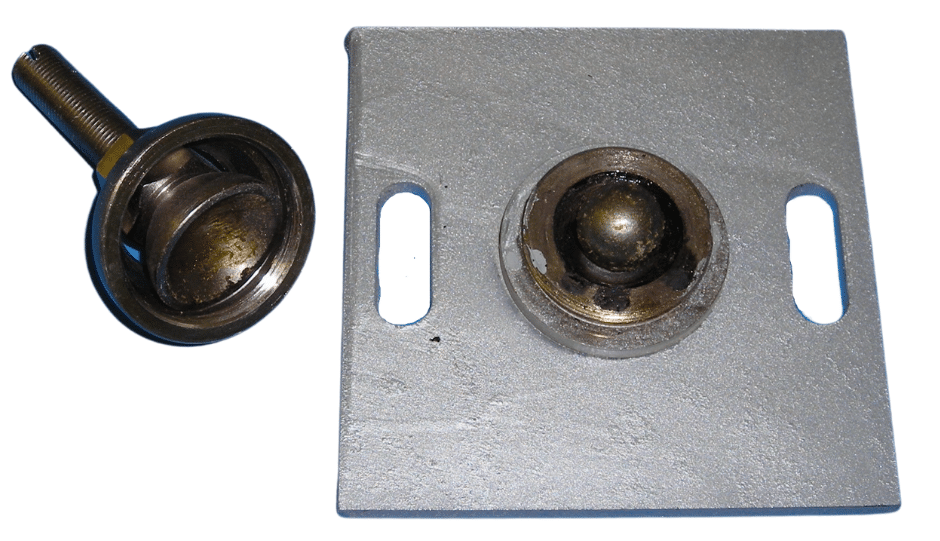

EXPANDED VIEW OF WELDED MOUNTING PLATE

CUSTOM DESIGNED LEVELLING FEET


Massload custom designs and fabricates heavy duty levelling feet for the harshest oil and gas environments
