Mining Vehicle Scales
These large heavy duty axle pad scales are ideal for mining truck weight checking and calibration of truck scales and loader scales to ensure optimized loading and operational throughput. Contact Massload for more details and to discuss your specific requirements by contact@massload.com or tel. 1-306-242-2020
This system it is not intended for legal for trade applications.
Highlights

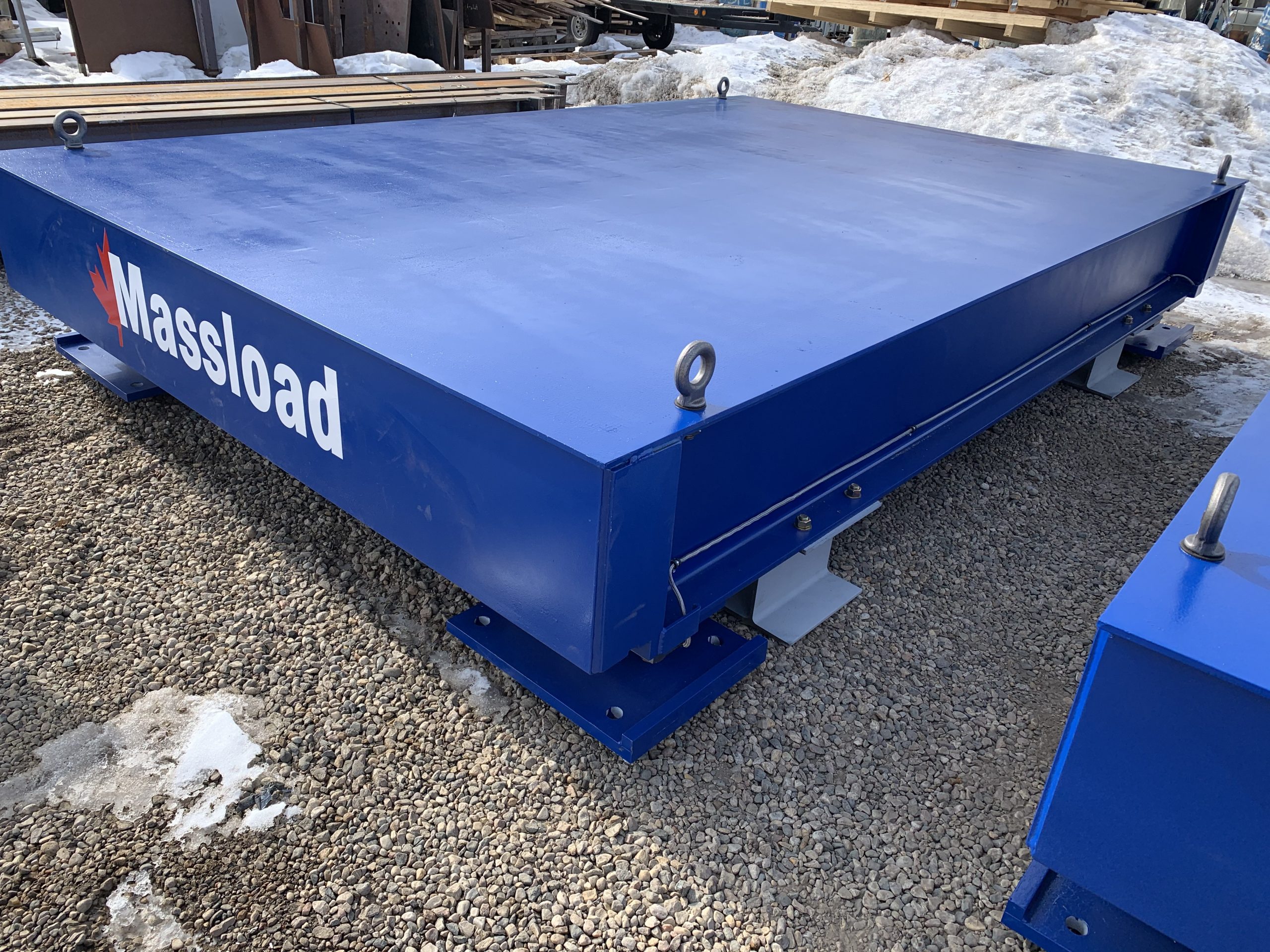

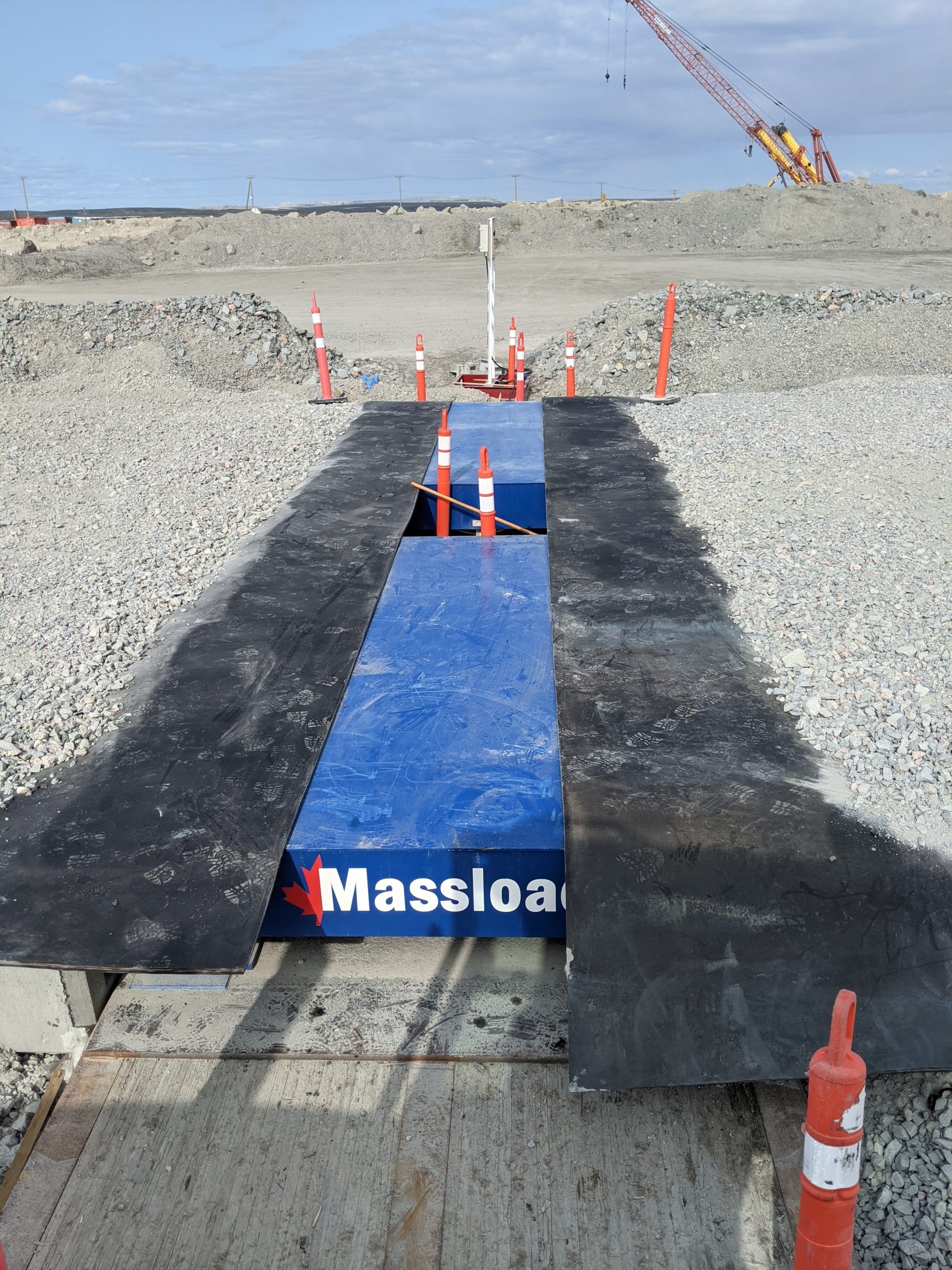

- 12ft x 8ft axle scale for weighing Komatsu 830E-5 mining truck
- Wheel load accuracy better than 1% FS
- Large 4.5″ display with weight and stop-go traffic light signaling for truck driver
- Wireless connection from scale to PC operating Massload Advanced Weigh Scale Software including …
- Axle weight accumulation and totalization
- Truck ID capture before or after weigh
- Truck-in / truck-out
- Data logging for operational analysis
Product Details
Our robust and heavy-duty axle pad scales are meticulously designed for the stringent demands of mining operations.
They serve as an indispensable tool for monitoring and calibrating onboard mining vehicle scales and loader scales, guaranteeing optimal loading efficiency and seamless operational flow.
Please note: This system is not intended for use in legal-for-trade applications.
Images
PRODUCT SPECIFICATIONS
REMOTE STOP-GO TRAFFIC LIGHT SIGNALLING
The highly visible 4.5″ Aurora 45 SL display assists drivers to know when to stop on scale and when to proceed, as well as advising axle weights and total weight. Visit our Remote Display 4.5″ Aurora 45 SL page for more technical details.
WIRELESS SCALE WEIGHT TRANSMITTER
The WL-T24-ACM-SA battery powered 2.4Ghz wireless transmitter transmits each wheel scale weight up to 2600ft. The large D cell batteries provide long operational life. Visit our Wireless T24-ACM-SA page for more technical details.
WIRELESS T24 BSu USB BASE STATION RECEIVER
The WL-T24-BSu USB base station receives the 2.4Ghz wireless weight signal and feeds data to the PC-based Massload Advanced Weigh Scale Software. Visit our wireless T24 BSu USB Base station page for more technical details.

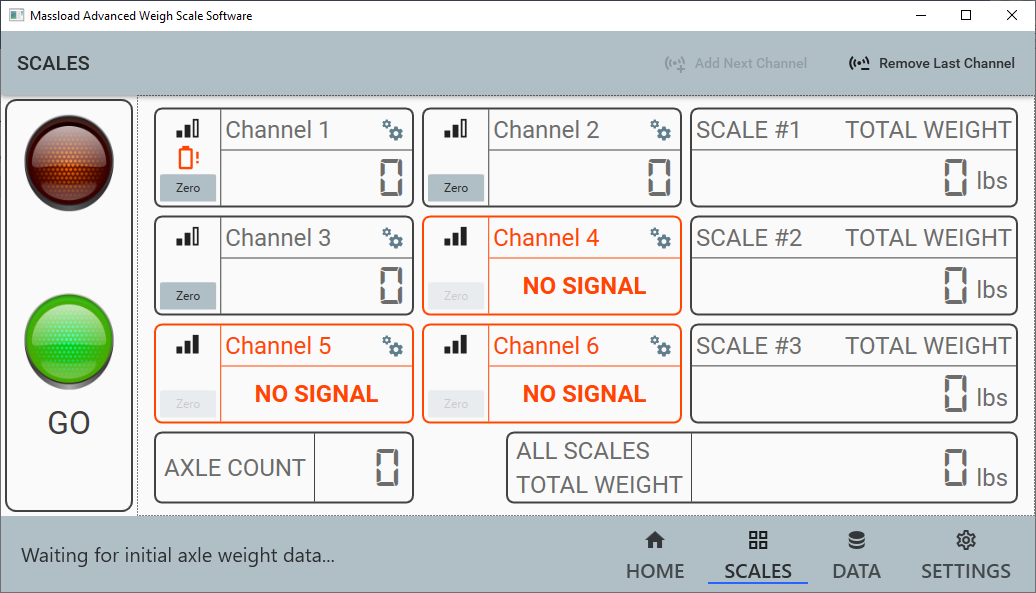

MASSLOAD ADVANCED WEIGH SCALE SOFTWARE
Our Massload Advanced Weigh Scale Software is our most recent weigh processor system with advanced capabilities including:
– Individual wheel and axle weight capture
– Axle weight accumulation and totalization
– Real-time determination of weight capture and signaling via on screen red-green/stop-go traffic light -signaling, plus serial port to remote display signaling control
– Gross, tare, net weight calculation and display
– Truck-in / Truck-out control
– Truck ID capture
– Data logging including time and date
– Post-capture data editing
– Multi-channel static weight capture and logging
The Massload Advanced Weigh Scale Software is built on the latest .NET platform for Windows 10 64 bits. Visit our Massload Advanced Weigh Scale Software page for more technical details.
