Ultraslim Portable Vehicle Weight Scales

Each weigh pad comes with two attachable ramps for static weighing. Should dynamic weighing be required, we recommend extra long weigh pads (1 meter) and leveling track. See portable weigh-in-motion for more information on using Ultraslim weigh scales to obtain dynamic weight.

These weigh pads are not legal-for-trade in obtaining static weight or dynamic weight.

Highlights

Ultraslim hand portable vehicle weight scale
Available as cabled wheel weight scale, integrated LCD display or 2.4 Ghz Wireless
20,000lbs and 40,000lbs capacities per wheel weigher
Large 30″ x 18″ weighing surface for dual tires
Extreme low profile 0.8″ reduces weigh error in absence of multi-axle levelling
Used for check weighing, not certified legal-for-trade
Wheel load accurate to within 0.5% FS (comparable to Haenni wheel load scale)
Calibrated in lbs or kg to NIST traceable standards
Weigh on concrete or asphalt is recommended
Extra strong baseplate for use on compacted gravel. Soft or spongy surfaces to be avoided
Levelling recommended for multi-axle weighing

Product Details

ULTRASLIM PORTABLE VEHICLE WEIGHT SCALE

Avoid costly overweight fines with the Ultraslim Portable Vehicle Weight Scale from Massload. Our Ultraslim wheel load scale is extremely low profile and portable making it extremely convenient. Massload’s Ultraslim wheel weigher scale is lightweight yet proven to be durable in the most rugged situations.

The Ultraslim Portable Vehicle Weight Scale is the perfect solution to avoid vehicle overloading and maximize load efficiency. Make sure you aren’t overloaded with these wheel load scales and avoid fines, increased running costs/downtime, loss license, increased likelihood of accidents and even damage to roads. In addition to that, our vehicle weight scale ensures even distribution of your load.

As a business owner, transport manager or driver, you need to be aware of the risk of overloading your vehicle and the penalties that you can encur. Invest in Massload’s Ultraslim Portable Vehicle Weight Scale and save!

Each Wheel Load Scale comes with two attachable ramps for static weighing. Levelling tracking should be used for multi-axle weighing. For dynamic weighing, we recommend our 1 meter long Wheel Load Scale and leveling track. See portable weigh-in-motion for more information on using Ultraslim Portable Vehicle Weight Scale to obtain dynamic weight.

These portable vehicle weight scales are not intended for use in legal-for-trade applications.

Available with built in LCD display, built-in wireless, or with military quick disconnect cable.

Images

Rated Capacity (pounds)	20,000 lbs wheel weigh scale 40,000 lbs wheel weigh scale
Accuracy	Wheel load accuracy better than 0.5% FS nominal
Overload Capacity	125% full scale safe overload 150% full scale ultimate overload
Temperature Range	-30ºC to +60ºC (operating) -10ºC to +60ºC (compensated). Net 0.10% FS static error for every 10ºC departure from 20ºC
Graduation	20 lbs (20,000 lbs capacity) (typical) 50 lbs (40,000 lbs capacity)
Weight	52 lbs (cabled wheel load scale) 55 lbs (LCD/ wireless wheel load scale)
Material	High strength aluminum frame and weighing surface Heavy duty stainless steel base plate
Ground Requirements	These wheel weighers must be used on a hard level and flat surface only and should be level within 1/8″ per square meter

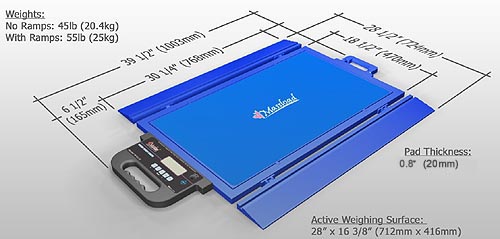

Dimensions	Max: 39 1/4″ x 28 1/2″ x 0.8″; weighing surface: 16 3/8″ x 28″
Sealing Standard	IP-66: totally protected from dust; protected from strong jets of water
Power	Wired scale model is powered by its indicator Wireless and LCD scale models are powered by AA batteries (LCD 4, WL 2)

LCD ULTRASLIM PORTABLE VEHICLE WEIGHT SCALE

This wheel load scale comes with an integrated Massload LCD readout display
Vehicle weight displayed via highly visible 1″ LCD screen
Factory pre-calibrated
Powered by 4 AA batteries for 200+ hours of continuous truck scale operation
Backlit LCD for night use
User interface via 5 button keypad
No running wires or remote displays to carry around

WIRELESS ULTRASLIM PORTABLE VEHICLE WEIGHT SCALE

Wireless communication to external display (see Wireless products)
2.4Ghz radio link
Range up to 200 feet line of sight
Powered by 2 AA batteries, up to 1 year operation
Hibernates when wheel weigher is not in use

WIRED ULTRASLIM PORTABLE VEHICLE WEIGHT SCALE

Wheel load scale pad has a cabled connection to any wired display (see Intrumentation products for options)
One display controls multiple pads
Individual vehicle wheel weight, axle weight, and total truck weight provided by one indicator (no manual addition)
Allows for printer attachment
Allows for remote score boards for long distance viewing
Allows for computer interface, weighing software and data storage

PORTABLE DATA CASE WEIGHT PROCESSOR FOR VEHICLE WEIGHT SCALES

For the ultimate in portability, the portable data case includes an M2000 indicator, dot matrix printer, and high capacity battery all within a water tight pelican carrying case. Just lay the system down, plug the portable wheel weigh scales in, and you are ready to obtain individual vehicle wheel weights, vehicle axle weights, and vehicle weight. The built-in printer can be programmed for standard or custom weight tickets.

ULTRASLIM CARRYING CASE

Heavy duty carrying case for any Ultraslim Wheel Load Scale
Wheels for easy transport
Two weigh scales per case
Case weight: 59 pounds
Case dimensions: 43″ x 24″ x 8″

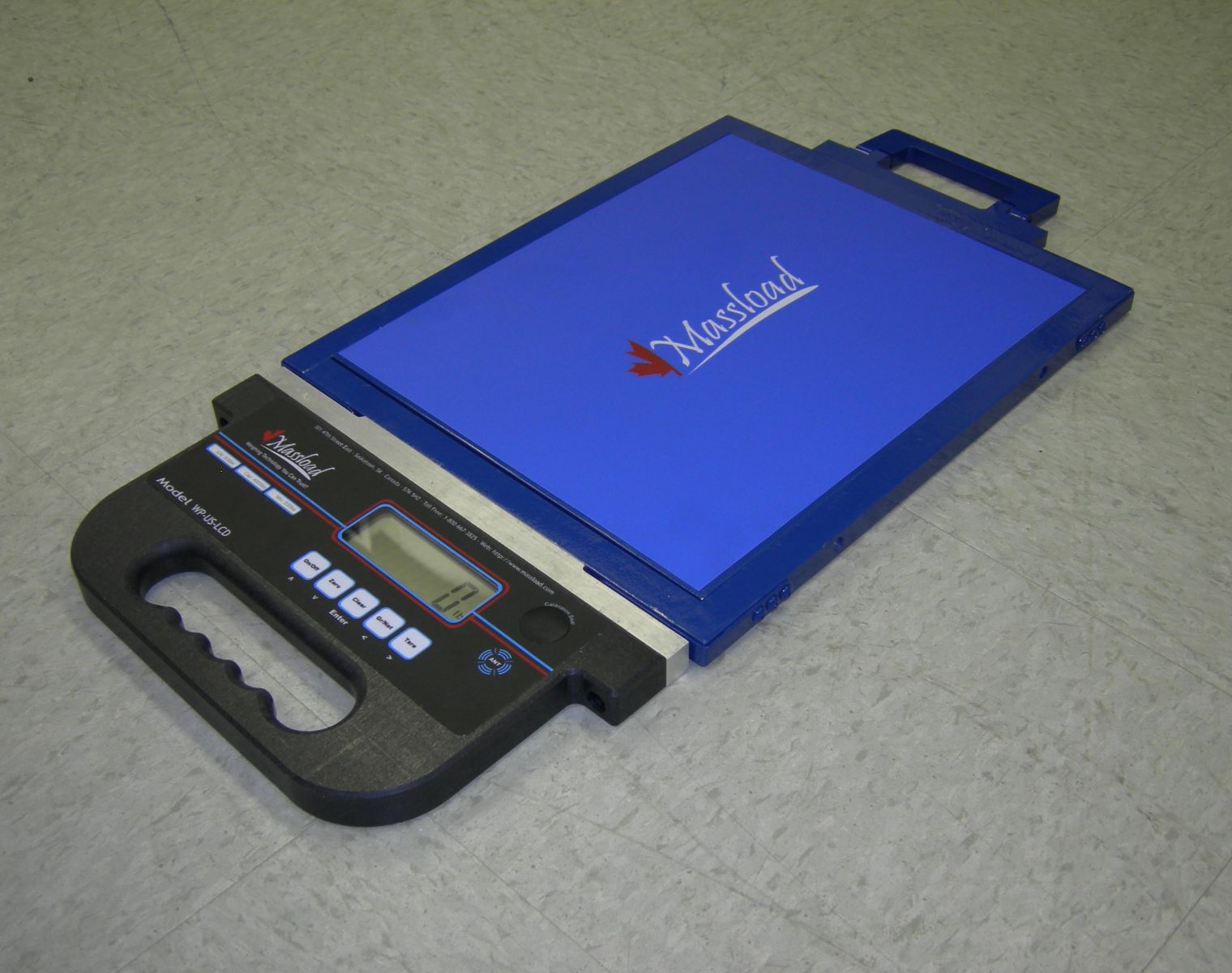

MINI ULTRASLIM WHEEL LOAD SCALE

Low capacity weigh scale for small vehicles
Weighing surface of 16″ x 30″
Weigh scale capacity of 4,000 lbs.
Available in cabled, LCD, and wireless options per above
