Massload Ultraslim to Indicator with Truck-in Truck-out

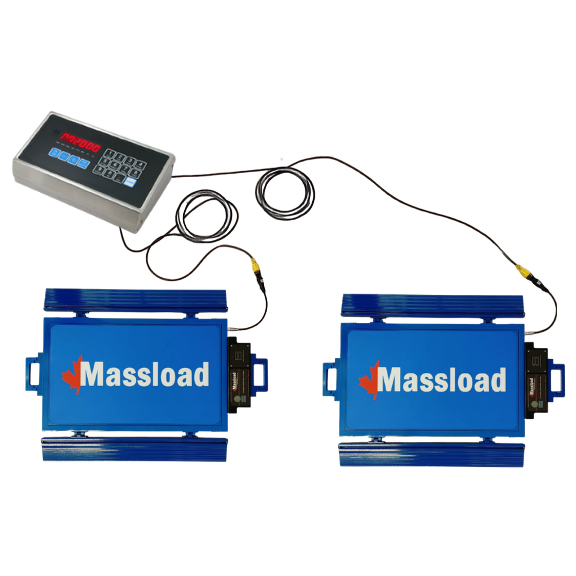

The 6-pin Massload Ultraslim Wheel Load Scale connect to an Western Scale M2000 indicator featuring truck-in/truck-out weighing, capturing inbound and outbound totals for static single- or multi-axle check weighing up to three axles.
The M2000 supplies power to the pads, offers up to five-point calibration, and drives an optional thermal serial printer for on-the-spot weigh tickets or a remote display.
Ramps are included with the scale and levelling tracks are available as optional accessories.
PRODUCT DETAILS
Explore the Massload Ultraslim Scale Family
The Massload Ultraslim Portable Vehicle Weight Scale is an ultra-low-profile wheel load scale designed for fast, accurate vehicle check weighing wherever it’s needed. Measuring just 0.8 inches (20 mm) high, each weigh pad easily slides beneath a wheel, allowing operators to verify wheel, axle, and gross vehicle weights without the need for permanent installations.
Designed for portability, durability and versatily the Ultraslim can be used with a variety of read-out options on concrete, asphalt, or properly compacted gravel, making it ideal for roadside inspections, fleet maintenance yards, farms, construction sites, terminals, and remote job locations.
By weighing each wheel position individually, user can calculate accurate axle loads and gross vehicle weight while identifying uneven load distribution. Operators can correct overloaded axles before vehicles enter public roads, helping reduce the risk of overweight fines, equipment damage, excessive tire wear, and safety hazards.
Unlike traditional portable wheel scales, the Ultraslim’s exceptionally low profile minimizes the height difference between weighed and unweighed wheels, reducing measurement errors and improving accuracy – even when leveling tracks are not available.
Key Features
- Ultra-low profile design measuring only 0.8″ (20 mm)
- Large 30″ × 18″ weighing surface accommodates dual tires
- Available in 20,000 lb and 40,000 lb capacities per wheel
- Wheel load accuracy within ±0.5% Full Scale
- Portable, lightweight construction for field deployment
- Suitable for concrete, asphalt, and properly compacted gravel
- Factory calibrated to NIST-traceable standards
- Available in cabled, wireless, or integrated display configurations
- Rugged steel construction for demanding industrial environments
Built for Field Use
The Ultraslim combines the accuracy of a permanent weighing system with the flexibility of a truly portable solution.
Each weigh pad is lightweight enough to be carried by hand or transported in a service vehicle while remaining rugged enough for everyday industrial use. Every system is calibrated to NIST-traceable standards and can be supplied in either pounds or kilograms.
Available configurations include:
- Cabled systems with military-style quick-disconnect connectors, that can be wired to a variety of indicators
- Integrated LCD display models
- 2.4 GHz wireless systems
Capacities are available up to 20,000 lb or 40,000 lb per wheel, making the Ultraslim suitable for everything from light commercial vehicles to heavy-duty trucks.
Typical Applications
The Ultraslim Portable Vehicle Weight Scale is commonly used for:
- Truck and trailer check weighing
- Wheel and axle load measurement
- Fleet maintenance and safety inspections
- Roadside weight enforcement
- Agricultural vehicle weighing
- Terminal and yard loading verification
- Construction and mining equipment monitoring
- Bus and commercial vehicle load distribution
- Portable weigh station operations
Static and Dynamic Weighing
Each weigh pad includes two removable ramps for static vehicle weighing.
For multi-axle vehicles, Massload recommends using optional levelling tracks to improve measurement accuracy by maintaining the same elevation across all wheel positions.
For portable weigh-in-motion (dynamic weighing) applications, longer 1-metre Ultraslim weigh pads combined with levelling tracks are recommended. Contact Massload for guidance on selecting the appropriate portable weigh-in-motion configuration.
Why Choose the Massload Ultraslim?
The Ultraslim Portable Vehicle Weight Scale allows operators to verify vehicle weights quickly without relying on fixed weighbridges or permanent installations.
Whether used by transportation companies, municipalities, farms, enforcement agencies, or industrial operations, the system helps:
- Reduce the risk of overweight fines
- Improve vehicle safety
- Extend the life of tires, brakes, and suspension components
- Optimize payload distribution
- Increase operational efficiency
- Verify vehicle weights before leaving the job site
Most Common Applications: Truck and axle check weighing, roadside traffic weight enforcement, load distribution monitoring, terminal load and unload verification.
| Capacities | 20,000 lb (9,072 kg), 40,000 lb (18,144 kg) |
|---|---|
| Accuracy | <= 0.5% full scale |
| Safe Overload | 125% of full scale |
| Ultimate Overload | 150% of full scale |
| Graduation | 20 lb (9 kg) at 20,000 lb; 50 lb (23 kg) at 40,000 lb |
| Operating Temperature | −30°C to +60°C (−22°F to +140°F) |
| Compensated Temperature | −10°C to +40°C (14°F to 104°F) |
| Sealing Standard | IP66 |
| Material | Aluminum alloy weighing surface, heavy-duty steel base plate |
| Dimensions | 30.25 × 18.5 × 0.8 in (76.8 × 47 × 2 cm) excluding handle |
| Weighing Surface | 28 × 16.375 in (71.1 × 41.6 cm) |
| Weight | 62 lb (28.1 kg) |
| Power | – |
| Communication / Readout | – |
