2000 Double-Ended Shear Beam Load Cell Transducer

2000 Double-Ended Shear Beam Load Cell Transducer

This super heavy duty high quality 150K double-ended shear beam load cell transducer is designed for rugged batch weighing applications in oil and gas and mining that require rigid mounted tanks / silos such as fracking proppant silos and large capacity weigh platforms. The high capacity is perfect for large scale projects or in applications with dynamic or shock loading.

Highlights

  • High quality Canadian-made load cell transducer manufactured in Canada’s only VCAP (Verified Conformity Assessment Program) certified load cell manufacturing facility
  • Super heavy duty double-beam load cell for rigid mounted tanks / silos and platforms in rugged weighing applications for oil, gas and mining such as fracking proppant silos and large capacity weigh platforms
  • Center loaded
  • 150K capacity
  • 4340 Alloy Steel
  • 2 year warranty

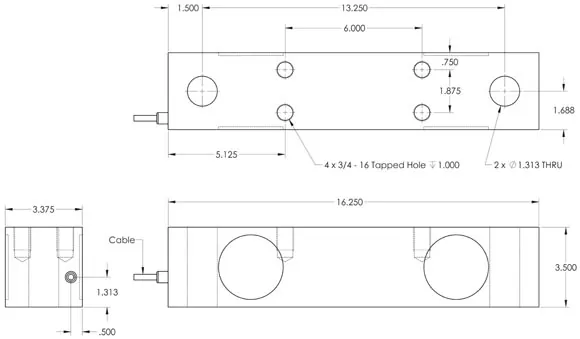

2000-spec

Product Details

2000 Double-Ended Shear Beam

This super heavy duty high quality 150K double-ended shear beam load cell transducer is designed for rugged batch weighing applications in oil and gas and mining that require rigid mounted tanks / silos such as fracking proppant silos and large capacity weigh platforms. The high capacity is perfect for large scale projects or in applications with dynamic or shock loading.

PRODUCT SPECIFICATIONS

Capacities (pounds)

150K

Safe Overload

150% full scale safe overload

Ultimate Overload

300% full scale ultimate overload

Full Scale Output

3 mV/V

Maximum Excitation

15 volts DC

Operating Temp

-40°C to +80°C

Compensated Temp

-10°C to +40°C

Sealing Standard

IP-67 protected against high pressure jets of water

Non Linearity

+/- 0.5% full scale

Material

4140 / 4340 High Strength Alloy Steel

Protective Coating

Electro-less nickel – industrial high phosphorous, corrosion and chip resistant

Bridge Resistance

700 Ohm
