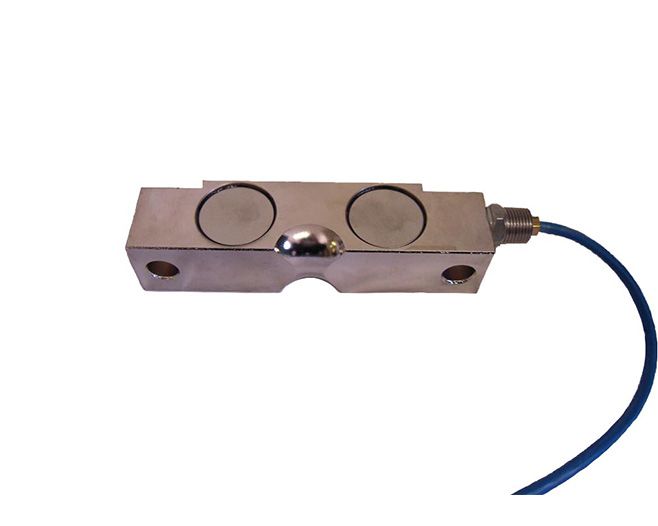

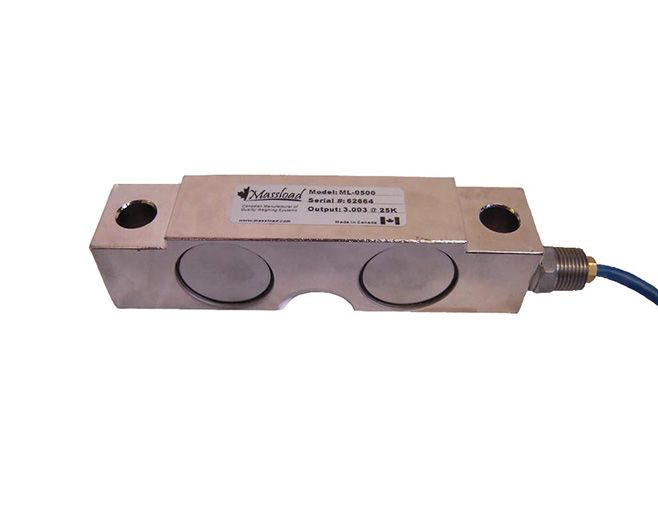

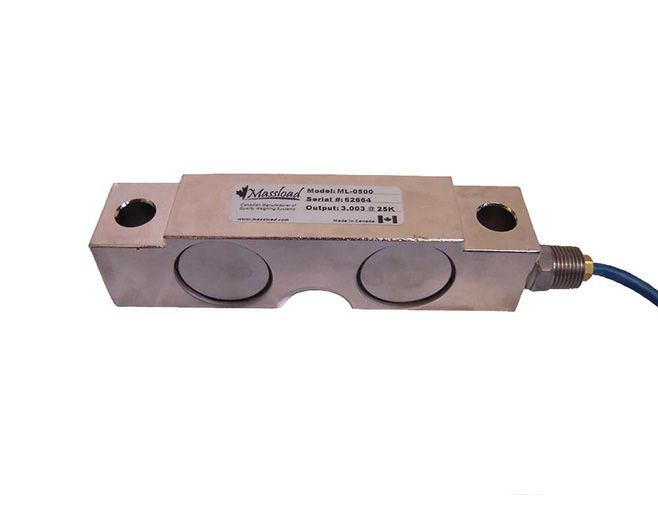

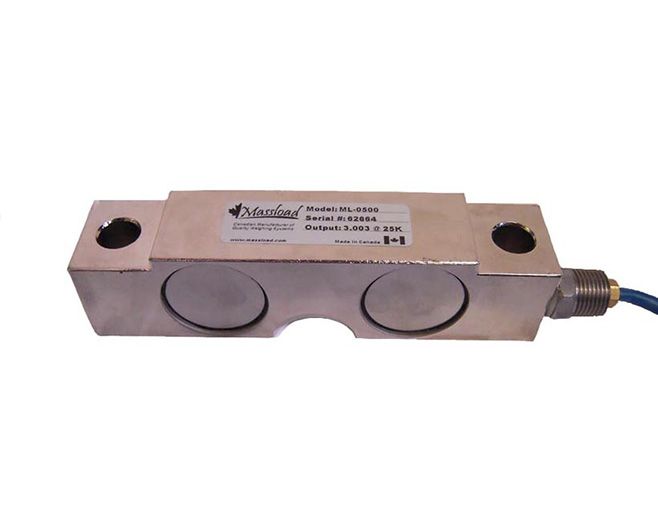

500 Double-Ended Shear Beam Load Cell Transducer
This double ended shear beam load cell is designed for center loading and is ideally suited for large capacity weighing. Common applications includes tank weighing, truck and railway scales. This precision load cell can meet legal-for-trade requirements.
Highlights
- High quality Canadian-made load cell transducer manufactured in Canada’s only VCAP (Verified Conformity Assessment Program) certified load cell manufacturing facility
- Precision double-beam load cell transducer for use in non legal-for-trade applications
- 4340 Alloy Steel or 17-4PH Stainless Steel
- Used in tank and hopper batch weighing scales
- Center point loaded via weigh module system (see options)
- 4 year warranty
- Optional imported NTEP approved load cells for use in legal-for-trade applications with 1 year warranty
| Capacity (Pounds) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
|---|---|---|---|---|---|---|---|---|
| 25,000 | 165 | 197 | 127 | 35 | 43 | 43 | 49 | 18 |
| 50,000 | 216 | 260 | 162 | 49 | 62 | 67 | 75 | 27 |
| 60,000 | 216 | 260 | 162 | 49 | 62 | 67 | 75 | 27 |
| 75,000 | 216 | 260 | 162 | 49 | 62 | 67 | 75 | 27 |
| 100,000 | 324 | 387 | 228 | 80 | 74 | 87 | 98 | 40 |
| 125,000 | 324 | 387 | 228 | 80 | 74 | 87 | 98 | 40 |
Product Details
500 Double Shear Beam Load Cell Transducer
This double ended shear beam load cell transducer is designed for center loading and is ideally suited for large capacity weighing. Common applications includes non legal for trade tank and hopper batch weighing and railway scales. This load cell also comes in NTEP approved for legal-for-trade weighbridge truck scales.
Images
PRODUCT SPECIFICATIONS
| Capacities (pounds) | 25K to 125K load cell capacities |
|---|---|
| Safe Overload | 150% full scale safe overload |
| Ultimate Overload | 300% full scale ultimate overload |
| Full Scale Output | 3.0 mV/V +/- 0.25% FS |
| Maximum Excitation | 15 volts DC |
| Operating Temp | -40°C to +80°C |
| Compensated Temp | -10°C to +40°C |
| Sealing Standard | IP-67 protected against high pressure jets of water |
| Non Linearity | +/- 0.05% to +/- 0.1% full scale |
| Material | 17-4PH Stainless Steel (standard), or |
| Protective Coating | Electro-less nickel – industrial high phosphorous, corrosion and chip resistant |
| Bridge Resistance | 700 Ohm |
LOAD CELL POINT OF ORIGIN
High quality Canadian made load cell without NTEP certification and 2 year warranty
Import load cell with NTEP certification and 1 year warranty
LOAD CELL ASSEMBLIES
Our tank weighing assembly has a simple design so load cell replacement is made easy. Hardened rocker pins ensure a long service life and the low profile design makes it a feasable assembly for many applications. Simply bolt the system to the foundation and to the structure being weighed and your rigging is complete.
Please click on the following links to download or view additional information:
- Brochure ML500 Double-Ended Beam Load Cell
