We all know that an accurate measurement display isn’t just a “nice-to-have” in industrial processes—it’s absolutely critical.
When you’re dealing with precise forces, critical tensions and hazardous conditions, signal clarity becomes a safety issue, not just an operational metric. Inaccurate readings in these environments don’t just hurt your bottom line; they can cause equipment failures, compliance violations and, worst case, personnel injuries.
Industrial operations in manufacturing, construction, agriculture and material handling face some of the toughest measurement interpretation environments imaginable. The combination of variable signals, harsh conditions and operational requirements creates a perfect storm where standard display technology fails or degrades rapidly under pressure.
This is where properly engineered load cell meters come in. These aren’t your standard digital displays with basic functionality—they’re purpose-engineered interpretation devices designed to maintain accuracy and reliability in conditions that would render conventional indicators useless in weeks or sometimes days.
What Is a Load Cell?
At the core of every weighing system is a question: How much force is being applied here? A load cell is the answer.
Load cells are force transducers that convert mechanical force into electrical signals, typically using strain gauge technology bonded to engineered metal elements. The fundamental principle involves strain gauges detecting microscopic deformation in the cell’s metal structure proportional to applied force, changing their electrical resistance.
This resistance change is measured in a Wheatstone bridge configuration, generating a millivolt output signal proportional to the applied load.
There are several types of load cells, each engineered for specific applications:
- Strain Gauge Load Cells: The most common type, converting strain from applied force into resistance changes. Reliable, precise and scalable for applications from 5 lbs to 500,000 lbs capacity.
- Hydraulic Load Cells: Great for rugged, explosion proof environments where electrical hazards exist. No electricity is needed at the sensing point, making them ideal for petroleum, chemical and hazardous material operations.
- Pneumatic Load Cells: Similar to hydraulic but use air pressure instead. Ideal when cleanliness or intrinsic safety is a concern, particularly in food processing and pharmaceutical applications.
- Capacitive Load Cells: Use changes in capacitance to measure deformation. Often used in smart or compact applications where space constraints and environmental factors would compromise other technologies.
- Piezoelectric Load Cells: Best for dynamic or fast-changing forces. Extremely sensitive with response times measured in microseconds rather than milliseconds.
Applications span industries — from batching in cement plants operating to tension control in hoisting equipment managing critical lifts, from truck scales to agricultural silos monitoring million-dollar grain inventories.
But regardless of type or industry, every load cell requires one critical component to complete the operational picture: a reliable, purpose-designed readout interface.
Understanding Load Cell Meters

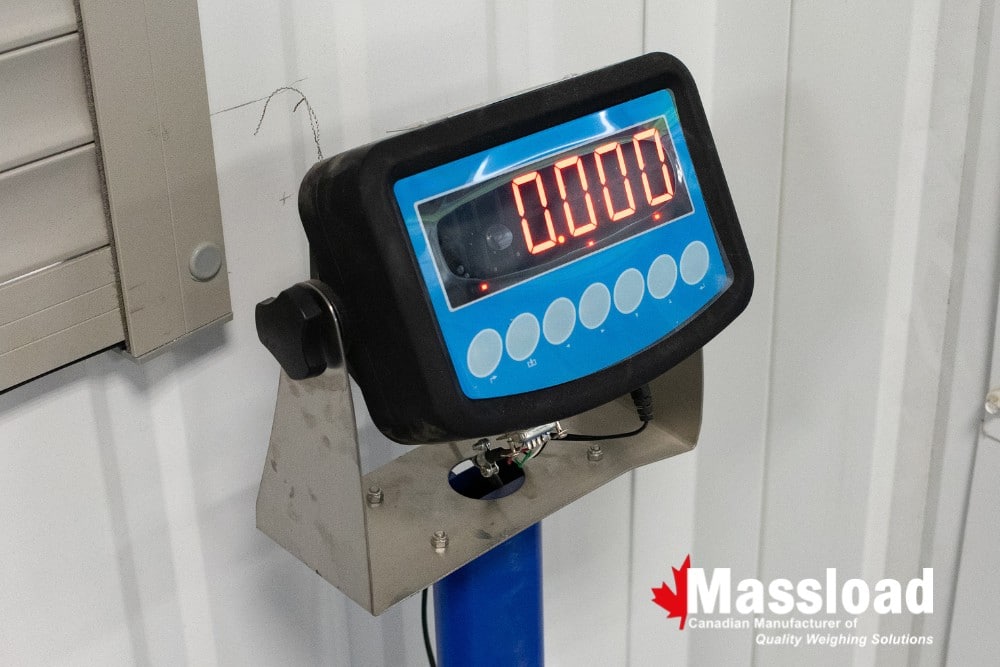

A load cell meter (also called a load cell indicator or load cell display) is the interpreter between physics and people. It takes that faint electrical whisper from a load cell and transforms it into a readable, meaningful value that directly impacts operational decisions.
The technical challenge arises when implementing these display technologies in industrial environments where:
- Operating temperatures can swing from -40°F in northern facilities to 120°F in southern summer conditions
- Constant vibration introduces signal noise and accelerates component fatigue
- Exposure to industrial dust containing abrasives degrades seals and cable entries
- Chemical exposure from process materials creates corrosion issues
- Electromagnetic interference from high-powered equipment corrupts measurement signals
- Shock loading from operational anomalies creates signals well beyond normal measurement ranges
Standard display units simply aren’t engineered for these conditions. Their sealing systems fail, their temperature compensation drifts, their input circuits degrade, and their structural elements develop fatigue cracks. The result? Erratic readings, progressive drift and eventual catastrophic failure—often at the worst possible moment operationally.
But modern load cell indicators offer far more than simple number displays. They incorporate real-time processing, multi-point alarms, comprehensive data logging and robust remote outputs.
They’re not passive screens—they’re command centers for control systems. Whether it’s a rugged industrial LED display on a truck scale capable of withstanding direct sunlight and monsoon rains or a panel-mount digital indicator in a manufacturing line experiencing constant vibration, the role of the meter remains consistent: tell the truth, clearly and quickly, regardless of environmental challenges.
Key Features and Specifications to Look For in a Load Cell Meter
When selecting a load cell meter for industrial applications, the technical specifications directly impact both operational efficiency and measurement reliability. Here’s what matters:
- Display: LED displays are high visibility (up to 40,000 lux) in bright conditions and wide viewing angles. LCD displays are detailed outputs with low power consumption (50-80% less) for battery operations.
- Input signal: Mining-grade meters must support the specific millivolt signal range of your load cell (often ~2mV/V or similar) with precision input circuits that can reject common mode noise up to 80dB.
- Outputs:
- Analog (e.g., 4-20 mA, 0-10V) to connect to PLCs or analog monitoring systems with isolation barriers up to 2500V
- Digital (e.g., RS232, RS485, Modbus) for communication with control systems up to 4000 feet with proper implementation
- Relay outputs for alarms or process triggers with contact ratings for direct control (typically 5-10A)
- Accuracy and resolution: Not all readings are created equal. Industrial operations require verification of both resolution (display to 1:10,000 or better) and accuracy (typically ±0.05% or better of applied load).
- Sampling rate: Faster sampling = quicker response. Important for dynamic weighing applications where capture rates of 50-200 samples per second impact operational throughput.
- Environmental specs:
- IP ratings (e.g., IP65, IP67) for dust and water resistance in environments where washdown procedures or environmental exposure would destroy consumer-grade electronics in days
- Temperature range, housing material and mounting design for the specific installation location rather than generic protection

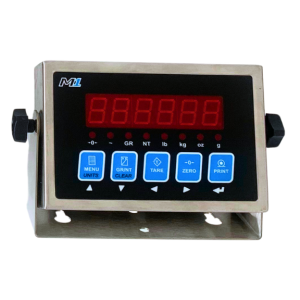

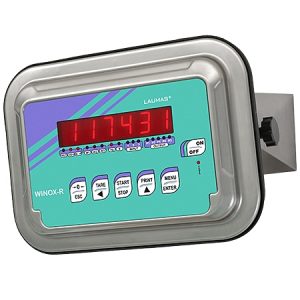

Massload’s load cell displays and indicators are designed with these environmental realities in mind—whether you’re reading a 75,000 lb axle load on a truck scale in harsh winter conditions or a few lbs on a tension link.
How to Select the Right Load Cell Meter for Your Needs
So how do you choose the right load cell indicator for your application? Start with these technical questions:
- What type of load cell are you using? Strain gauge cells need different input ranges than capacitive or piezoelectric sensors, with signal conditioning circuits matched to the transducer technology.
- Where is it going? Outdoor? Indoor line? Environmental exposure impacts housing requirements, IP protection and temperature compensation ranges that must be calibrated for your specific conditions.
- What does it need to do? Just show the number? Control a process? Trigger alarms? Transmit data remotely? The functionality requirements impact processor selection, memory and communication interface design.
- Who will be reading it? Operators 20 feet away? Supervisors reviewing multiple displays? Remote systems requiring continuous data streams? Display size, resolution and connectivity options must match these user requirements.
It’s also important to avoid these common mistakes that create measurement failures in industrial applications:
- Mismatched signal ranges (e.g., 0-10 V into a mV/V meter) that result in no reading or wildly inaccurate values
- Overlooking power supply requirements, especially in remote locations where power quality can introduce measurement errors of 5-10%
- Ignoring display visibility in your specific lighting conditions, resulting in operator errors during critical operations
- Assuming all meters are plug-and-play—most require calibration procedures specific to your application for accuracy verification within ±0.1% or better
Massload offers load cell meters with rapid delivery, Canadian-built to exceed general industrial standards and full integration support with your existing weighing system—new installation or retrofit of failing equipment.
If your application involves managing more than one load cell at a time, you may want to consider a controller rather than just a display meter. Here’s a guide on managing multiple load cells through one controller.
Why Reliable Load Cell Displays Are a Must
Choosing the right load cell display isn’t about buying the most expensive screen with unnecessary features. It’s about getting the precise measurement interface that gives your team operational clarity.
The one that makes your process more reliable, your results more consistent and your measurement data unquestionable.
Because when a number matters—when it controls a material gate handling 40 tons per hour, signals an overload condition on a $2 million lifting system or verifies a shipment worth tens of thousands of dollars—you don’t want a maybe. You want absolute confidence.
And that confidence comes from seeing the signal clearly, regardless of environmental conditions, operational variables or application challenges.
