Mining

Mining truck scales represent specialized weighing systems engineered specifically for the extreme demands of mining operations, distinguished from standard commercial vehicle scales by several key characteristics:

• Enhanced Capacity: Mining truck scales support vehicles weighing hundreds of thousands of pounds, with reinforced structures and specialized load cells designed for concentrated wheel loads far exceeding standard commercial requirements.
• Environmental Durability: These systems maintain measurement accuracy despite extreme conditions including temperature variations, dust exposure, vibration, and occasional impact loading common in mining environments.
• Operational Efficiency: Mining-specific features like expanded platforms, specialized approach designs, and optimized electronics minimize weighing time while maximizing throughput in high-volume material movement operations.
• Integration Capability: Advanced systems connect directly with mine management software, providing real-time production data, vehicle tracking, and material movement documentation without manual recording or transcription.

Unlike standard commercial truck scales designed primarily for highway weight verification, mining truck scales function as critical operational tools that directly impact production efficiency, equipment utilization, and process control throughout mining operations. They provide essential data for inventory management, production verification, equipment maintenance scheduling, and regulatory compliance.

The load cells that form the foundation of these scales utilize specialized strain gauge technology to convert mechanical force into electrical signals, with mining-grade systems incorporating reinforced sensing elements, enhanced environmental protection, and signal conditioning optimized for the challenging electrical environments of mining operations.

The concept of a “standard” mining truck scale varies significantly based on operational requirements, site conditions, and specific vehicle characteristics. However, certain common configurations have emerged to address the typical needs of mining operations:

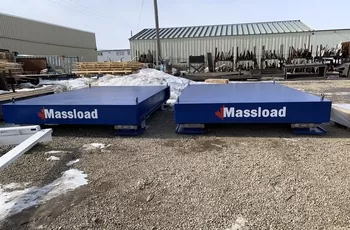

• Platform Dimensions: Mining truck scales generally range from 8 to 10 feet in length and 14 feet in width, accommodating the massive dimensions of mining haul trucks while providing sufficient space for proper wheel positioning during weighing.
• Capacity Ratings: Standard mining scales typically support axle capacities over 400 tons for gross vehicle weight over 600 tons, with structural elements and load cells sized appropriately for these extreme loads plus safety factors for occasional overloading or impact forces.
• Construction Methodology: Most mining scales utilize either steel deck designs for portability and installation flexibility, or concrete deck structures for permanent installations requiring maximum durability and minimal maintenance.

These standard configurations address the general requirements of surface mining operations, while specialized systems for underground applications typically feature reduced dimensions, different construction methods, and enhanced protection against the specific environmental challenges of underground environments.

The differences between aboveground (open-pit) and underground mining operations create distinct weighing requirements:

Surface Mining applications typically involve:

• Larger vehicles with higher capacities
• Greater space availability for scale installation
• Exposure to weather extremes and direct sunlight
• Higher weighing throughput requirements

Underground Mining applications must address:

• Space constraints limiting scale dimensions
• Load cells (load pins & tension links) used as wire rope attachments and sheave loading in hoisting configurations
• Moisture and corrosion concerns
• Specialized vehicles with different weight distributions
• Safety-critical weighing requirements for shaft loading

Massload Technologies offers weighing solutions engineered for both environments, with features and specifications optimized for the specific challenges each presents.

Implementing properly engineered truck scales delivers significant operational advantages for Texas mining operations:

• Production Optimization: Accurate weight measurement ensures optimal loading of transport vehicles, maximizing material movement efficiency while preventing costly overloading that damages equipment and creates safety hazards. It also prevents lost time due to turnaround and dumping when overloaded.
• Inventory Management: Precise tracking of material movement provides real-time inventory visibility, supporting production planning, resource allocation, and financial reporting with documented weight verification.
• Equipment Protection: Preventing vehicle overloading through accurate weight monitoring extends equipment life, reduces maintenance costs, and minimizes unplanned downtime from mechanical failures caused by excessive loads.
• Regulatory Compliance: For operations with off-site material transportation, documented weight verification ensures compliance with highway weight restrictions, preventing costly violations and associated operational delays.
• Process Control: Weight-based production data enables precise monitoring of extraction rates, processing efficiency, and material recovery, supporting continuous improvement initiatives across mining operations.

Massload’s mining truck scales deliver these benefits through superior engineering that addresses the specific challenges of mining environments. Our systems combine precision measurement capability with the durability required for continuous operation in harsh conditions, maintaining accuracy despite dust exposure, temperature extremes, and heavy usage characteristic of mining applications.

The load monitoring capabilities of these systems transform basic weight data into actionable operational intelligence, supporting data-driven decision making throughout mining operations from extraction planning through processing and shipment verification.

Mining operations require different scale configurations based on specific operational requirements, site conditions, and material handling processes:

• In-Ground Permanent Scales: Pit-installed systems with the weighing platform at ground level, eliminating the need for ramps while providing maximum structural stability. These systems excel in high-volume permanent installations where weighing forms a central part of material handling processes.
• Above-Ground Modular Scales: Surface-mounted systems with approach ramps, offering installation flexibility without requiring extensive foundation work. These scales balance performance with mobility, making them suitable for operations with evolving site layouts or medium-term deployment requirements.
• Portable Axle Scales: Lightweight, transportable systems that weigh vehicles one axle at a time, providing weight verification at multiple locations without permanent infrastructure. These portable truck scales deliver essential weighing capability at remote sites, exploration operations, or locations with limited space for full-length scales.
• On-Board Weighing Systems: Integrated weighing technology installed directly on loading equipment, providing real-time weight monitoring during the loading process. These systems optimize bucket fills, prevent overloading, and track material movement without requiring separate weighing operations.
• Loader Scales: Specialized systems installed on front-end loaders and excavators that provide bucket-by-bucket weight measurement during loading operations. These scales improve loading accuracy, prevent truck overloading, and track material movement with minimal operational disruption.

Each scale type addresses specific operational needs within mining applications, from high-volume primary scales at processing facilities to portable systems supporting exploration operations or secondary sites. The selection depends on factors including weighing volume, accuracy requirements, site constraints, and integration needs with existing operations and management systems.

Texas mining operations benefit from this range of options to implement weighing capabilities that match their specific operational requirements while delivering the accuracy and reliability essential for efficient material management.

Underground mining operations present unique force measurement challenges where safety and reliability are paramount. Massload Technologies specializes in custom-engineered load cells for critical hoisting and lifting applications that form the backbone of underground mining operations:

Tension Links for Mine Shaft Hoisting: Our custom tension links monitor wire rope loads in real-time, providing critical safety data for cage and skip hoisting operations. These specialized force transducers feature:

• Capacities for various hoisting requirements
• Enhanced fatigue resistance for continuous operation under cyclical loading
• Environmental sealing designed specifically for the high-moisture, corrosive environment of underground operations
• Multiple output options including 4-20mA, wireless, and direct PLC integration for centralized monitoring

Custom Load Pins for Sheave Monitoring: Critical for headframe operations and underground installations, our load pins directly replace existing structural pins while adding measurement capability without compromising mechanical integrity. These precision-engineered components offer:

• Exact dimensional replacement for existing pins, minimizing modification requirements
• Internal strain gauge configurations optimized for the specific loading patterns of sheave applications
• 17-4PH stainless steel construction for superior fatigue life and corrosion resistance
• Specialized signal conditioning that maintains measurement accuracy despite the electrical noise inherent in hoisting operations

Mine Galloway Suspension Monitoring: For shaft sinking operations, our specialized tension links and load pins provide continuous monitoring of work-stage suspension systems, enhancing safety while supporting optimal loading practices. These systems include:

• Multi-point measurement for suspension rope load balancing
• Wireless data transmission eliminating vulnerable cable connections
• Real-time monitoring with programmable alarm thresholds
• Historical data logging for operational analysis and safety verification

Our underground lifting and hoisting load cells undergo rigorous testing beyond standard protocols, with specific focus on the environmental challenges and safety requirements of underground applications. Every system includes comprehensive documentation supporting mine safety programs and regulatory compliance requirements.

Underground vehicle weighing represents a particular specialty for Massload Technologies, addressing the unique challenges of confined spaces, specialized equipment designs, and critical loading limitations in underground operations:

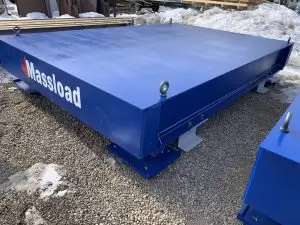

Underground Vehicle Axle Scales: Our compact, low-profile axle scale platforms are specifically designed for the dimensional constraints and operational requirements of underground mining environments:

• Rugged platforms withstanding the harsh conditions of underground roadways
• Compact design for deployment in space-constrained underground workings
• High-visibility displays readable in limited lighting conditions
• Rapid setup and teardown for mobile deployment throughout underground operations
• Data capture options including wireless transmission to central monitoring systems

Loading Optimization for Underground Utility Vehicles: Specialized weighing solutions for LHDs, utility trucks, and personnel carriers ensure proper loading within the strict safety parameters of underground operations:

• Prevents overloading that increases equipment wear in challenging underground conditions
• Ensures compliance with underground roadway and ramp design limitations
• Optimizes material transport efficiency in constrained underground routes
• Supports maintenance scheduling based on actual payload history rather than estimated load cycles

Ventilation Shaft Component Weighing: Precision force measurement for critical ventilation infrastructure during installation and maintenance operations:

• Custom tension links for fan suspension systems
• Load pins for damper mechanism monitoring
• Specialized wireless systems eliminating electromagnetic interference with ventilation control systems

These underground vehicle weighing solutions combine our core engineering expertise with specific adaptations for the unique challenges of underground environments. Each system maintains measurement accuracy despite exposure to water, dust, and the constant vibration characteristic of underground operations.

With deployment experience in mines throughout North America, Massload’s underground weighing solutions have proven their reliability in some of the most demanding measurement environments in the industrial world—delivering consistent performance where conventional systems rapidly deteriorate.

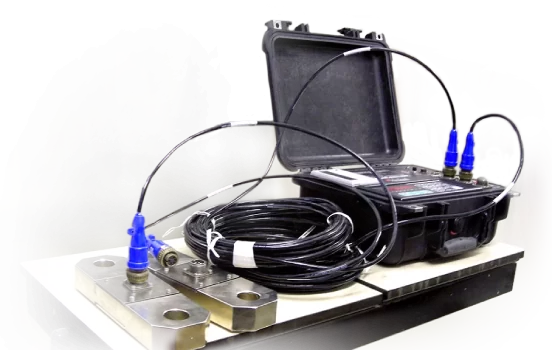

The performance of mining truck scales depends directly on proper installation and regular calibration to maintain measurement accuracy despite harsh operating conditions:

• Site Evaluation and Preparation: Massload can assist with site assessment for axle scales type.
• Calibration: Massload axle scale platforms (wheel scales) come pre-calibrated from the factory.
• Advanced Software: Massload has advanced scale software to capture individual wheel weight, gross vehicle weight and database integration to management software.

Massload works with local scale installers to ensure accurate system installation and verified operation. Our calibration services maintain measurement accuracy throughout the scale lifecycle, with regular verification using traceable reference standards to ensure consistent performance despite the accumulated effects of continuous usage, environmental exposure, and normal wear. These services include:

• Scheduled preventive maintenance to identify and address potential issues before they affect performance
• Regular calibration verification with certified test weights
• Adjustment of electronic parameters to maintain accuracy across the operating range
• Comprehensive documentation to support quality systems and regulatory compliance

This proactive approach maximizes scale reliability while minimizing unplanned downtime that could impact mining operations, ensuring continuous availability of critical weighing capabilities.

The investment in mining truck scales involves several components beyond the basic equipment cost, with total implementation typically ranging from $50,000 to $200,000 depending on scale type, capacity, and installation requirements:

• Base Scale System: Equipment costs generally range from $35,000 to $150,000 for mining-grade truck scales, depending on platform size, capacity rating, and specific features required for particular applications.
• Site Preparation: Foundation requirements represent significant costs, typically ranging from $15,000 to $50,000 depending on soil conditions, drainage needs, and approach construction requirements.
• Installation and Commissioning: Professional installation services generally add $10,000 to $25,000 to total implementation costs, including equipment assembly, alignment, calibration, and initial testing.
• Integration and Peripherals: Additional components like remote displays, data management systems, traffic control equipment, and software integration can add $5,000 to $20,000 to complete system costs.

While these investments may seem substantial, the return on investment for mining operations typically presents a compelling business case through several value channels:

• Prevented Equipment Damage: Accurate loading prevents costly repairs and premature replacement of mining trucks and loading equipment, with potential savings of hundreds of thousands of dollars in maintenance and capital costs.
• Optimized Material Movement: Proper loading ensures maximum utilization of transport capacity without overloading, return and dumping, improving operational efficiency while reducing per-ton movement costs.
• Reduced Compliance Risks: For operations transporting material on public roads, preventing overloading eliminates costly fines, operational delays, and potential legal complications from weight violations.
• Enhanced Inventory Control: Accurate material tracking improves production planning, resource allocation, and financial reporting, reducing stockpile discrepancies and associated financial impacts.

Most mining operations achieve complete return on investment within months through these operational improvements, with the scales continuing to deliver value for many years beyond this initial recovery period.
