How do you find a load cell that performs as well in the field as it does on paper?
Before those delicate millivolt signals ever reach your display, the sensor faces its first real test: not force, but the environment. Rain. Dust. Steam. Heat. Every worksite asks the same question: “Can your load cell handle this?”
That’s where the IP rating comes in. Short for Ingress Protection, it’s the code that reveals how well a sensor is sealed against solids like dust and debris, and liquids like rain, spray, or even full immersion. Defined by IEC 60529, the IP system turns environmental chaos into engineering clarity, so you can match the right sensor to the right conditions.
In other words, the IP rating is the difference between a sensor that performs perfectly in the lab and one that performs reliably in the mud.
Keep reading to learn how this classification works and why it might be the most underrated spec on your next load cell.
What Are Load Cell IP Ratings?
An IP rating or Ingress Protection tells you how well a load cell is sealed against two things:
- Solids (dust, debris)
- Liquids (water, spray, submertion)
IEC 60529 is the formal standard behind the code.
Why It Matters for Load Cells
Load cells live tough lives, they sit under trucks, tanks, or silos, surrounded by mud, heat, and vibration.
The IP rating is your way of knowing whether the sensor will survive the real world.
The Format of IP Codes

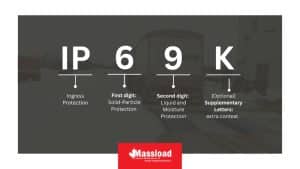

An IP marking looks like this: IP XY or sometimes IP XYK
- X = protection level from solids / particles (0–6)
- Y = protection level from liquids / moisture (0–9, sometimes 9K)
If one digit is X, it means “not specified / not tested” in that domain
Adding a K (e.g. IP69K) indicates extra ruggedness, especially toward high-pressure, high-temperature washdown conditions.
First Digit: Solid-Particle Protection
Here’s what the first digit means, in descending order of severity:
| Digit | What It Blocks / Allows | Real-World Interpretation |
| 0 | No protection | No guarantee against any solids |
| 1 | ≥ 50 mm objects (e.g., a hand) | Big stuff is blocked, fine stuff may enter |
| 2 | ≥ 12.5 mm (e.g., finger) | Basic protection vs. fingers, tools |
| 3 | ≥ 2.5 mm (e.g., screws, wires) | Prevents medium debris ingress |
| 4 | ≥ 1 mm (thin wires, small shards) | Blocks small bits, but not ultra-fine dust |
| 5 | Limited dust ingress allowed (won’t block operation) | Some dust might enter but not impair function |
| 6 | Dust-tight, no ingress | Full protection vs. particulate matter |
A load cell rated “6” on the first digit means it’s essentially dust-immune under correct installation.
Second Digit: Liquid and Moisture Protection
This is where things get interesting. Here’s how the second digit works:
| Digit | What It Withstands | Example / Interpretation |
| 0 | No protection | Expect failure if any moisture contacts it |
| 1 | Vertical drips/condensation | Gentle moisture from above only |
| 2 | Vertically falling water when tilted ≤ 15° | Slight angle exposure |
| 3 | Spray up to 60° from vertical | Rain, overhead spray scenarios |
| 4 | Water splashing from all directions | Random splashes |
| 5 | Low-pressure jets | Hose, moderate spray |
| 6 | Powerful water jets | Stronger washdowns |
| 7 | Temporary immersion up to 1 m (typically 30 min) | Short, shallow submersion |
| 8 | Prolonged immersion under specified conditions | Long-term underwater or submerged use |
| 9K | High-pressure, high-temperature wash down | Sterile/harsh wash environments (food, pharma) |
So a load cell rated IP67 is dust-tight and can survive brief immersion (e.g., being submerged in shallow water temporarily).
A rating of IP68 takes it further, tolerating continuous immersion under defined conditions.
IP69K is in a league of its own: built for extreme washdown use.
Optional Alpha Characters in IP Ratings
When you see something like IP67M or IP66C, that trailing letter isn’t random. It gives extra context about how the test was done or what the protection applies to.
There are actually two types of optional letters in IEC 60529:
- Supplementary letters (A, B, C, D) — protection against contact
- Additional letters (F, H, M, S, W) — extra conditions or test specifics
Let’s decode both.
Supplementary Letters: Contact Protection
These letters describe how well the enclosure protects against accidental touching of live or moving parts inside the device.
| Letter | Meaning | Real-world example |
| A | Protected against back of hand | A large open housing that stops a hand but not small tools |
| B | Protected against fingers | You can’t stick a finger in, but maybe a screwdriver |
| C | Protected against tools and wires (≥ 2.5 mm) | Common in small electronics or test gear |
| D | Protected against fine tools or wires (≥ 1 mm) | Tightest contact protection level |
These are rarely listed for load cells, because the devices are sealed and have no exposed moving or live parts. But you might see them in instrument housings or junction boxes.
Additional Letters: Test or Environmental Conditions
Now for the practical engineering side. These are the ones you’ll sometimes see in load cell datasheets or enclosure specs.
| Letter | What It Indicates | Application to Load Cells |
| F | Oil-resistant | For sensors used in lubricated or oily environments |
| H | High-voltage device | Not common for strain-gauge sensors |
| M | Tested for water ingress while in motion | Useful for dynamic or rotating applications |
| S | Tested for water ingress while stationary | Typical for static load cell sealing tests |
| W | Weather-resistant | For outdoor installations, long-term weather exposure |
How to Match Load Cell IP Ratings to Your Environment
Here’s a quick field guide:
| IP Rating | Typical Application | What It Protects Against |
| IP65 | Indoor, light spray | Dust, occasional water jets |
| IP66 | Outdoor, wash zones | Stronger water jets, heavy spray |
| IP67 | Harsh weather, wet floors | Temporary submersion, storms |
| IP68 | Fully immersed setups | Tanks, submerged hoppers, floods |
| IP69K | Sanitary, food / pharmaceutical | High-temperature, high-pressure washdowns |
Many scale and lab equipment manufacturers use IP65-rated enclosures combined with internal load cells rated at IP67 to balance protection and cost.
Additionally, load cell spec sheets often include terms like “sealed,” “welded,” or “environmentally sealed,” which indicate enhanced protection and help reinforce the IP rating.
Your Step-by-Step Path to the Perfect Load Cell IP Rating
Here’s a recommended decision flow:
1. Map the environment
- Will it see dust, dirt, fine powders?
- Will it see water spray, full washdown, or immersion?
2. Decide the worst-case water exposure
- Just splash or hose jets? → IP65 / IP66
- Occasional submersion? → IP67
- Continuous immersion? → IP68
- Aggressive washdown with heat/pressure? → IP69K
3. Check all components
- Ensure cable glands, junction boxes, and sensor housings all meet or exceed your target rating.
- Use gaskets, sealants and design features (e.g. drip edges, slopes) to shed water.
4. Include margin
- Overspec rather than under-spec (go one level higher when cost permits).
- Plan for seal degradation over time.
5. Specify in procurement/contracts
- Be explicit: e.g. “Load cell rated ≥ IP67, cable gland rated ≥ IP68, all surfaces to be welded/weld-sealed”
- Request test certifications or IP test reports.
Practical Design & Reliability Notes
The system is only as good as its weakest seal. Even an IP69K-rated load cell can fail if its cable gland is leaky or the o-ring is degraded. Always watch for:
- Cable entry and gland seals
- Gaskets, o-rings, mating surfaces
- Potting/encapsulation quality
- Aging, UV, temperature cycles
- Chemicals or solvents that degrade seals
- Mechanical stress that might crack the housing
A standard technique is to periodically validate the load cell’s zero reading, check for drift or anomalous behavior, and inspect for moisture inside junction boxes.
Engineer’s Note
An IP rating doesn’t mean invincible. It means tested. Even the best-sealed load cell can fail if cables are poorly terminated, gaskets wear out, or installation points trap water. Think of the IP rating as a promise, one that’s only as strong as your system’s weakest seal.
Make Every Load Cell Count from IP Rating to Installation
An IP rating doesn’t make a load cell indestructible; it makes it predictable. It’s the engineer’s shorthand for trust: a way to know how far you can push a device before the environment pushes back.
But here’s the quiet truth every designer learns sooner or later: protection is never just about the number on a datasheet. It’s about how the system is installed, maintained, and respected over time. Seal it right. Mount it smart. Inspect it often.
Do that and your IP67 or IP69K load cell won’t just survive tough conditions, it’ll make accuracy look easy.
