100 Single-Ended Shear Beam Load Cell Transducer
This single ended load cell can be used as the weigh sensor in a variety of applications including floor scales, blenders, hoppers, tank scales, and platform sensors. Point loading can take place via load cell assemblies or via free floating feet (see options).
Highlights
- High quality Canadian-made load cell manufactured in Canada’s only VCAP (Verified Conformity Assessment Program) certified load cell manufacturing facility
- Precision single-beam load cell for use in non legal-for-trade applications
- 4340 Alloy Steel or 17-4PH Stainless Steel
- Used in tank and hopper batch weighing scales
- Point loaded with weigh modules or free floating feet
- 2 year warranty
- Optional imported NTEP approved load cells for use in legal-for-trade applications
| Capacity (Pounds) |
A (mm) |
B (mm) |
C (mm) |
D | E (mm) |
F (mm) |
G (mm) |
H (mm) |
|---|---|---|---|---|---|---|---|---|
| 500 | 16 | 25 | 76 | 20 UNF | 130 | 25.4 | 38 | 13 |
| 1,000 | 16 | 25 | 76 | 20 UNF | 130 | 32 | 38 | 13 |
| 2,500 | 16 | 25 | 76 | 20 UNF | 130 | 32 | 38 | 13 |
| 4,000 | 16 | 25 | 76 | 20 UNF | 130 | 32 | 38 | 13 |
| 5,000 Sm | 16 | 25 | 76 | 20 UNF | 130 | 32 | 38 | 13 |
| 5,000 Lg | 19 | 38 | 95 | 16 UNF | 171 | 38 | 44 | 20 |
| 10,000 | 19 | 38 | 95 | 16 UNF | 171 | 38 | 44 | 20 |
| 20,000 | 25 | 51 | 121 | 14 UNF | 222 | 51 | 51 | 26 |
Product Details
100 Single-Ended Shear Beam
A shear beam load cell is a type of transducer designed to measure force or weight by detecting the shear stress generated within the structure of the load cell itself.
The 100 Single-Ended Shear Beam Load Cell serves as a high-quality weigh sensor suitable for a myriad of applications.
Its versatility allows for point loading through load cell assemblies or free-floating feet options, making it an ideal choice for various setups.
Images
PRODUCT SPECIFICATIONS
| Capacities (pounds) | 500 lbs to 20,000 lbs |
|---|---|
| Safe Overload | 150% full scale safe overload |
| Ultimate Overload | 300% full scale ultimate overload |
| Full Scale Ouput | 3 mV/V +/- 0.25% FS |
| Maximum Excitation | 10 volts DC |
| Operating Temp | -40°C to +80°C |
| Compensated Temp | -10°C to +40°C |
| Sealing Standard | IP-67 protected against high pressure jets of water |
| Non Linearity | +/- 0.05% to +/- 0.1% full scale |
| Material | 4340 High Strength Alloy Steel |
| Protective Coating | Electro-less nickel – industrial high phosphorous, corrosion and chip resistant |
| Bridge Resistance | 350 Ohm |
IMPORTED NTEP LOAD CELL
Massload offers a full range of imported NTEP approved load cells with 1 year warranty for legal-for-trade applications.
HOPPER LOAD CELL WEIGH MODULE

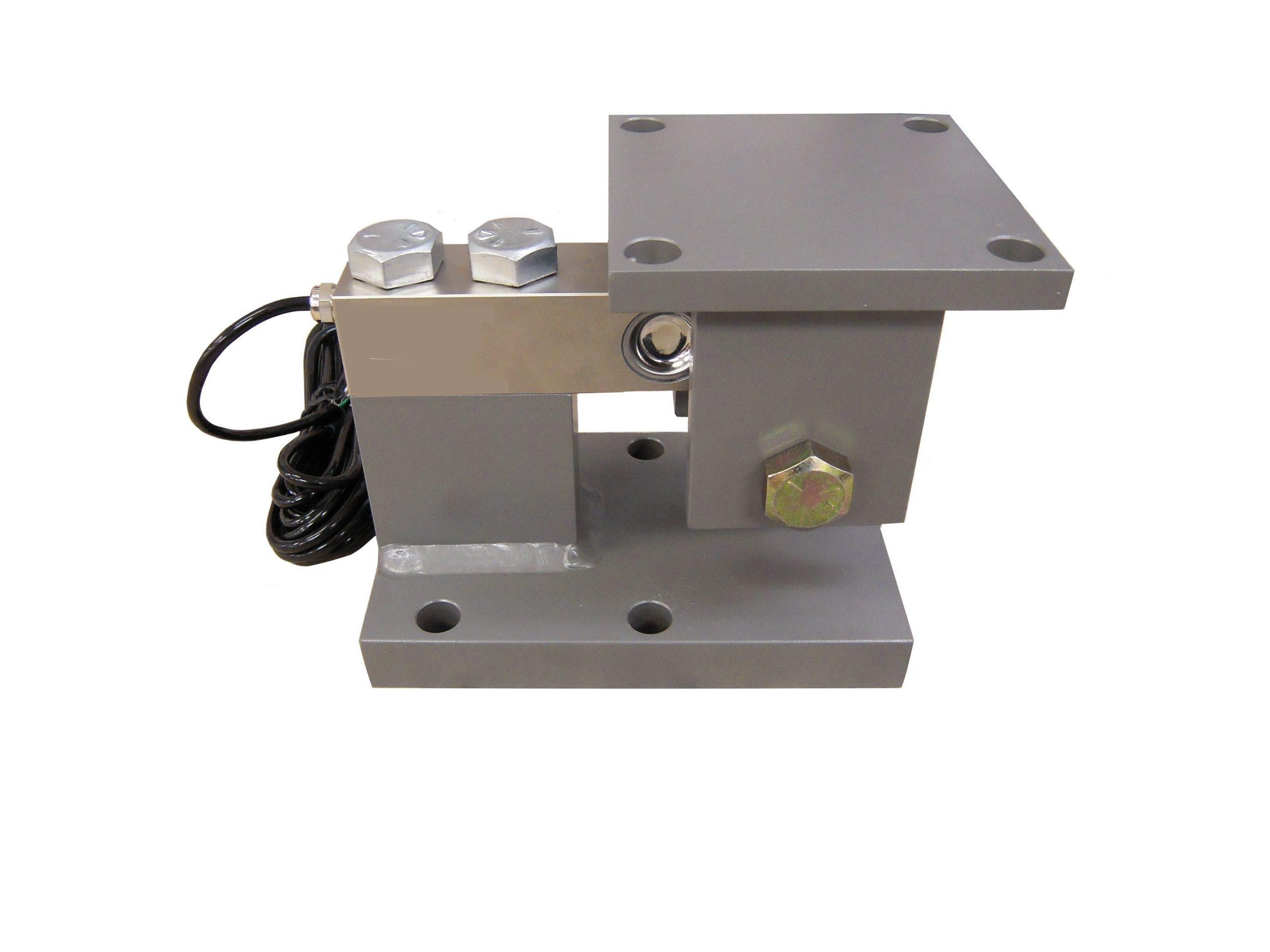

TWA-10010 Weigh Module is ideal for point loading our single beam load cells. Fully manufactured in Canada with a rugged industrial powder coat finish.
FREE FLOATING FOOT
The free floating foot contains a ball bearing that can adjust to slight variances in the foundation. The height of the load cell can also be adjusted by tightening or loosening the base nut while the top jam nut locks the foot in place. These features give you maximum flexibility in leveling the scale which is critical in getting the highest degree of accuracy . Feet can be used instead of assemblies if you need a lower profile and if the top plate where the load cell mounts is very structurally sound.
