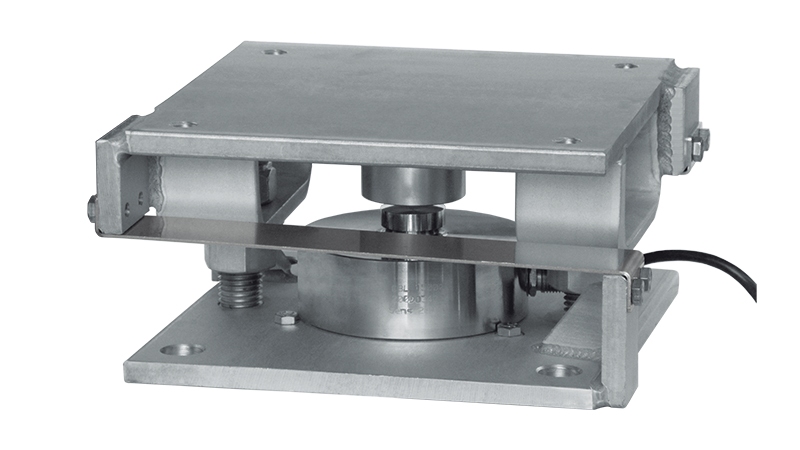

Z15000 / Z30000 / Z100000 Mounting Kit for Compression Low-Profile Load Cells
The Laumas Z15000, Z30000, and Z100000 are galvanized S355JR structural steel mounting kits for compression low-profile load cells (CBL, CBX, CX series), supporting up to 30,000 kg (66,139 lb), 50,000 kg (110,231 lb), and 100,000 kg (220,462 lb) respectively. They feature AISI 304 stainless steel lateral laminas, anti-tilt threaded rods, and a construction-safe installation process.
PRODUCT DETAILS
The Z15000, Z30000, and Z100000 are large-capacity mounting kits for low-profile compression load cells in the heaviest industrial weighing applications. The Z15000 supports up to 30,000 kg (66,139 lb), the Z30000 up to 50,000 kg (110,231 lb), and the Z100000 up to 100,000 kg (220,462 lb). Upper and lower plates are galvanized S355JR structural steel — providing a cost-effective alternative to full stainless kits for standard industrial environments — while the horizontal constraint laminas are AISI 304 stainless steel. Anti-tilt threaded rods with self-locking nuts provide stability against tipping under wind, vibration, and seismic loads.
Installation uses a placeholder pipe during construction to protect the load cell from heat, vibration, and debris, with the actual cell inserted only after all work is complete. Optional stainless shims, adapters, and turnbuckle accessories are available for fine-tuning lateral constraints and height adjustment.
Most Common Applications: Very large industrial silos and bulk storage tanks, heavy-duty process vessel weighing, large platform and floor scales, outdoor bulk material weighing structures.
| Capacities | Z15000: up to 30,000 kg (66,139 lb); Z30000: up to 50,000 kg (110,231 lb); Z100000: up to 100,000 kg (220,462 lb) |
|---|---|
| Material | Galvanized S355JR Construction Steel (plates), AISI 304 Stainless Steel (laminas) |
- Datasheet
- Technical Drawings - ADAT100
- Technical Drawings - ADAT126
- Technical Drawings - ADAT165
- Technical Drawings - SPVZ151
- Technical Drawings - SPVZ152
- Technical Drawings - SPVZ301
- Technical Drawings - SPVZ302
- Technical Drawings - SPVZ1001
- Technical Drawings - SPVZ1002
- Technical Drawings - SPVZ1505
- Technical Drawings - SPVZ3005
- Technical Drawings - SPVZ10005
- Technical Drawings - Z15000
- Technical Drawings - Z30000
- Technical Drawings - Z100000
