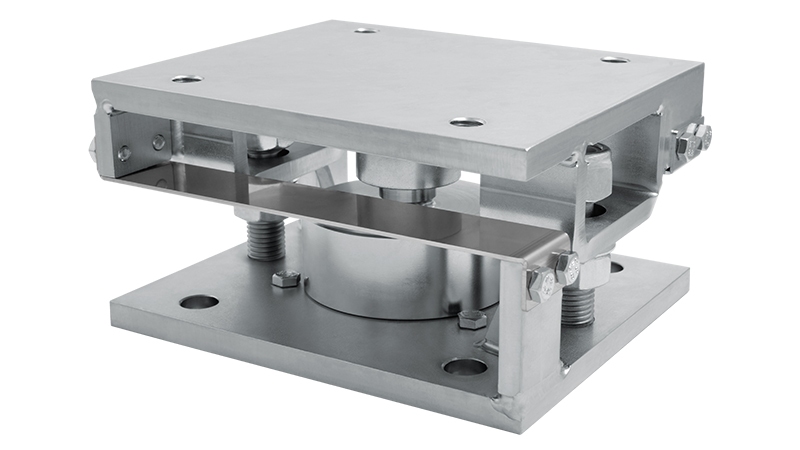

Z10000 Mounting Kit for Compression Low-Profile Load Cells
The Laumas Z10000 is a galvanized S355JR structural steel construction mounting kit for compression low-profile load cells (CBL, CBX, CX series), supporting up to 15,000 kg (33,069 lb). It features AISI 304 stainless steel laminas for lateral force resistance and anti-tilt threaded rods.
PRODUCT DETAILS
The Z10000 is a heavy-duty mounting kit for low-profile compression load cells at capacities up to 15,000 kg (33,069 lb). Upper and lower plates are galvanized S355JR structural construction steel for robust, cost-effective performance in standard industrial environments, while the horizontal constraint laminas are AISI 304 stainless steel for long-term corrosion resistance. Anti-tilt threaded rods with self-locking nuts provide structural stability against tipping under vibration, wind, and seismic conditions.
The installation follows the same construction-safe procedure as the V-series kits: the system is first built with a placeholder pipe in place of the load cell, then the actual cell is inserted once all construction and finishing work is complete. Stainless steel shims are available for fine height adjustment after installation. Designed for silos, tanks, mixing machines, hoppers subject to vibrations because of parts in motion.
Most Common Applications: Large industrial tank and silo weighing, heavy platform and floor scale installations, process vessel weighing.
| Capacities | Up to 15,000 kg (33,069 lb) |
|---|---|
| Material | Galvanized S355JR Construction Steel (plates), AISI 304 Stainless Steel (laminas) |
