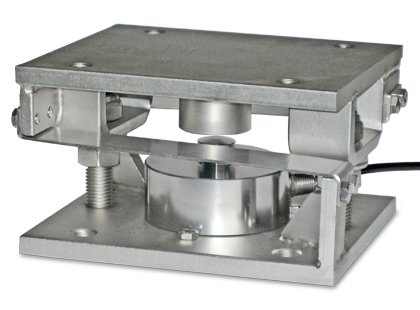

V10000 / V10275 Mounting Kit for Compression Low-Profile Load Cells

IMAGES

The Laumas V10000 and V10275 are AISI 304 stainless steel mounting kits for compression low-profile load cells (CBL, CBX, CX series), supporting up to 15,000 kg (33,069 lb). They feature stainless steel construction, anti-tilt threaded rods, and are suitable for 3- or 4-point support weighing structures.

PRODUCT DETAILS

The V10000 and V10275 are heavy-duty stainless steel mounting kits for low-profile compression load cells in high-capacity weighing applications up to 15,000 kg (33,069 lb) per support point. Both upper and lower plates are AISI 304 stainless steel; the V10275 features a different lower plate footprint for broader support surface compatibility. AISI 304 stainless steel laminas provide support against lateral forces, while two threaded rods with self-locking nuts prevent the structure from tipping.

The kits are suitable for use in structures prone to vibration due to parts in motion.

Most Common Applications: Large industrial tank and silo weighing, heavy-duty platform scales, process vessel and hopper scales, outdoor high-capacity weighing structures.

Capacities

V10000: up to 15,000 kg (33,069 lb); V10275: up to 15,000 kg (33,069 lb)

Material

AISI 304 Stainless Steel
