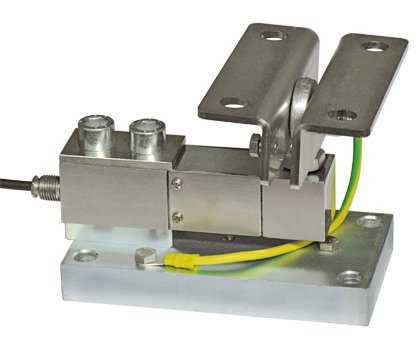

The Laumas TFPS2000 is a compact mounting kit for shear beam load cells (FTK, FTKL, FTP, FT-P, FTZ series) supporting up to 2,000 kg (4,409 lb). The TFPS2000 lower plate and block are made of C40 galvanized steel, with top plate made of AISI304 stainless steel. This weigh module features a ball-and-socket joint, adjustable height, and a transport locking screw. Also comes fully in AISI 304 stainless steel (TFPS2000INOX).
The TFPS2000 is a purpose-designed mounting kit for shear beam load cells in light-to-medium industrial weighing systems prone to vibrations because of parts in motion.
Features a ball-and-socket joint that provides protection from lateral forces and tilt protection, with structural misalignment compensation and adjustable height for field leveling. A locking screw protects the load cell during transport and installation — once the structure is set, it is released from contact with the cell for normal operation. This kit is optimally suited for 3- or 4-point support weighing structures.
Most Common Applications: Platform scales, conveyor scales, small tanks and vessels, process hoppers, food production scales prone to vibration.
| Capacities | Up to 2,000 kg (4,409 lb) |
|---|---|
| Material | TFPS2000: Galvanized Steel (lower/block), AISI 304 SS (upper); TFPS2000INOX: AISI 304 SS |
