T24-BSx Base Station

IMAGES

The Mantracourt T24-BSx Wireless Base Station is the interface between T24 modules and a PC for configuring, calibrating, and collecting data over distances up to 800 m (2,625 ft). The T24-BSu, T24BSue, and T24-BSd connect via plug-and-play USB, while the T24-BSi adds RS232 and RS485 industrial interfaces for PLC and serial integration.

PRODUCT DETAILS

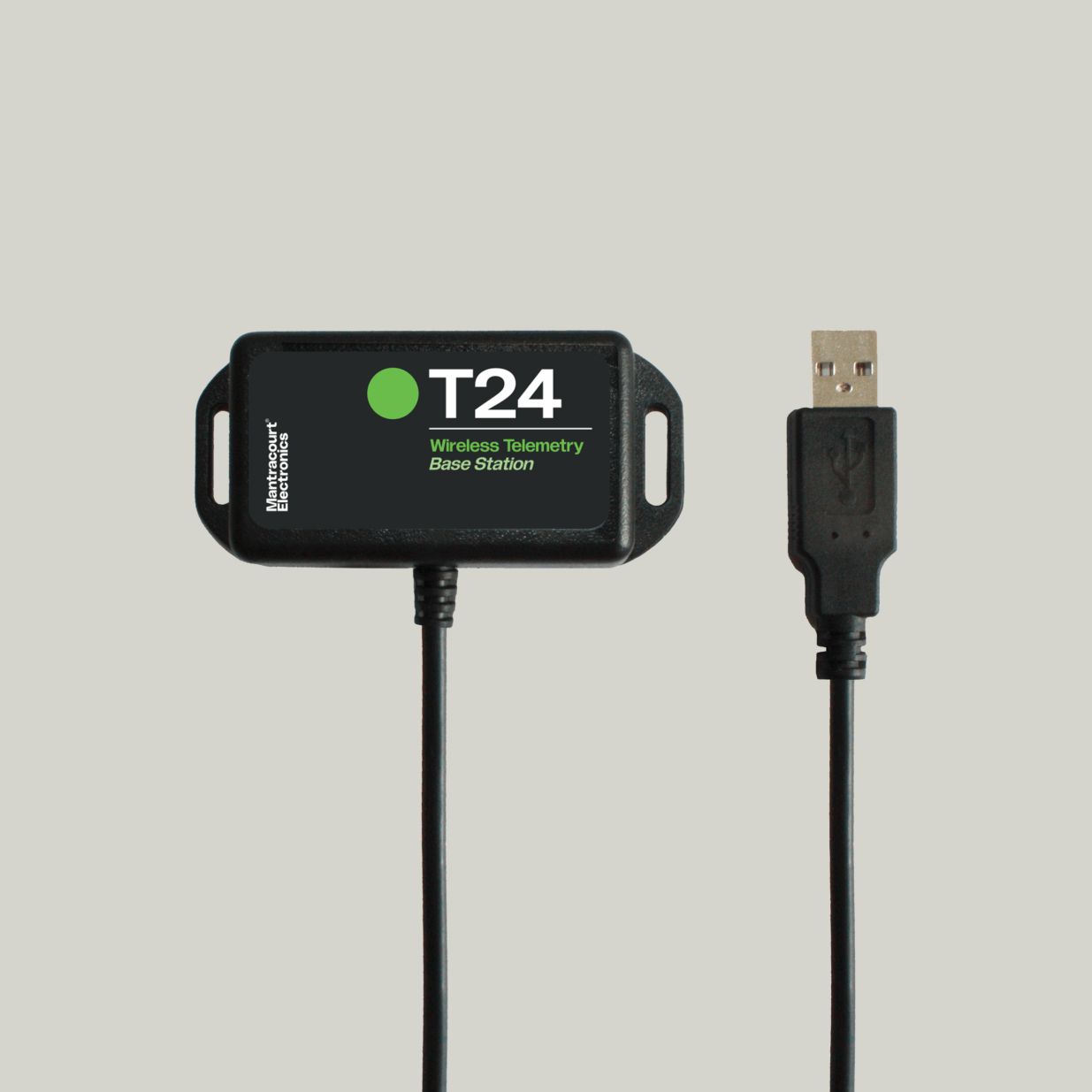

The T24-BSu is enclosed in an IP50 non-weatherproof enclosure ideal for indoor applications. Connects via USB and has an expected range of up to 1,640 ft (500 m).

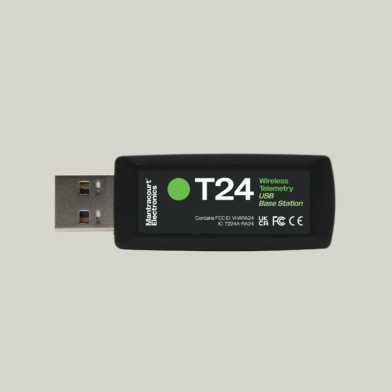

The T24-BSd is enclosed in an IP50 non-weatherproof USB dongle enclosure ideal for indoor installations. Connects via USB and has an expected range of up to 1,640 ft (500 m).

The T24-BSue is enclosed in a weatherproof enclosure providing IP67 protection for outdoor installations. Connects via USB and has an expected range of up to 2,624 ft (800 m).

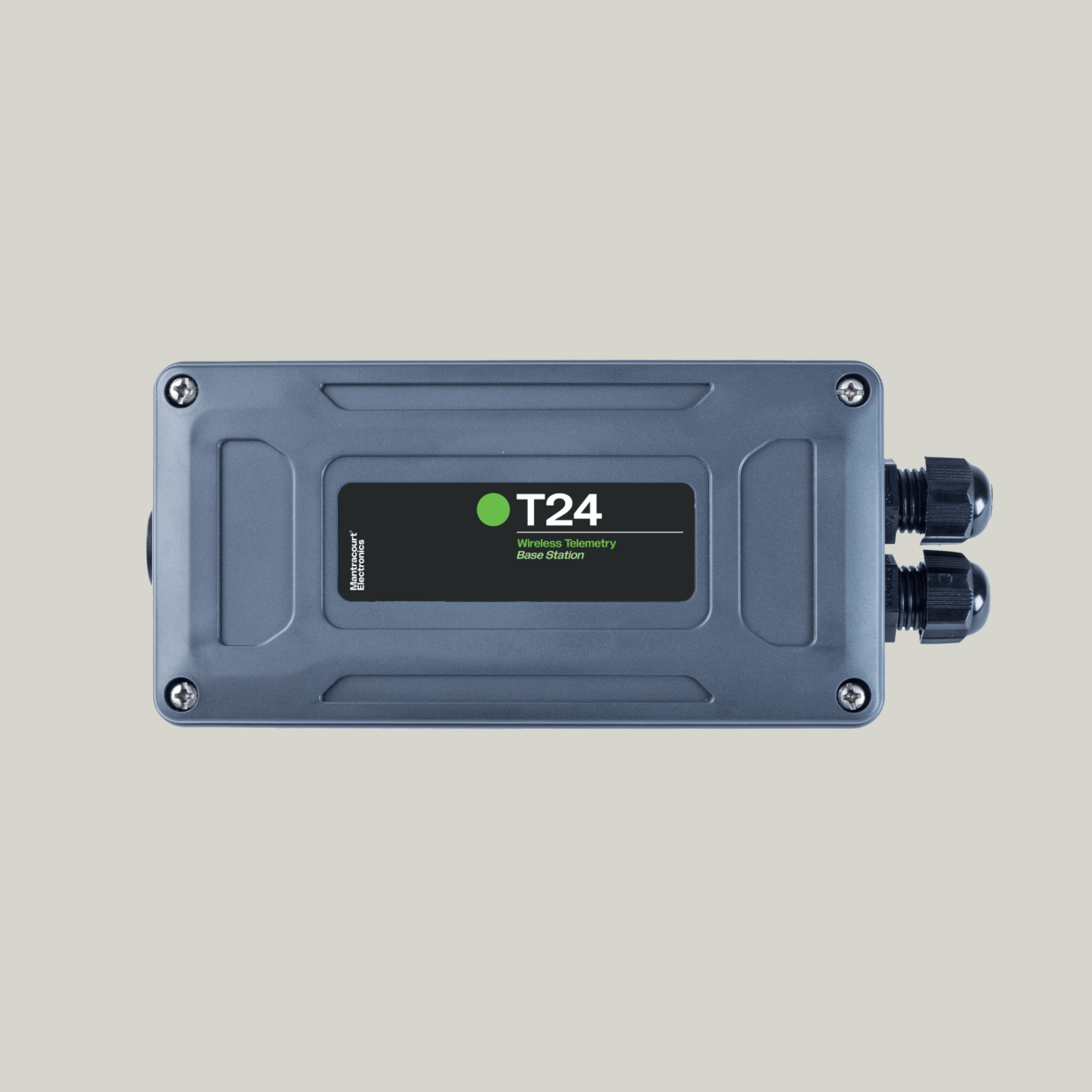

The T24-BSi is enclosed in a large weatherproof enclosure providing IP67 protection for outdoor applications. Connects via USB or RS 232 or RS 485 and has an expected range of up to 2,624 ft (800 m).

All the types of base station offer plug-and-play operation to a Windows PC running the free T24Tool kit software, making it the fastest way to configure and/or calibrate T24 modules. Also used with the T24Log100 free software running on a PC as a display.

Radio Frequency

2.4 GHz

Wireless Range

Up to 1640ft (500 m) and 2,624 ft (800 m)

Power Supply

T24BSu, T24BSd, T24-BSue: 5V via USB. T24-BSi: 9 to 32 VDC

Operating Temperature

−20°C to +55°C (−4°F to +131°F)

Storage Temperature

−40°C to +85°C (−40°F to +185°F)

Maximum Humidity

95% non-condensing

IP Rating

IP50 or IP67

Dimensions

T24BSu: 2.99 x 1.38 x 0.78 in (76 x 35 x 20 mm), T24BSd: 2.28 x 0.81 x 0.43 in (58 x 20.5 x 11 mm), T24-BSue: 3.15 x 2.44 x 1.34 in (80 x 62 x 34 mm), T24-BSi: 6.46 × 3.3 × 2.24 in (164 × 84 × 57 mm)
