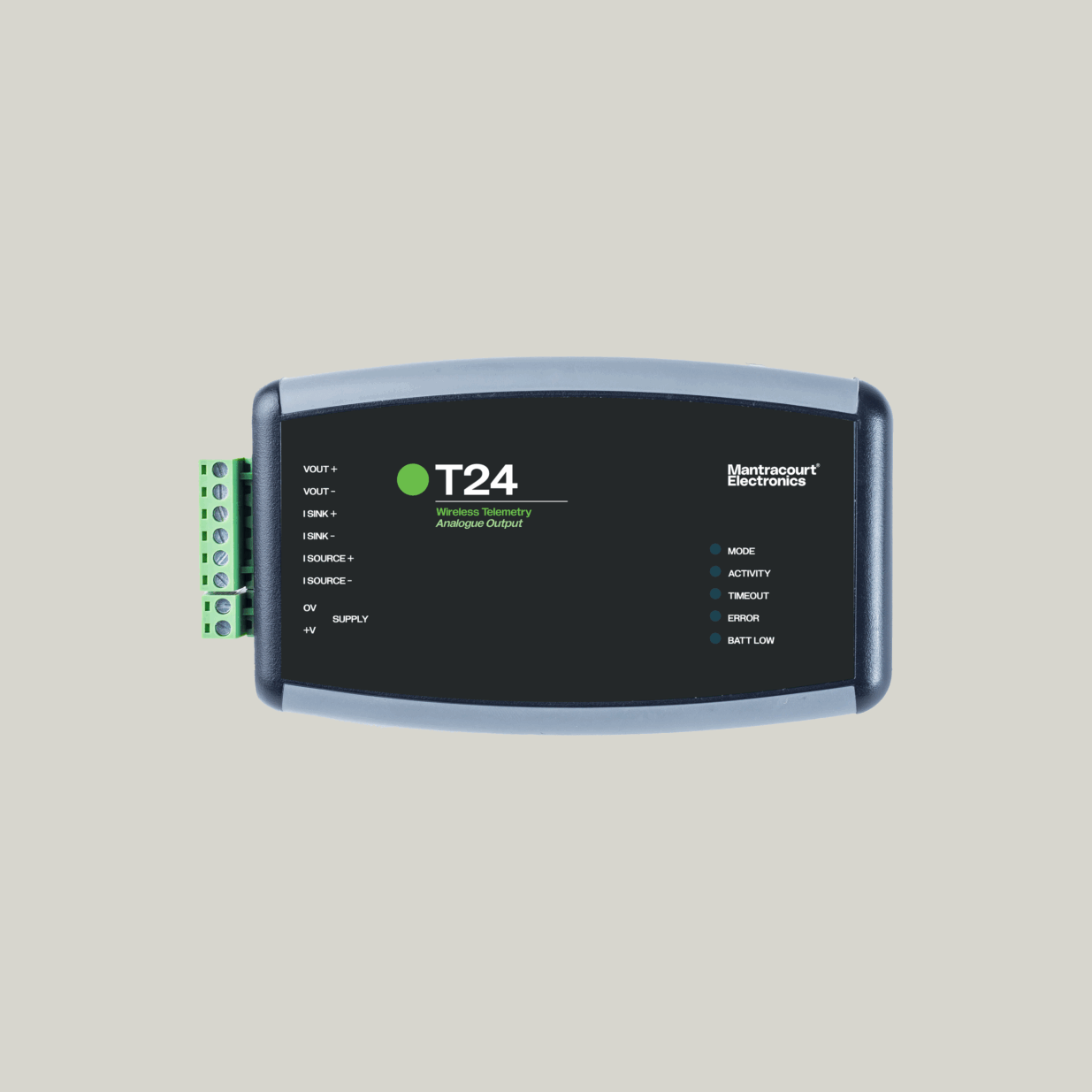

T24-AO1 Wireless Analog Output Receiver
The Mantracourt T24-AO1 is a wireless analog output receiver that converts transmitted weight value into selectable voltage (0–10 V, ±5 V, ±10 V) or current (0–20 mA, 4–20 mA) outputs, available in desktop IP50 or sealed IP67/NEMA 4 industrial enclosures.
PRODUCT DETAILS
The T24-AO1 wireless analog output receiver is the bridge between wireless sensor data and existing wired instrumentation, control systems, and PLCs. It receives live data from any T24 wireless transmitter — covering force/load, pressure, torque, temperature, and more — and converts it into a standard analog signal that can be read by virtually any industrial controller or data acquisition system. With user-selectable voltage output (0–5 V, 0–10 V, ±5 V, ±10 V) or current output (0–20 mA, 4–20 mA sink and source), the T24-AO1 connects directly to existing wiring infrastructure without modification.

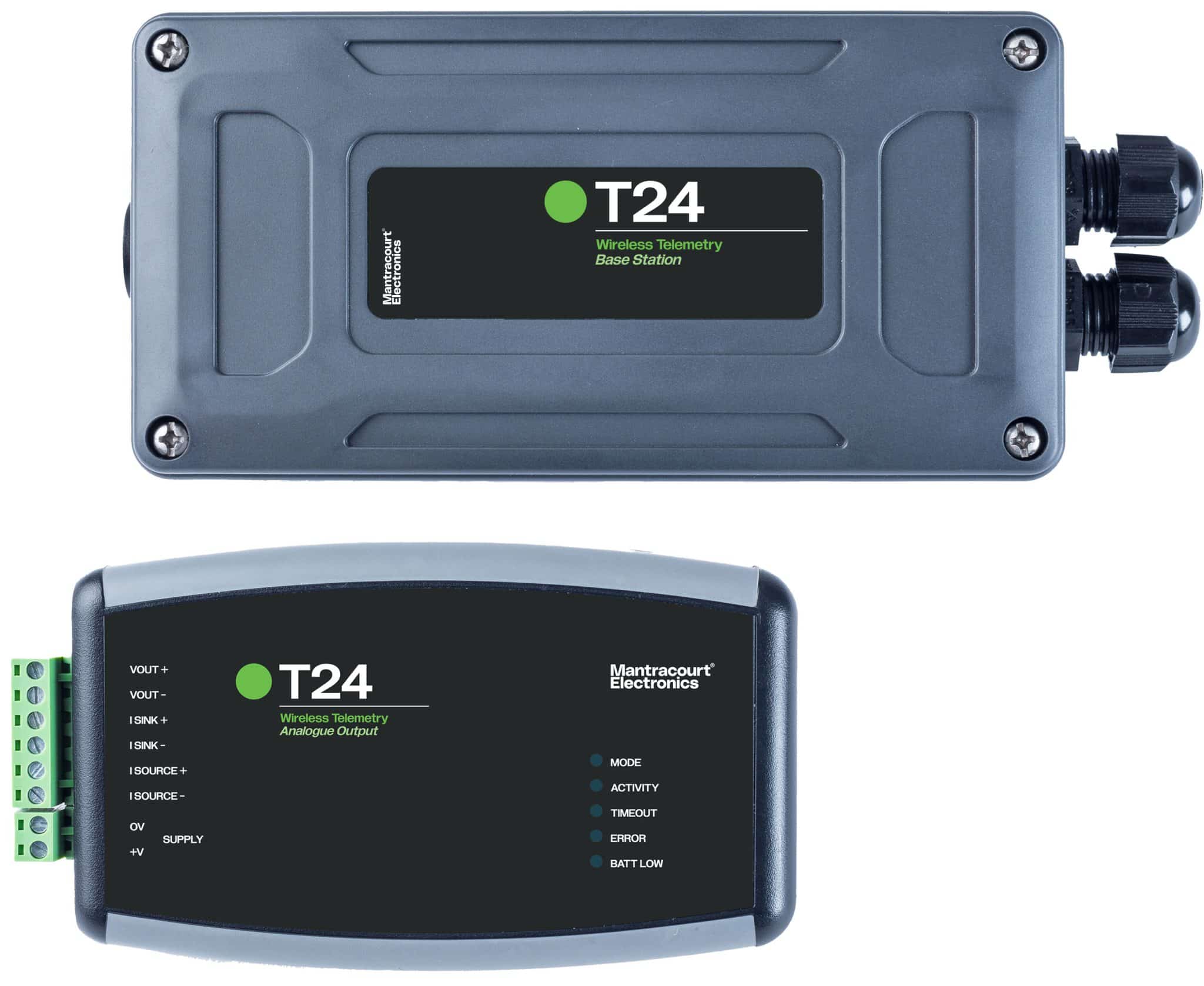

The T24 Toolkit software makes scaling the analog output from any engineering unit input fast and straightforward, allowing one device to serve multiple measurement types. The desktop T24-AO1 (IP50) suits laboratory and panel-mount environments, while the IP67/NEMA 4-rated T24-AO1i is built for harsh industrial, outdoor, and wet environments. Operating from a standard 9 to 32 VDC supply and reaching up to 800 m (2,625 ft) wireless range, the AO1i is equally at home on a factory floor, a weigh bridge, or a crane gantry. Both models support one-to-one transmission at up to 2,000 updates per second depending on the acquisition module.
Most Common Applications: wireless load monitoring with wired output, scale systems, crane load management, industrial retrofit of wired analogue infrastructure.
| Radio Frequency | 2.4 GHz |
|---|---|
| Wireless Range | T24-AO1: Up to 328 ft (100 m), T24-AO1i: Up to 6,624 ft (800 m) |
| Power Supply | 9 to 32 VDC |
| Operating Temperature | −20°C to +55°C (−4°F to +131°F) |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) |
| Maximum Humidity | 95% non-condensing |
| IP Rating | T24-AO1: IP50, T24-AO1i: IP67 / NEMA 4 |
| Dimensions | T24-AO1: 5.7 × 3.5 × 1.0 in (146 × 88 × 25 mm), T24-AO1i: 6.5 × 3.3 × 2.2 in (164 × 84 × 57 mm) |
