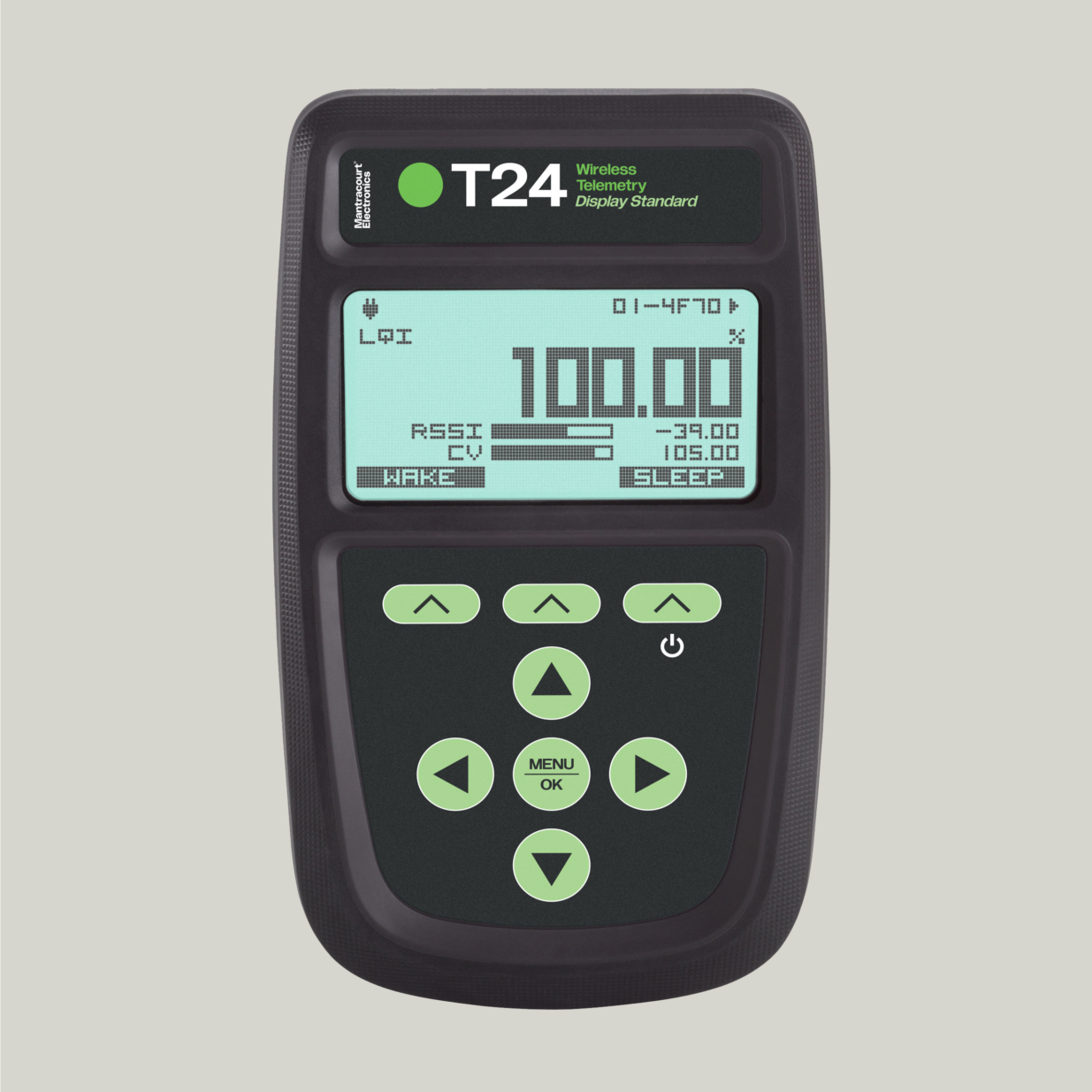

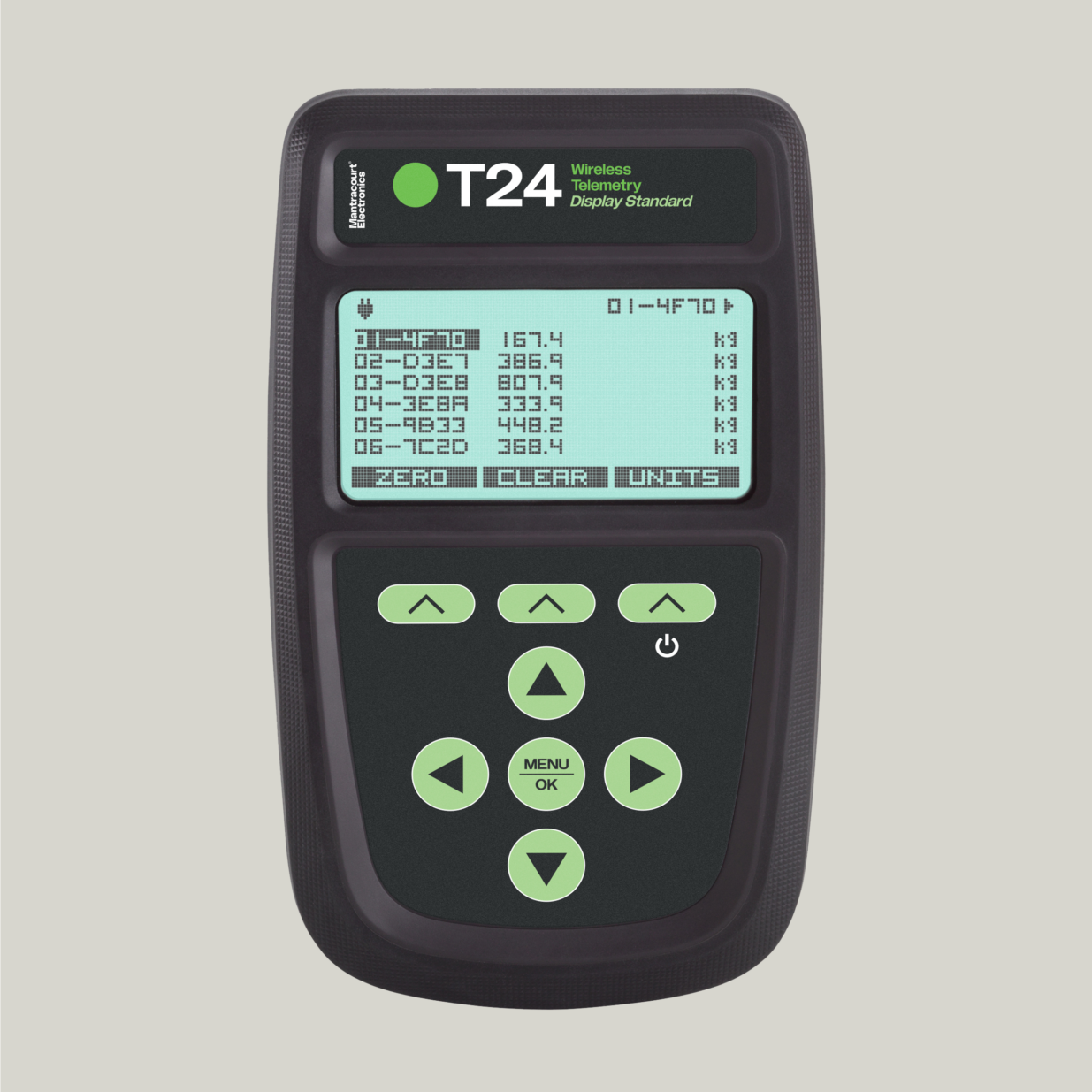

T24-HK-S Wireless Handheld Display
The Mantracourt T24-HK-S is a next-generation IP67/NEMA 4 wireless handheld display connecting to up to 12 T24 transmitters, with roaming mode, overload alerts, configurable units, and up to 800 m (2,625 ft) range — replacing legacy T24-HS, HR, and HLT handhelds in a single device.
PRODUCT DETAILS
The T24-HK-S is Mantracourt’s most capable wireless handheld display, engineered for engineer, field technicians or scale users/operators who need instant, reliable wireless measurement access across multiple sensors. Compatible with all T24 transmitter modules, it delivers real-time readings of force/load, pressure, torque, strain, and more — from up to 12 paired transmitters on a single unit. A roaming mode automatically detects nearby transmitters as the operator moves around a worksite, removing the need to manually select channels when covering large areas or multiple assets.

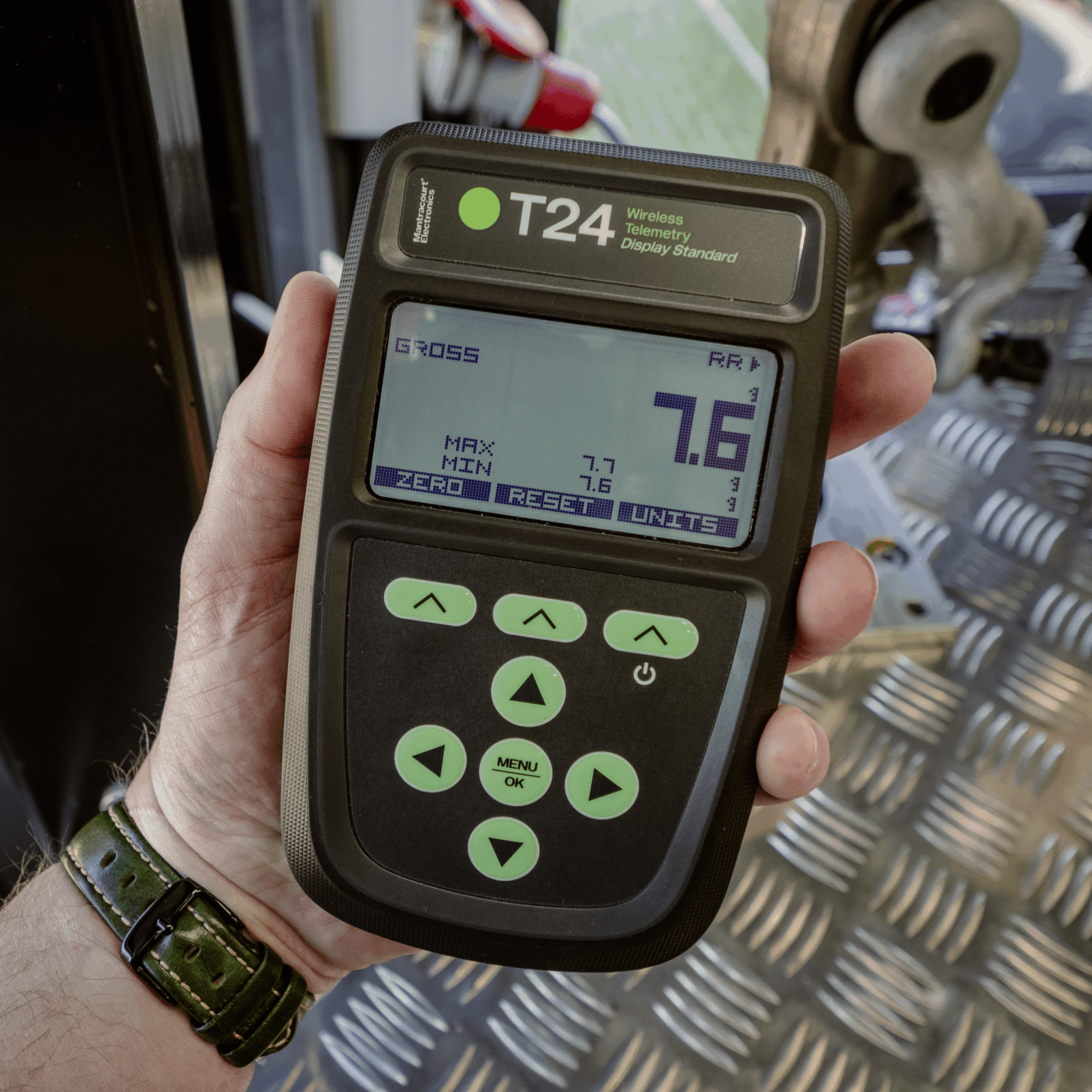

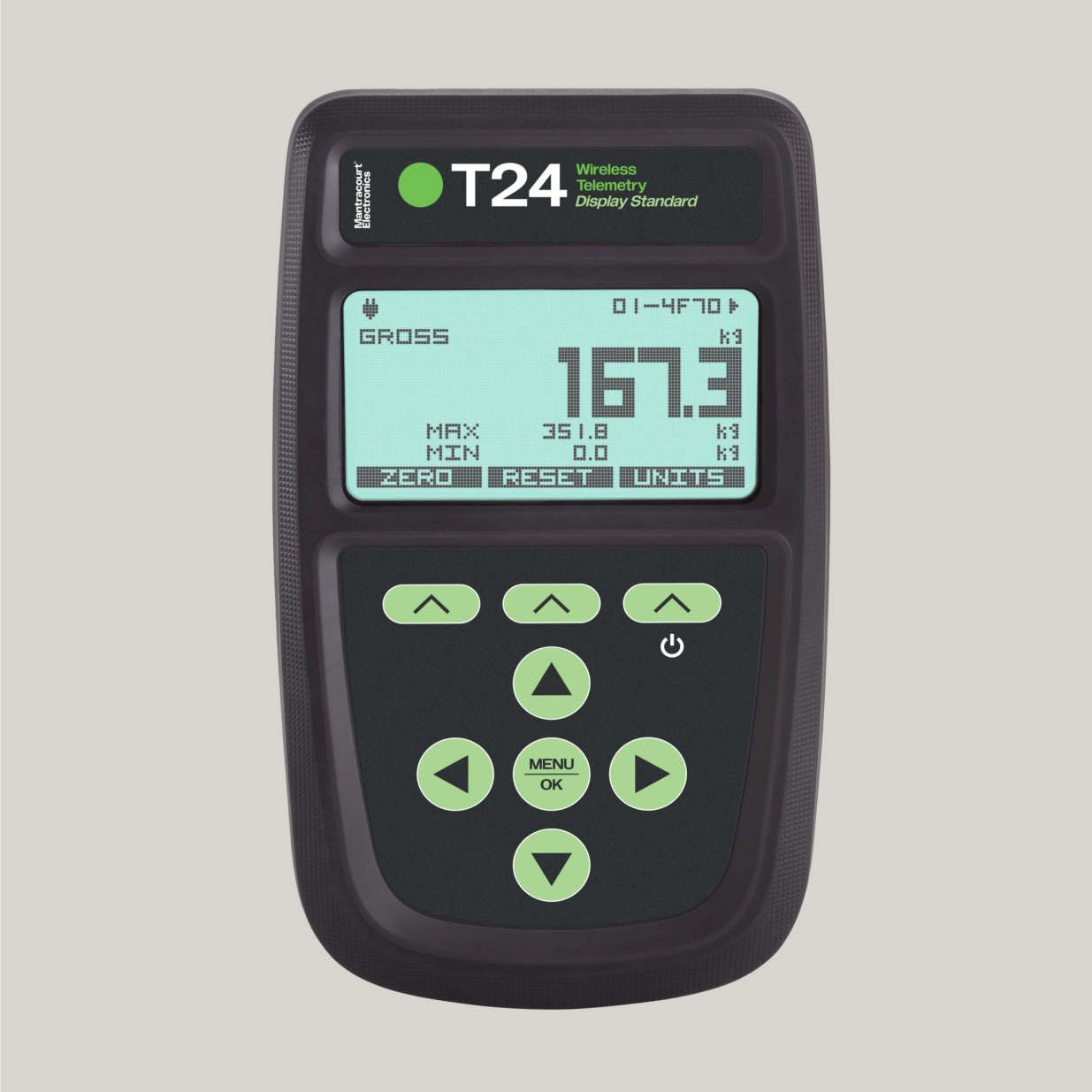

The backlit graphical LCD displays gross weight, MAX/MIN values, and live measurement simultaneously, with configurable units, overload alerts, and password-protected advanced settings to prevent accidental configuration changes. Unlike legacy handheld models, the T24-HK-S is firmware-upgradeable, ensuring access to future features and measurement functions without hardware replacement.
Powered by two AA batteries for up to 35 hours of continuous use, or optionally by a permanent supply for fixed-position use, the T24-HK-S is built for both mobile field deployment and semi-permanent operator stations. It directly replaces the older T24-HS, T24-HR, and T24-HLT models in a single versatile unit, simplifying fleet management across crane, construction, oil and gas, and industrial weighing operations.
Most Common Applications: Portable crane and hoist, multi-sensor field measurement, oil and gas lifting operations, construction site structural monitoring, marine deck weighing, truck scale, rigging and sling load verification.
| Radio Frequency | 2.4 GHz |
|---|---|
| Wireless Range | 2,624 ft (800 m) |
| Power Supply | 2 pcs AA battery |
| Operating Temperature | −10°C to +50°C (+14°F to +122°F) |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) |
| Maximum Humidity | 95% RH |
| IP Rating | IP67 / NEMA 4 |
| Dimensions | 6.69 x 3.66 x 1.57 in (170 x 93 x 40 mm) |
