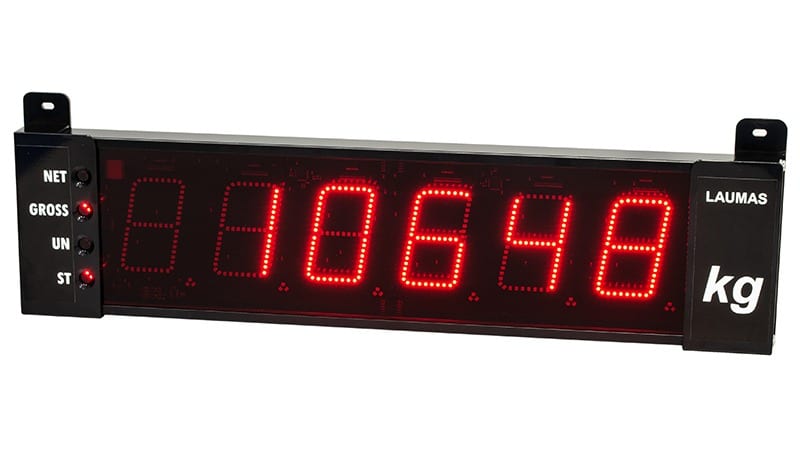

RIP6100N Remote Display
The Laumas RIP6100N is an indoor remote display featuring a 6-digit semi-alphanumeric red SMD LED display with 90 mm (3.54 inch) digit height in an aluminum profile enclosure. Designed for wall mounting with IP30 protection, it operates on 12 VDC and supports RS232 and RS485 serial communication.
PRODUCT DETAILS
The RIP6100N is a clean, professional indoor weight display designed for production floors, warehouses, and commercial weighing environments where a clear and reliable weight readout is needed at a glance. Its 90 mm (3.54 inch) red SMD LED digits offer excellent visibility across the workspace, while the compact aluminum enclosure keeps the installation tidy and unobtrusive.
The unit operates from a 12 VDC power supply (included: 12 VDC / 2 A adapter, 100 to 240 VAC input, 1.2 m / 3.94 ft cable) and communicates via RS232 or RS485 serial ports, supporting up to 15 settable addresses, and configuration using a PC via RS 232. This makes it straightforward to connect to any weight indicator or PLC outputting a standard serial data stream. A 5 m (16.4 ft) serial connection cable and wall mounting brackets are included.
Four signalling LEDs provide at-a-glance status indication, and brightness is fully adjustable to suit the ambient light conditions of the installation environment.
Most Common Applications: Production line weight monitoring, indoor warehouse displays, retail backroom scales, and food processing facilities, quality control stations.
| Power Supply | 12 VDC, 2 A (AC adaptor 100 to 240 VAC) |
|---|---|
| Serial Ports | RS 232, RS 485 |
| Baud Rate | 9600 bps |
| Humidity | Up to 80% |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -10°C to +60°C (14°F to 140°F) |
| Protection Rating | IP30 |
| Dimensions | 712 x 208.5 x 46.5 mm (28.03 x 8.21 x 1.83 inches) |
| Weight | – |
