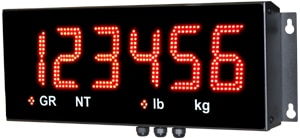

Aurora 45 Remote Display
The Western Scale Aurora 45 is a super bright 4.5″ (114 mm) outdoor LED remote display with a viewing range of over 250 ft (76 m), Auto-Learn Technology, and five standard communication protocols. One of the most popular remote displays in North America, it is built for demanding industrial and outdoor weighing environments.
PRODUCT DETAILS
The Aurora 45 is a field-proven, high-visibility remote display designed for the full range of industrial and outdoor weighing applications. With 4.5″ (114 mm) ultra-efficient LED digits readable at over 250 ft (76 m), it delivers unmistakable weight readout at truck scales, loading docks, recycling facilities, and warehouse floors — even in direct sunlight, foul weather, and across wide viewing angles.
Auto-Learn Technology means the Aurora 45 connects to any scale indicator without manual configuration — it automatically detects baud rate, data bits, parity, stop bits, and indicator output strings. Five communication protocols are supported: RS-232, RS-422, RS-485 multi-drop, and 20 mA current loop (active and passive), with an optional wireless RF module for cable-free installations.

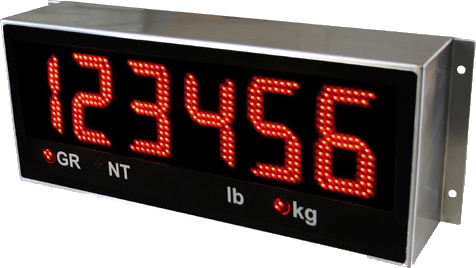

Pre-installed utility programs include axle weighing, hold weight, and more. Selectable day and night brightness, a power save mode, and a non-glare lens round out the feature set. Stainless steel enclosure options are available.
Most Common Applications: Truck and axle scales, loading dock displays, grain and agriculture scales, industrial process weighing, outdoor and vehicle weighing stations.
| Power Supply | 900 to 240 VAC |
|---|---|
| Serial Ports | RS 232, RS 422, RS 485, 20 mA Current Loop (Active & Passive) |
| Baud Rate | Auto-Learn |
| Humidity | – |
| Operating Temperature | -40°C to 50°C (-40°F to 120°F) |
| Storage Temperature | – |
| Protection Rating | Weatherproof |
| Dimensions | 24″ x 10″ x 5″ (610 x 255 x 127 mm) |
| Weight | 18 lb (9 kg) |
