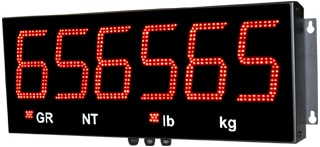

Aurora 65 Remote Display
The Western Scale Aurora 65 is a long-range 6.5″ (165 mm) outdoor LED remote display with a viewing range of over 300 ft (100 m). Sharing the same hardware and software platform as the Aurora 45, it is built for applications where maximum digit size and long-distance readability are critical.
PRODUCT DETAILS
The Aurora 65 is the largest-digit display in the Aurora family, featuring 6.5″ (165 mm) LED digits with a thicker segment layout for exceptional readability at distances over 300 ft (100 m). Where the Aurora 45 already covers most industrial applications, the Aurora 65 is the choice when visibility over extreme distances is critical — large truck scale plazas, wide open outdoor weighing sites, ports, and facilities where operators and drivers may be far from the display.
The Aurora 65 shares an identical hardware and software platform with the Aurora 45, delivering the same full feature set: Auto-Learn Technology detects the serial setting from any scale indicator, RS 232, RS 422, RS 485, and 20 mA current loop communication, optional wireless RF, and multi-drop capability for up to 8 displays from a single serial connection. Pre-installed utility programs include axle weighing, hold weight, and more.
The weatherproof powder-coated mild steel enclosure with breather vent, selectable day and night brightness, photo sensor for automatic LED intensity adjustment, and power save mode are all standard. Stainless steel enclosure options are available on request.
Most Common Applications: Large truck scales, port and terminal weighing, wide-area outdoor vehicle weighing stations, grain elevator and agricultural facilities, quarry and mining site scales, industrial facilities requiring maximum viewing distance.
| Power Supply | 900 to 240 VAC |
|---|---|
| Serial Ports | RS 232, RS 422, RS 485, 20 mA Current Loop (Active & Passive) |
| Baud Rate | Auto-Learn |
| Humidity | – |
| Operating Temperature | -40°C to 50°C (-40°F to 120°F) |
| Storage Temperature | – |
| Protection Rating | Weatherproof |
| Dimensions | 32″ x 12″ x 5″ (812 x 305 x 127 mm) |
| Weight | 28 lb (12.7 kg) |
