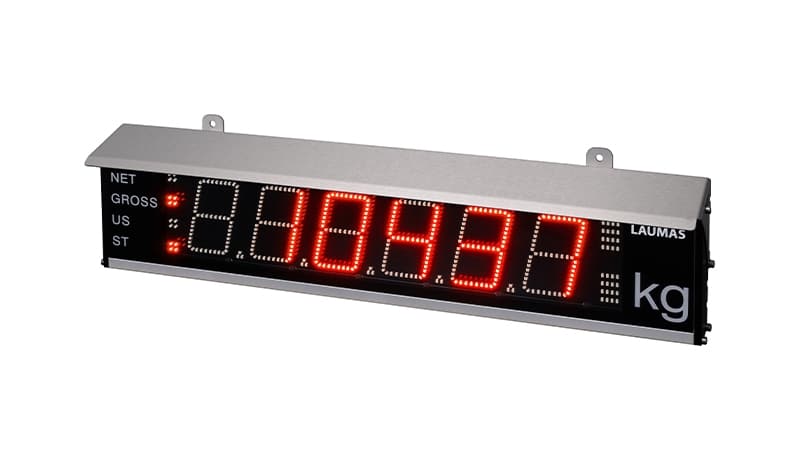

RIP6100IP65 Remote Display
The Laumas RIP6100IP65 is a large-digit outdoor remote display featuring a 6-digit semi-alphanumeric red LED display with 95 mm (3.74 inch) digit height, housed in an anodized aluminum enclosure with IP65 protection. Designed for wall mounting, it supports RS232 and RS485 serial communication and operates on 110 to 240 VAC.
PRODUCT DETAILS
The RIP6100IP65 is a high-visibility remote weight display built for industrial and outdoor environments where clear, reliable weight readout is essential. With 95 mm (3.74 inch) tall red LED digits visible at a distance and an IP65-rated anodized aluminum enclosure, it is well-suited for use in warehouses, loading docks, recycling facilities, truck scales, and outdoor weighing stations exposed to dust and moisture.
The remote display communicates over RS232 or RS485 serial ports, with up to 15 settable addresses for multi-drop configurations, allowing it to receive data from virtually any weight indicator or controller that outputs a standard serial data stream. Can be configured using a PC via RS 232, and features a built-in red/green traffic light function for axle weighing applications. An anti-condensation ventilated valve helps regulate internal humidity and pressure in demanding outdoor conditions.
The unit ships complete with connectors, a 1.3 m (4.27 ft) power cable, and wall mounting brackets. An optional sun and rain protection shield is available for fully exposed outdoor installations.
Most Common Applications: Truck scales and vehicle weighing stations, loading dock displays, outdoor industrial weighing, warehouse floor displays, production line weight monitoring.
| Power Supply | 110 to 240 VAC, <10 VA |
|---|---|
| Serial Ports | RS 232, RS 485 |
| Baud Rate | 9600 bps |
| Humidity | Up to 85% |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -20°C to +60°C (-4°F to 140°F) |
| Protection Rating | IP65 |
| Dimensions | 745 x 160 x 50 mm (29.33 x 6.30 x 1.97 inches) |
| Weight | – |
