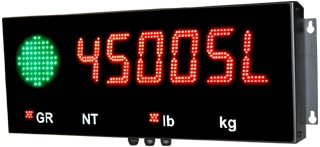

Aurora 45 SL Remote Display
The Western Scale Aurora 45 SL is a 4.5″ (114 mm) outdoor LED remote display with a built-in 5″ (127 mm) red/green traffic light, visible over 250 ft (76 m). It shares the same hardware and software platform as the Aurora 45 and 65, adding integrated stop/go vehicle flow control for truck scales and weighing stations.
PRODUCT DETAILS
The Aurora 45 SL combines the full feature set of the Aurora 45 with an integrated 5″ (127 mm) red/green traffic light — saving the cost and complexity of a separate traffic light installation. With 4.5″ (114 mm) LED digits visible over 250 ft (76 m), it is purpose-built for truck scale facilities, vehicle weighing stations, and any application where weight display and vehicle flow control need to work together.
The traffic light can be controlled via serial commands (wired or wireless), hard-wired manual switches (electrical or mechanical), or pre-installed utility programs — giving operators full flexibility in how the stop/go signal is triggered. Like all Aurora displays, the 45 SL features Auto-Learn Technology for connection to any scale indicator, and supports RS 232, RS 422, RS 485, 20 mA current loop, and optional wireless RF communication.
Pre-installed utility programs include axle weighing, traffic light control, hold weight, and more. A built-in relay remotely controls additional external traffic lights. Selectable day and night brightness, mirrored display mode, multi-drop for up to 8 displays per serial connection, and stainless steel enclosure options are all available.
Most Common Applications: Truck and axle scale facilities, vehicle weighing stations requiring stop/go control, recycling and waste management facilities, loading dock access control, agricultural grain scale operations.
| Power Supply | 100 to 240 VAC |
|---|---|
| Serial Ports | RS 232, RS 422, RS 485, 20 mA Current Loop (Active & Passive) |
| Baud Rate | Auto-Learn |
| Humidity | – |
| Operating Temperature | -40°C to 50°C (-40°F to 120°F) |
| Storage Temperature | – |
| Protection Rating | Weatherproof |
| Dimensions | 32″ x 12″ x 5″ (812 x 305 x 127 mm) |
| Weight | 32 lb (15 kg) |
