The Laumas PV80 and PV60Z are mounting kits for shear beam load cells (FTP, FTZ, FTK series) supporting up to 5,000 kg (11,023 lb). The PV80 features AISI 304 stainless steel construction while the PV60Z uses galvanized steel, both with a self-centering joint foot for lateral load and tilt protection, and adjustable height.

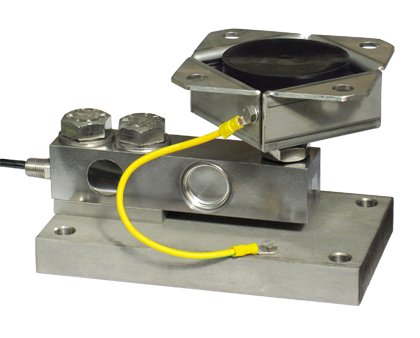

The PV80 and PV60Z mounting kits are compact, low-profile solutions for securely mounting shear beam load cells in industrial weighing applications up to 5,000 kg (11,023 lb). The PV80 uses AISI 304 stainless steel throughout — upper plate, lower plate, block, and self-centering joint — making it ideal for corrosive or washdown environments. The PV60Z uses galvanized steel for cost-effective deployments in standard industrial settings.
Both models incorporate a self-centering joint foot that constrains lateral forces and prevents anti-tilt while compensating for structural misalignments between support surfaces. An adjustable upper plate allows the kit to be positioned for optimal load distribution. The compact 138mm height makes the PV80/PV60Z particularly suited for tight installations under vessel legs, conveyor frames, and platform structures.
Most Common Applications: Tank and vessel weighing, conveyor scales, platform scales, hopper scales, industrial process weighing.
| Capacities | PV80: up to 5,000 kg (11,023 lb); PV60Z: up to 5,000 kg (11,023 lb) |
|---|---|
| Material | PV80: AISI 304 Stainless Steel; PV60Z: Galvanized Steel |
