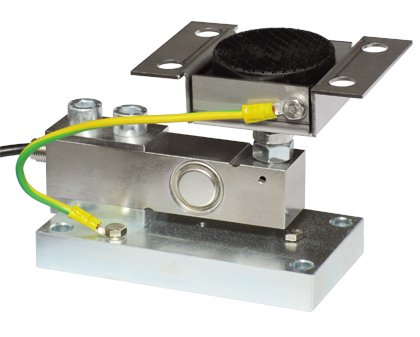

The Laumas PV and PVZ are mounting kits for shear beam load cells (FTK, FTKL, FTP, FT-P, FTZ series) supporting up to 2,000 kg (4,409 lb). The PV uses AISI 304 stainless steel, the PVZ uses galvanized steel, both with a self-centering joint foot, misalignment compensation, adjustable height, and a transport locking screw.
The PV and PVZ mounting kits offer an efficient solution for installing shear beam load cells in weighing systems up to 2,000 kg (4,409 lb). The PV features AISI 304 stainless steel plates, block, and self-centering joint foot for corrosion-resistant deployments, while the PVZ uses galvanized steel components for standard industrial environments.
Both models feature an adjustable upper plate and a self-centering joint foot that constrains lateral forces and prevents anti-tilt while simultaneously compensating for any angular misalignment between the structure’s support surfaces. A locking screw safely immobilizes the load cell during transport and installation, then is released for normal operation.
Most Common Applications: Platform scales, tank weighing, conveyor scales, hopper and silo weighing, industrial process scales.
| Capacities | PV: up to 2,000 kg (4,409 lb);PVZ: up to 2,000 kg (4,409 lb) |
|---|---|
| Material | PV: AISI 304 Stainless Steel; PVZ: Galvanized Steel |
