Massload Wireless Tension Link to Wireless Serial Output to Remote Display

IMAGES
VCAP

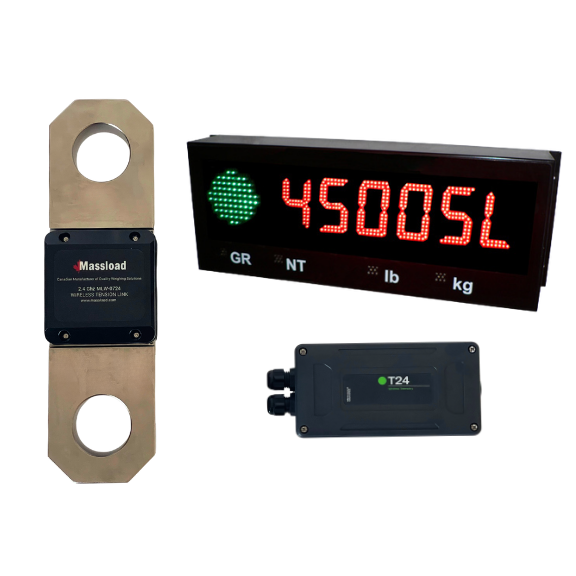

The Massload Wireless Tension Link with Serial Output to Remote Display combines a high-capacity IP67 tension load cell with the Mantracourt T24-SO wireless ASCII serial output receiver, sending live load data via RS232 or RS485 to a remote scoreboard display, printer, or serial-enabled device.

PRODUCT DETAILS

Capacity

10,000 lb (4,536 kg), 25,000 lb (11,340 kg), 50,000 lb (22,680 kg), 75,000 lb (34,019 kg), 100,000 lb (45,359 kg), 150,000 lb (68,039 kg), 250,000 lb (113,400 kg); Custom capacity available upon request

Accuracy

0.1% FS

Safe Overload

200% of full scale

Ultimate Overload

400% of full scale

Full Scale Output

2 mV/V nominal

Maximum Excitation

10 V DC

Bridge Resistance

350 Ω

Operating Temperature

−40°C to +80°C (-40F to +176F)

Compensated Temperature

−10°C to +40°C (+14F to +104F)

Sealing Standard

IP67

Material

High-strength alloy steel

Protective Coating

Electroless nickel coating
