Massload Wireless Tension Link to Wireless Analog Output to PLC

IMAGES
VCAP

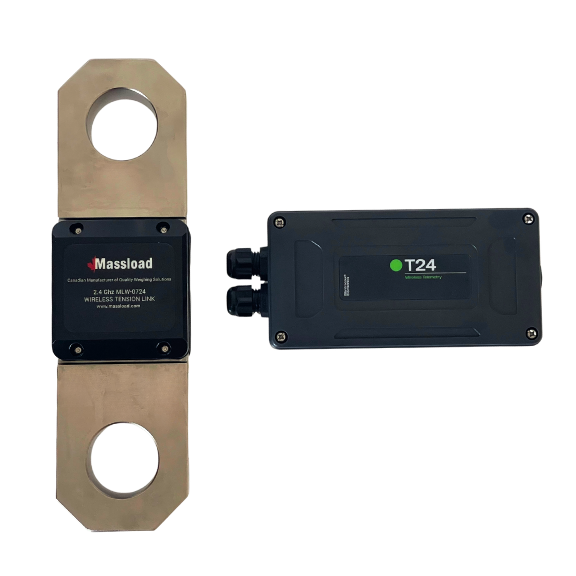

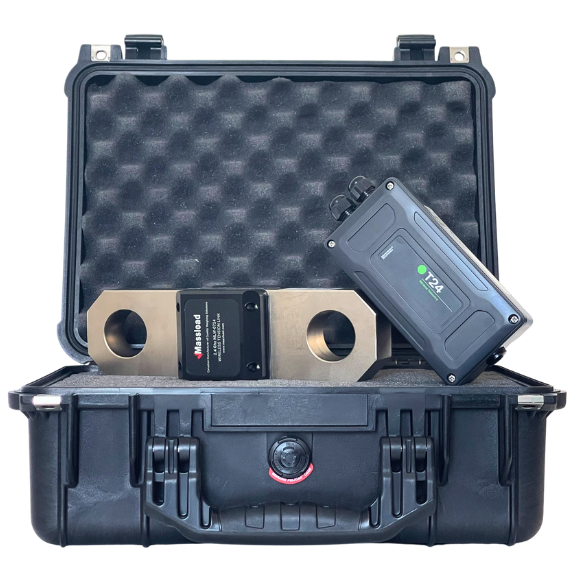

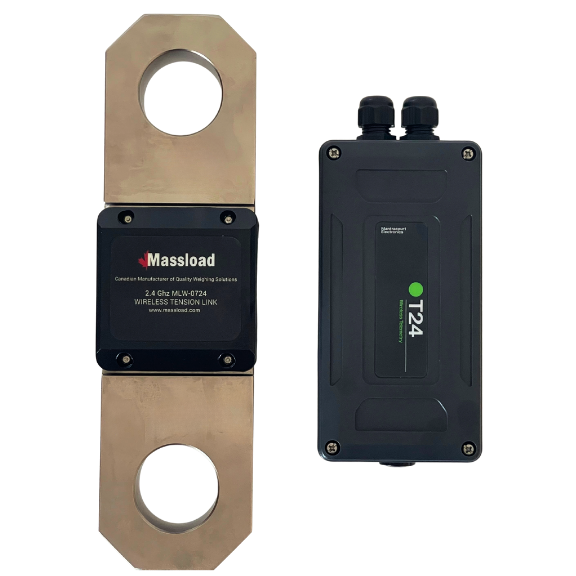

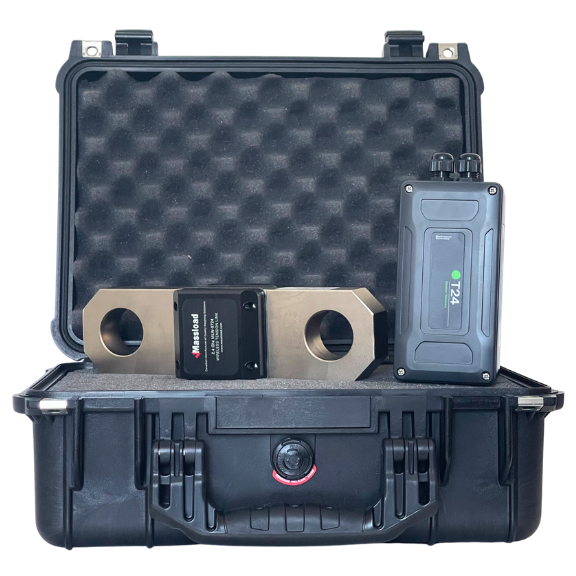

The Massload Wireless Tension Link with Analog Output for PLC combines a high-capacity IP67 tension load cell with the Mantracourt T24-AO1i wireless analog output receiver, delivering a 4-20 mA, 0-20 mA, 0-10 V, ±5 V, or ±10 V signal directly to a PLC or control system — completely wire-free from load point to panel.

PRODUCT DETAILS

Capacity

10,000 lb (4,536 kg), 25,000 lb (11,340 kg), 50,000 lb (22,680 kg), 75,000 lb (34,019 kg), 100,000 lb (45,359 kg), 150,000 lb (68,039 kg), 250,000 lb (113,400 kg); Custom capacity available upon request

Accuracy

0.1% FS

Safe Overload

200% of full scale

Ultimate Overload

400% of full scale

Full Scale Output

2 mV/V nominal

Maximum Excitation

10 V DC

Bridge Resistance

350 Ω

Operating Temperature

−40°C to +80°C (-40F to +176F)

Compensated Temperature

−10°C to +40°C (+14F to +104F)

Sealing Standard

IP67

Material

High-strength alloy steel

Protective Coating

Electroless nickel coating
