Massload Wireless Tension Link to Gateway

IMAGES
VCAP

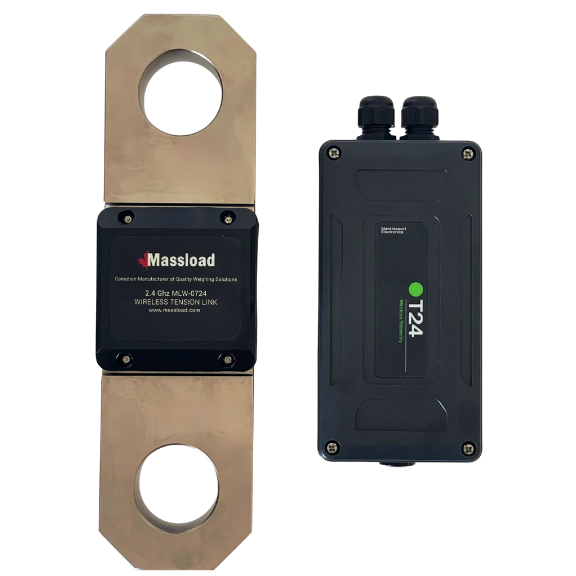

The Massload Wireless Tension Link with Modbus Gateway combines a high-capacity IP67 tension load cell with the Mantracourt T24-GW1 wireless gateway, delivering live tension data to PLCs, SCADA systems, LabVIEW, or DASYLab via Modbus RTU or ASCII serial protocol over RS232 or S485 — supporting up to 100 tension links on a single gateway.

PRODUCT DETAILS

Capacity

10,000 lb (4,536 kg), 25,000 lb (11,340 kg), 50,000 lb (22,680 kg), 75,000 lb (34,019 kg), 100,000 lb (45,359 kg), 150,000 lb (68,039 kg), 250,000 lb (113,400 kg); Custom capacity available upon request

Accuracy

0.1% FS

Safe Overload

200% of full scale

Ultimate Overload

400% of full scale

Full Scale Output

2 mV/V nominal

Maximum Excitation

10 V DC

Bridge Resistance

350 Ω

Operating Temperature

−40°C to +80°C (-40F to +176F)

Compensated Temperature

−10°C to +40°C (+14F to +104F)

Sealing Standard

IP67

Material

High-strength alloy steel

Protective Coating

Electroless nickel coating
