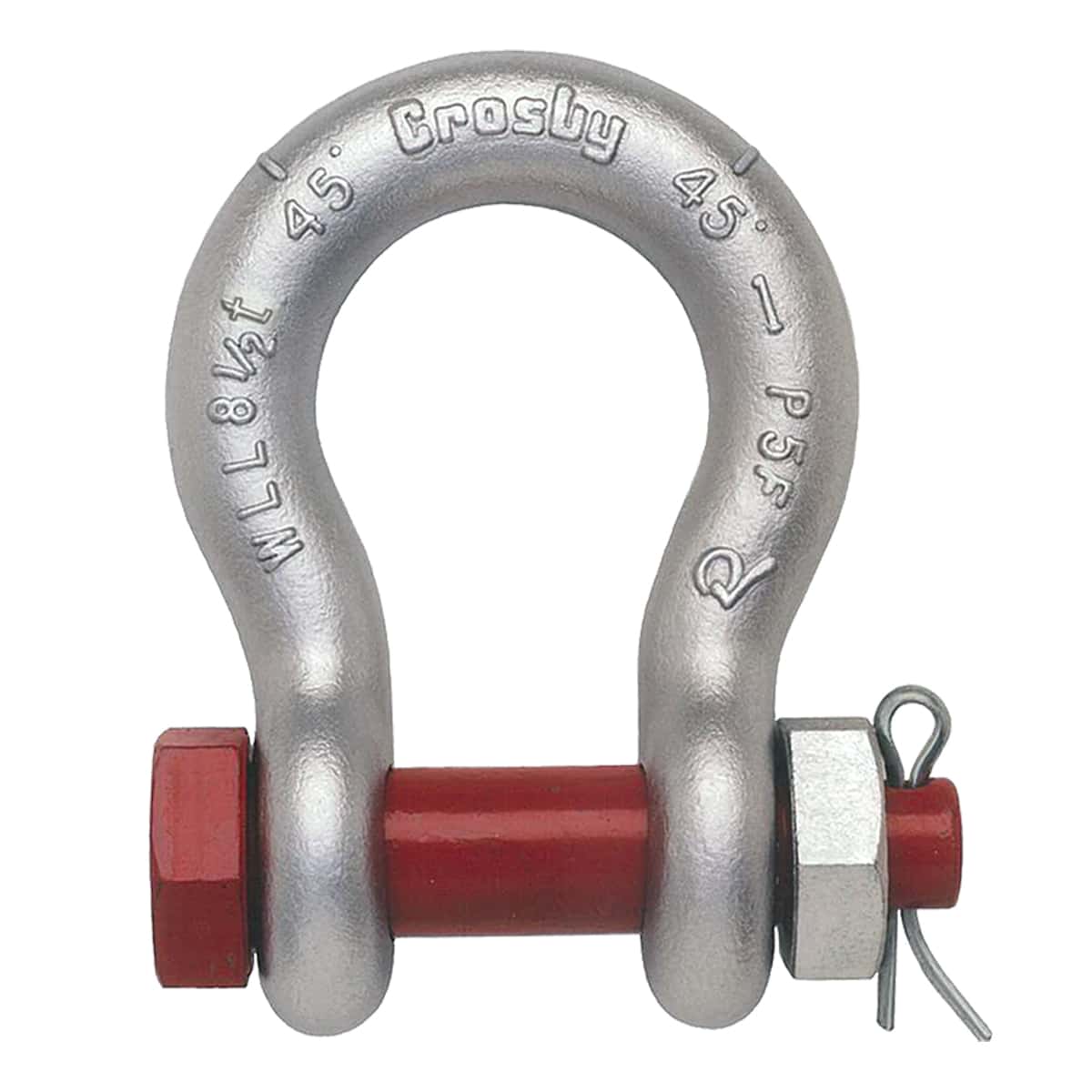

G-2130 Bolt Type Anchor Shackle

IMAGES

The Crosby G-2130 is a alloy bolt type anchor shackle, available from 6.5 t to 120 t (14,330 lb to 264,555 lb), quenched and tempered with a 6:1 design factor and fatigue rated to 20,000 cycles. Hot-dip galvanized bowl and approved for use at −40°F to 400°F (−40°C to 204°C). These are typically recommended to use with Massload Tension Links and are used for Massload Load Shackles.

PRODUCT DETAILS

The G-2130 bolt type anchor shackle is built for demanding overhead lifting, rigging, and long-term installations where pin security is critical. Because the bolt type pin is secured with a nut and votter pin, it cannot rotate or work loose under load — making the G-2130 the right choice for permanent or semi-permanent rigging setups and applications where the load may slide on the pin.

The G-2130 is ideal for overhead lifting, construction rigging, crane work, marine lifting, and any application where a load may rotate or side-load the connection point.

Most Common Applications: Overhead lifting, crane rigging, construction, marine lifting, long-term and permanent rigging installations, Massload tension link installations, Massload load shackles.

Working Load Limit

6-1/2 t (14,330 lb), 8-1/2 t (18,739 lb), 9-1/2 t (20,944 lb), 12 t (26,455 lb), 13-1/2 t (29,762 lb), 17 t (37,479 lb), 25 t (55,116 lb), 35 t (77,162 lb), 55 t (121,254 lb), 85 t (187,393 lb), 120 t (264,555 lb)

Proof Load

1.5× Working Load Limit

Breaking Load

Minimum 6× Working Load Limit

Temperature Range

−40°F to 400°F (−40°C to 204°C)

Material

Forged Alloy Steel, Quenched & Tempered

Shackle Type

Bolt Type Anchor Shackle
