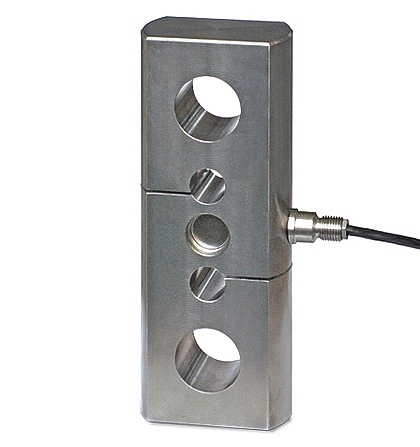

TAL Tension Load Cell
The Laumas TAL is a 17-4PH stainless steel tension load cell available in capacities of 5,000 kg, 10,000 kg, and 20,000 kg (11,023 to 44,092 lb), with IP68 protection and combined error < ±0.03%. Featuring holes for standard shackles and manufactured to OIML R60 standards, it is ideal for overhead lifting, crane monitoring, and marine mooring tension measurement in demanding environments.
PRODUCT DETAILS
The TAL is a precision 17-4PH stainless steel tension load cell engineered for reliable, long-term force measurement in harsh industrial and marine environments. Standard shackle-compatible openings at both ends allow the TAL to be installed directly into rigging, lifting, or mooring systems, enabling accurate real-time tension monitoring without modifications to existing hardware. With a combined error of < ±0.03% and a rated output of 2 mV/V ±0.1%, the TAL delivers the accuracy required for critical overhead lifting verification, structural monitoring, and material handling applications where measurement integrity is essential.
The TAL’s IP68 full immersion sealing, 17-4PH stainless steel body, and wide compensated temperature range of -20°C to +70°C (-4°F to +158°F) make it the load cell of choice for offshore platforms, marine vessels, hydro dams, and other environments where prolonged exposure to water, humidity, and corrosive conditions is expected. Its millivolt/volt output connects directly to indicators, signal conditioners with analog output, and transmitters with field bus communication that are available for integration with PLC and SCADA systems. An optional dual-bridge configuration (two redundant 350 Ω Wheatstone bridges with separate output cables) is available for safety-critical dual-channel monitoring applications. ATEX and IECEx hazardous-area certifications are available on request.
Most Common Applications: Crane and overhead hoist load monitoring, marine and offshore mooring tension measurement, hydro dam gate force monitoring, structural load testing, material handling verification, safety-critical lifting operations.
| Capacities | 5,000 kg (11,023 lb), 10,000 kg (22,046 lb), 20,000 kg (44,092 lb) |
|---|---|
| Combined Error | < ±0.03% |
| Non-Linearity | – |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2 mV/V ± 0.1% |
| Maximum Excitation | 15 V DC |
| Input Resistance | 350 Ω ± 5 |
| Output Resistance | 350 Ω ± 5 |
| Operating Temperature | -30°C to +90°C (-22°F to +194°F) |
| Compensated Temperature | -20°C to +70°C (-4°F to +158°F) |
| Sealing Standard | IP68 |
| Material | 17-4 PH Stainless Steel |
| Protective Coating | – |
