Massload Wired Tension Link to Indicator

IMAGES
VCAP

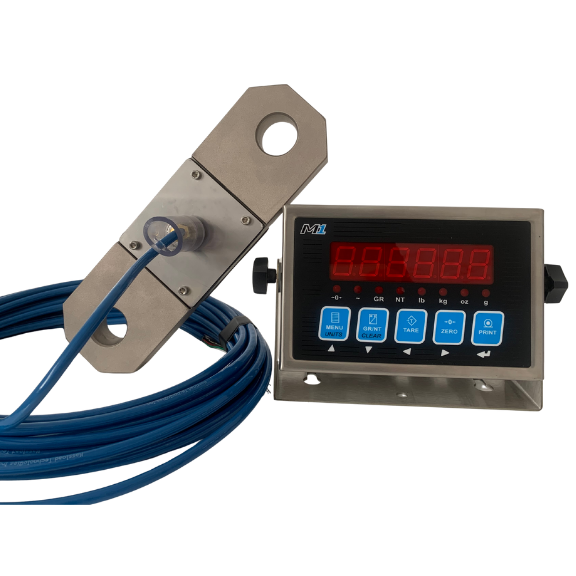

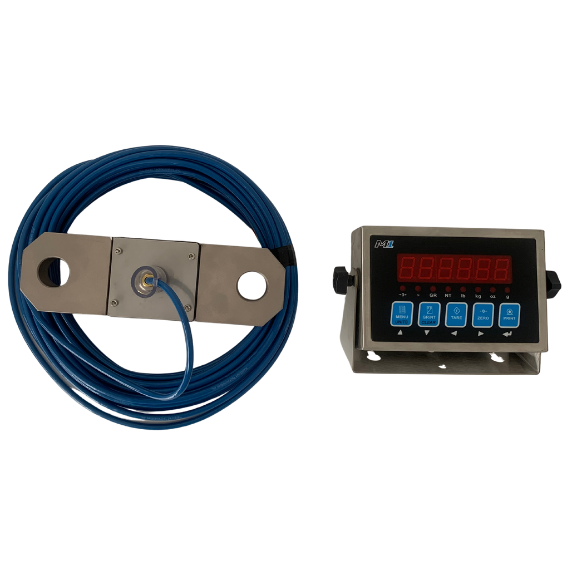

The Massload Wired Tension Link with Indicator combines a high-capacity IP67 tension load cell with a direct cable connection to a digital weight indicator. Choose from the MAX battery-powered indicator for mobile and outdoor use, the M1 or M2000 for standard panel-mount applications, the WINOX-R stainless steel indicator for washdown and batching environments, the compact WLIGHT, or the W100 DIN-rail mounted indicator for control panel integration.
Analog and relay outputs are available on the WINOX-R and W100 models.

PRODUCT DETAILS

Capacity

10,000 lb (4,536 kg), 25,000 lb (11,340 kg), 50,000 lb (22,680 kg), 75,000 lb (34,019 kg), 100,000 lb (45,359 kg), 150,000 lb (68,039 kg), 250,000 lb (113,400 kg); Custom capacity available upon request

Accuracy

0.1% FS

Safe Overload

200% of full scale

Ultimate Overload

400% of full scale

Full Scale Output

2 mV/V nominal

Maximum Excitation

10 V DC

Bridge Resistance

350 Ω

Operating Temperature

−40°C to +80°C (-40F to +176F)

Compensated Temperature

−10°C to +40°C (+14F to +104F)

Sealing Standard

IP67

Material

High-strength alloy steel

Protective Coating

Electroless nickel coating
