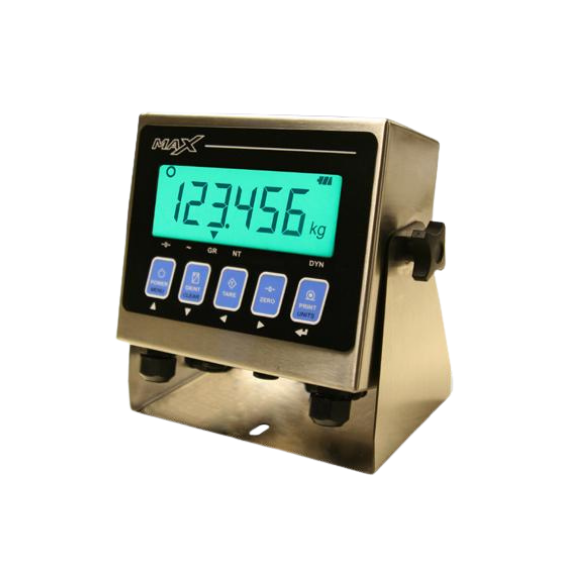

MAX Multi-Powered Weight Indicator
The Western Scale MAX is a portable LCD weight indicator with three power modes: AC power, 12 V DC battery terminal, and D-cell batteries – combined with DYNArrest vibration filtering and NTEP Class III/IIIL and Measurement Canada Class III/IIIHD approval. Designed for mobile and dynamic weighing applications where versatility and field reliability are essential.
PRODUCT DETAILS
The MAX LCD indicator is engineered for mobile, field, and dynamic weighing applications where power availability cannot be guaranteed, and ruggedness is non-negotiable. Its three power modes – standard 100 to 240 VAC, 12 V DC battery terminal (for vehicle-mounted or trailer use), and four D-cell alkaline batteries – give operators the flexibility to deploy it in virtually any setting, from portable axle pad scales in agricultural fields to trade-certified floor scales in remote receiving areas.
The PowerMax operating system intelligently extends battery life for longer uninterrupted use in the field. An adjustable LED backlight ensures clear readability in both outdoor daylight and dim interior environments. The DYNArrest Vibration Filtering System offers sophisticated filtering algorithms & display modes offers the best solution to deliver stable readings quickly. Shrinkage, averaging, and peak hold functions add analytical capability for livestock, agriculture, and material handling workflows.
A programmable serial port, weigh tickets, and macros round out a feature set that matches many fixed-installation indicators despite the portable form factor.
Most Common Applications: Portable axle pad and truck scales, mobile livestock and grain scales, field-deployed commercial weighing, remote site receiving and shipping.
| Power Supply | 100 – 240 V 50/60 Hz, 12 VDC battery terminal, 4x D-cell alkaline |
|---|---|
| Display | 1 in (25 mm) 6-digit LCD |
| Enclosure | 304 stainless steel with bracket |
| Communications & Output | 1 full-duplex RS-232, optional wireless module |
| Load Cell Input | up to 4 pcs 350 Ohms or 8 pcs 700 Ohms |
| Resolution | up to 20,000 display division |
| Operating Temperature | -10°C to 40°C (14°F to 104°F) |
| Dimensions | 9.5 x 7 x 4 in (240 x 178 x 102 mm) with bracket |
| Approvals | NTEP Class III/IIIL 08-004, Measurement Canada Class III/IIIHD AM-5665 |
