Massload NEMA 6x6x4 Load Cell Junction Box

IMAGES

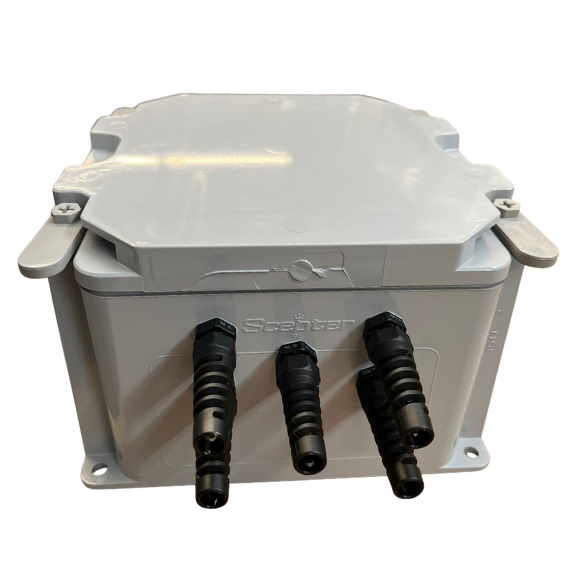

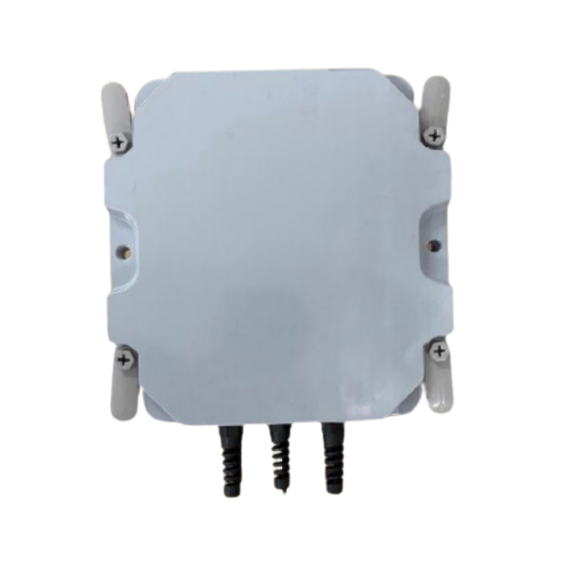

The Massload NEMA 6x6x4 is a heavy-duty industrial load cell sum box featuring a Massload sum board with quality trim potentiometers, plug-in connectors for each load cell, and a quick-release cover. Designed for 4-in/1-out configurations in a rugged watertight PVC enclosure measuring 6×6×4 inches (152×152×102 mm).

PRODUCT DETAILS

The Massload NEMA 6x6x4 junction box is a dependable, field-proven summing box engineered for multi-load-cell weighing systems across a wide range of industrial applications. Housed in a heavy-duty watertight PVC enclosure — 6×6×4 inches (152×152×102 mm) — it is equally at home on floor scales, tank and hopper weighing systems, platform scales, and truck scales, anywhere multiple load cells must be summed and balanced before feeding a single output to a weight indicator or controller. Each load cell connects through a dedicated plug-in connector, making individual cell diagnosis, replacement, and commissioning fast and straightforward — a significant advantage during installation and field service.

Most Common Applications: Floor and platform scales, tank and hopper weighing, truck scales, conveyor scales, industrial process weighing, OEM multi-cell scale systems.

Channels

Number of Load Cells

4 (4-in / 1-out)

Input Cable Fittings

Plug-in connectors

Output Cable Fittings

Enclosure Material

Watertight PVC

IP Rating

Lightning Protection

Dimensions

152 x 152 x 102 mm (6 x 6 x 4 in)

Weight
