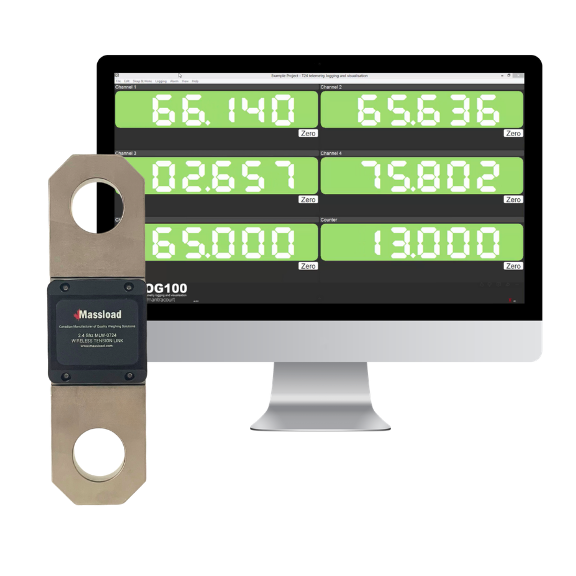

Massload Wireless Tension Link to Wireless Base Station to T24Log100 Software

IMAGES
VCAP

The Massload Wireless Tension Link with Base Station and Data Logging Software combines a high-capacity IP67 tension load cell with a Mantracourt T24 wireless base station and the free T24Log100 software, turning any Windows PC into a complete load monitoring station with live readings, data logging, charts, and
reports. The Mantracourt T24-BSu or T24-BSd connects via USB for simple plug-and-play setups.

PRODUCT DETAILS

Capacity

10,000 lb (4,536 kg), 25,000 lb (11,340 kg), 50,000 lb (22,680 kg), 75,000 lb (34,019 kg), 100,000 lb (45,359 kg), 150,000 lb (68,039 kg), 250,000 lb (113,400 kg); Custom capacity available upon request

Accuracy

0.1% FS

Safe Overload

200% of full scale

Ultimate Overload

400% of full scale

Full Scale Output

2 mV/V nominal

Maximum Excitation

10 V DC

Bridge Resistance

350 Ω

Operating Temperature

−40°C to +80°C (-40F to +176F)

Compensated Temperature

−10°C to +40°C (+14F to +104F)

Sealing Standard

IP67

Material

High-strength alloy steel

Protective Coating

Electroless nickel coating
