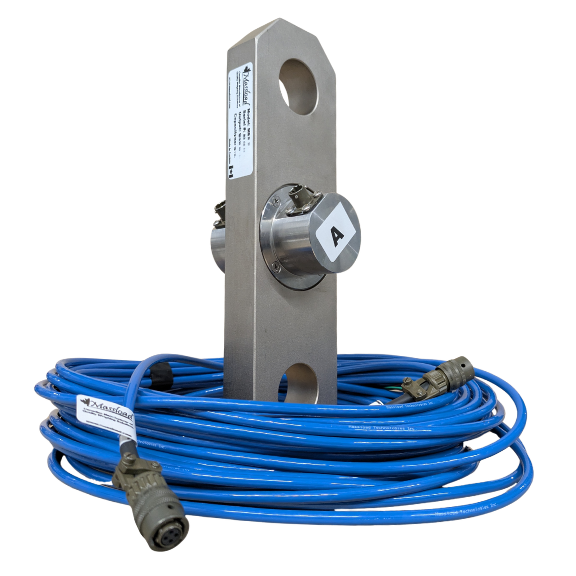

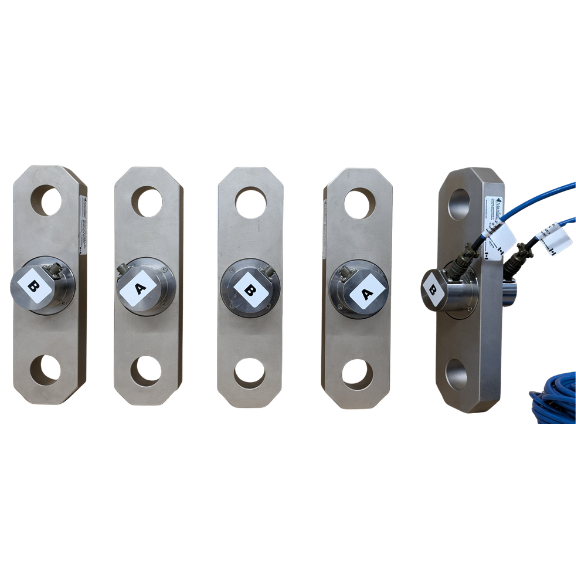

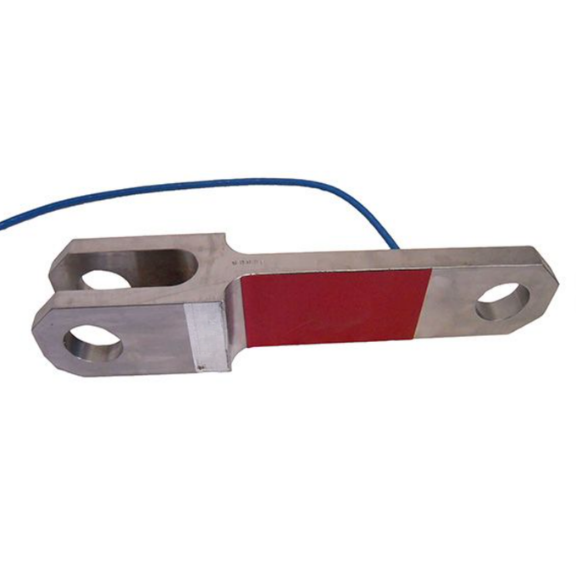

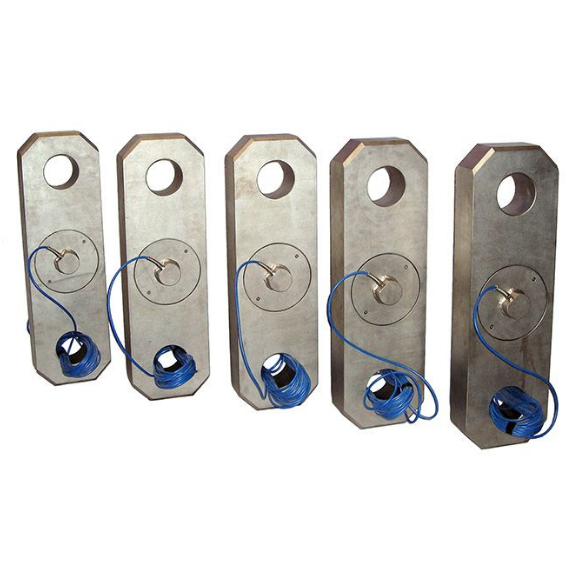

Massload Custom Tension Links
Massload Custom Tension Load Cell are engineered and manufactured in-house for crane, winching, lifting, and hanging scale applications.
They are available in capacities up to — and exceeding — 1,000,000 lb (453,600 kg), and can be designed to meet industrial safety factors of up to SF 10:1 for overload protection.
Output options include mV/V, 4-20 mA, 0-10 V, and wireless.
PRODUCT DETAILS
At Massload, we pride ourselves on engineering top-of-the-line custom tension load cell transducers, with the highest quality materials and manufactured in-house through our specialized Quality Management System.
Our dedicated engineering team collaborates closely with clients to develop tension links precisely tailored to the unique demands of crane, winching, lifting, and hanging scale applications, with a particular depth of experience serving the mining industry.
Every custom tension link is designed using the latest 3D modeling and FEA analysis technology and is available in capacities up to, and exceeding, 1,000,000 lb (453,600 kg).
Where safety is critical, units can be engineered to industrial safety factors of up to SF 10:1 (1000% overload protection).
Each link is made from stainless or quality alloy steel sourced exclusively from USA and/or European mills, heat treated in an ISO 9001 registered facility, and surface coated with high-phosphorous, corrosion- and chip-resistant industrial-grade electroless nickel, also in an ISO 9001 registered facility.
All units are tested and calibrated to standards traceable to the National Institute of Standards and Technology (NIST), USA. Massload is the only Canadian load cell manufacturer to achieve VCAP (Verified Conformity Assessment Program) certification.
Output options include mV/V, 4-20 mA, 0-10 V, and wireless for PLC interface or direct to hand-held displays or PC interface.
Most Common Applications: Crane and hoist load monitoring; winching and winch line tension monitoring; hanging scale applications.
| Capacity | Engineered to your specific capacity (custom) |
|---|---|
| Accuracy | < 1% FS – 0.1% to 0.2% full scale may be achieved with multi-point calibration |
| Safe Overload | 150% to 200% |
| Ultimate Overload | 400% ultimate overload standard, customizable to safety factor 10:1 |
| Input Resistance | 350 Ω (standard) |
| Output Resistance | 350 Ω (standard) |
| Operating Temperature | -40° C to +80° C (-40° F to 176° F) – Standard |
| Compensated Temperature | -10° C to +40° C (-14° F to 104° F) – Standard |
| Material | IP67 (stardard) |
| Sealing | 17-4 PH Stainless Steel (standard) |
| Protective Coating | Electro-finish Stainless Steel |
