Massload Wired Tension Link to Computer – Fast sampling

IMAGES
VCAP

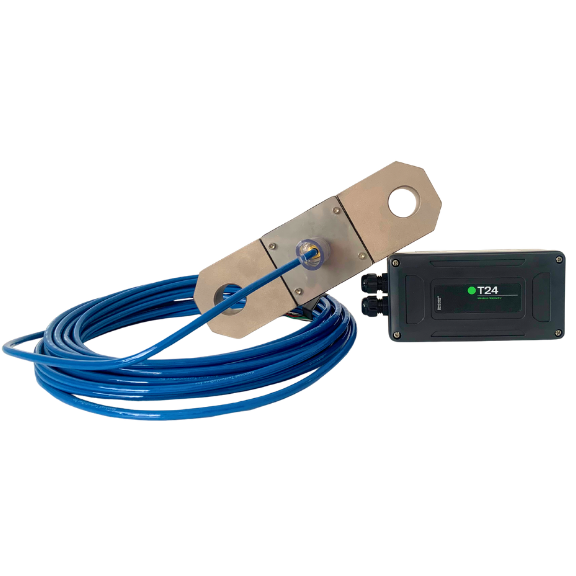

Built for capturing the exact moment of impact, the Massload Wired Tension Link to Computer connects to a Mantracourt FSU-SSB module with fast sampling rate,
a compact USB device that delivers up to 4,800 samples per second at 13-bit noise-free resolution directly to a PC, with no external power required.

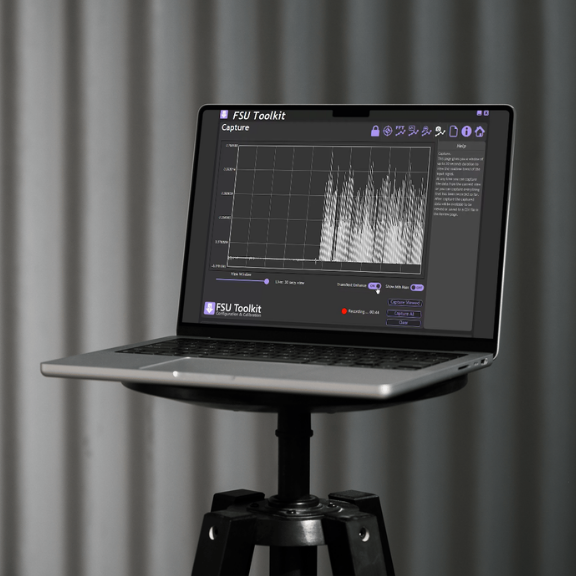

The free FSU Toolkit software provides real-time oscilloscope viewing, FFT frequency analysis, and data capture, purpose-built for impact, drop, vibration, and materials testing where the
exact moment of an event must be captured.

PRODUCT DETAILS

Capacity

10,000 lb (4,536 kg), 25,000 lb (11,340 kg), 50,000 lb (22,680 kg), 75,000 lb (34,019 kg), 100,000 lb (45,359 kg), 150,000 lb (68,039 kg), 250,000 lb (113,400 kg); Custom capacity available upon request

Accuracy

0.1% FS

Safe Overload

200% of full scale

Ultimate Overload

400% of full scale

Full Scale Output

2 mV/V nominal

Maximum Excitation

10 V DC

Bridge Resistance

350 Ω

Operating Temperature

−40°C to +80°C (-40F to +176F)

Compensated Temperature

−10°C to +40°C (+14F to +104F)

Sealing Standard

IP67

Material

High-strength alloy steel

Protective Coating

Electroless nickel coating
