Massload Wired Tension Link to Wireless Transmitter

IMAGES
VCAP

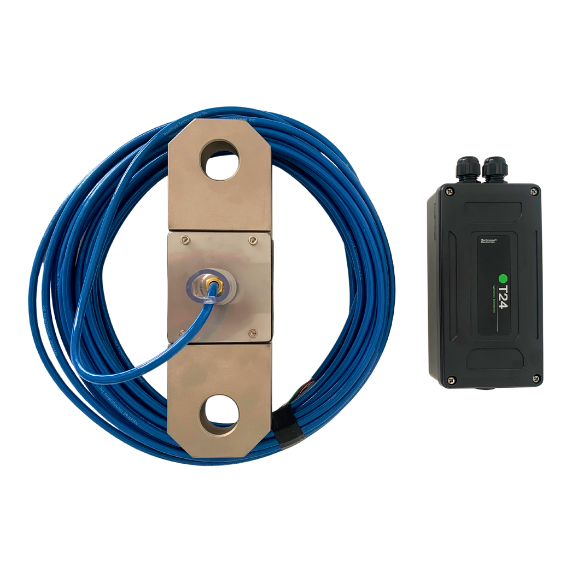

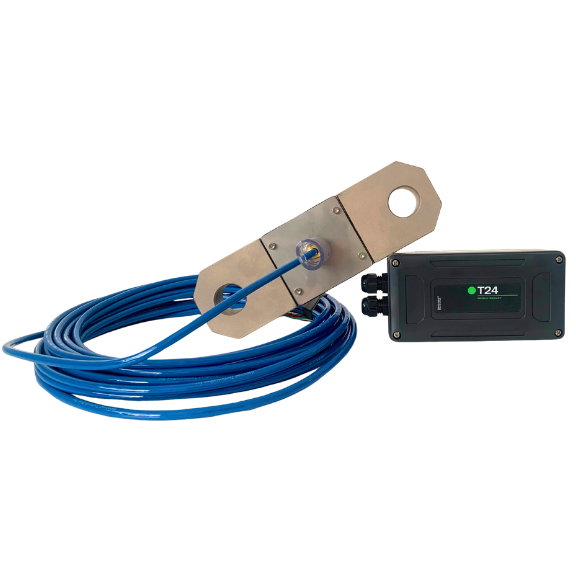

Bridging the gap between wired and wireless, the Massload Wired Tension Link to Wireless Transmitter takes a hardwired tension load cell and broadcasts its signal
over 2.4 GHz using a Mantracourt T24-ACM-SA or T24-ACMi-SA transmitter, with a range of up to 800 m (2,625 ft).
The T24-ACM-SA offers extended battery life for fixed installations, while the compact T24-ACMi-SA suits space-constrained applications.
Once converted, the signal is compatible with any T24 receiver, handheld display, analog output, serial output, relay, or gateway, giving the wired tension link the same flexibility as the wireless product line.

PRODUCT DETAILS

Capacity

10,000 lb (4,536 kg), 25,000 lb (11,340 kg), 50,000 lb (22,680 kg), 75,000 lb (34,019 kg), 100,000 lb (45,359 kg), 150,000 lb (68,039 kg), 250,000 lb (113,400 kg); Custom capacity available upon request

Accuracy

0.1% FS

Safe Overload

200% of full scale

Ultimate Overload

400% of full scale

Full Scale Output

2 mV/V nominal

Maximum Excitation

10 V DC

Bridge Resistance

350 Ω

Operating Temperature

−40°C to +80°C (-40F to +176F)

Compensated Temperature

−10°C to +40°C (+14F to +104F)

Sealing Standard

IP67

Material

High-strength alloy steel

Protective Coating

Electroless nickel coating
