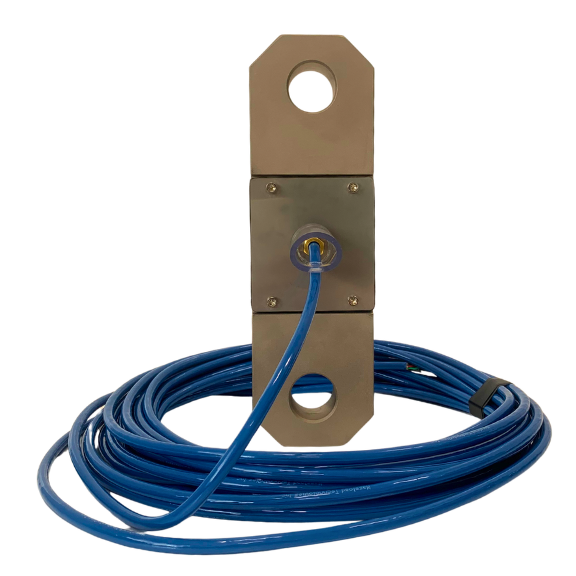

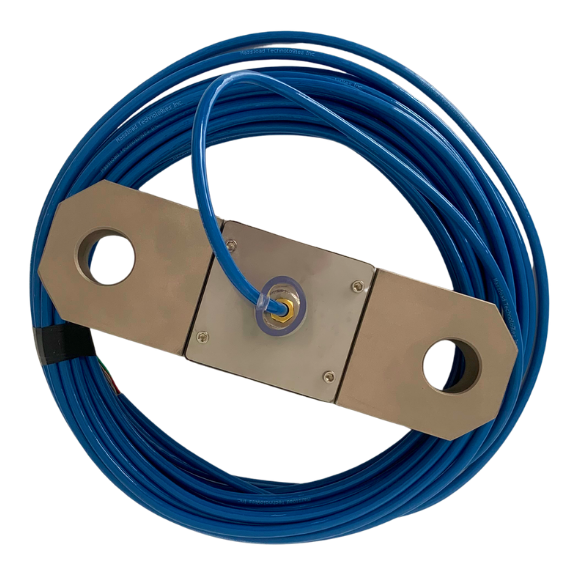

Massload Wired Tension Link with Analog Output

IMAGES
VCAP

For applications where space is at a premium, the Massload Wired Tension Link with Analog Output houses the signal conditioner inside the load cell body itself, ideal for applications with limited installation space. The Massload ML-4-20MA delivers a cost-effective 4-20 mA, 2-wire output on a wide 9-30 V DC supply. Alternative, ICA4H from Mantracourt provides options for 2, 3 or 4 wired analogue output. For in-line installation, Anyload A1A-22 offers a compact aluminum-cased amplifier with 0-10 V or 4-20 mA output.

PRODUCT DETAILS

Capacity

10,000 lb (4,536 kg), 25,000 lb (11,340 kg), 50,000 lb (22,680 kg), 75,000 lb (34,019 kg), 100,000 lb (45,359 kg), 150,000 lb (68,039 kg), 250,000 lb (113,400 kg); Custom capacity available upon request

Accuracy

0.1% FS

Safe Overload

200% of full scale

Ultimate Overload

400% of full scale

Full Scale Output

2 mV/V nominal

Maximum Excitation

10 V DC

Bridge Resistance

350 Ω

Operating Temperature

−40°C to +80°C (-40F to +176F)

Compensated Temperature

−10°C to +40°C (+14F to +104F)

Sealing Standard

IP67

Material

High-strength alloy steel

Protective Coating

Electroless nickel coating
