Massload Wired Tension Link to Transmitter

IMAGES
VCAP

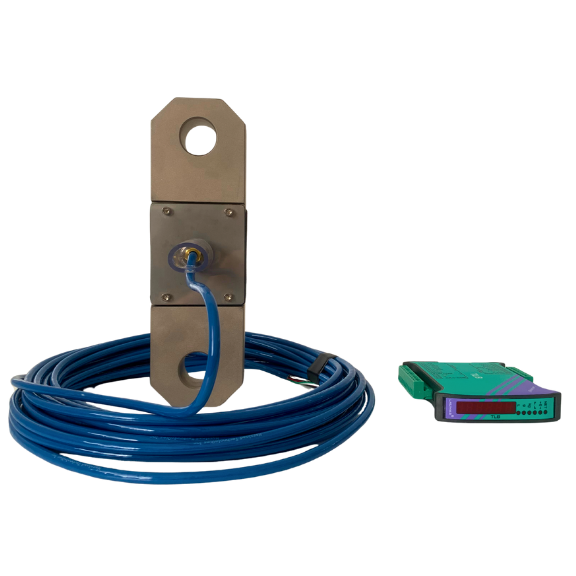

Built around a high-capacity IP67 tension load cell, the Massload Wired Tension Link with Transmitter connects directly via cable to a DIN rail weight transmitter for
seamless integration into a control panel.

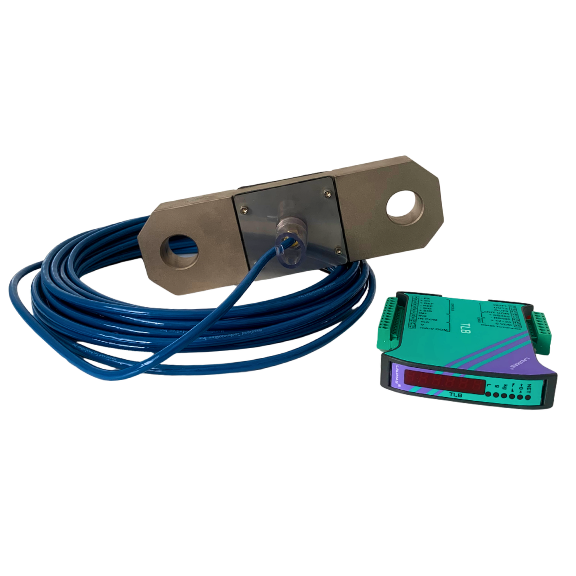

Choose from the TLS for basic RS485 communication, the TLB for analog output and fieldbus options, the TLE for compact installations, the TLM8 for adding up to 8 independent tension links on a single unit, or the TLB4 for up to 4 links.
Fieldbus protocols including Modbus, Profibus, EtherNet/IP, and Profinet are available on the TLB, TLM8, and TLB4 models.

PRODUCT DETAILS

Capacity

10,000 lb (4,536 kg), 25,000 lb (11,340 kg), 50,000 lb (22,680 kg), 75,000 lb (34,019 kg), 100,000 lb (45,359 kg), 150,000 lb (68,039 kg), 250,000 lb (113,400 kg); Custom capacity available upon request

Accuracy

0.1% FS

Safe Overload

200% of full scale

Ultimate Overload

400% of full scale

Full Scale Output

2 mV/V nominal

Maximum Excitation

10 V DC

Bridge Resistance

350 Ω

Operating Temperature

−40°C to +80°C (-40F to +176F)

Compensated Temperature

−10°C to +40°C (+14F to +104F)

Sealing Standard

IP67

Material

High-strength alloy steel

Protective Coating

Electroless nickel coating
