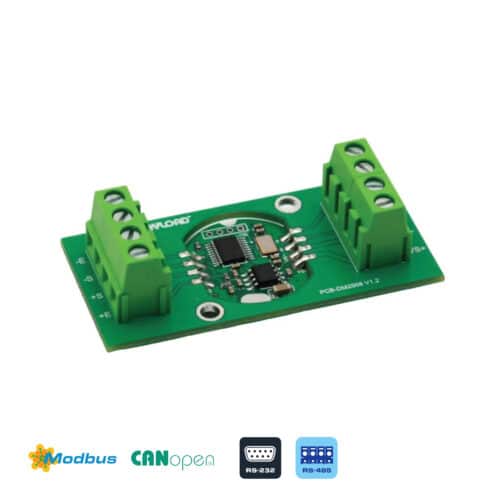

The Anyload DGB-D is a miniature digiboard digital signal conditioner with a 24-bit ADC, supporting RS 232 (Modbus RTU), RS 485 (Modbus RTU), CAN Bus (CANOpen), and CAN Bus (CAN J1939) outputs. Operating on 9 to 24 VDC, it connects to one 350 Ohms or up to four 350 Ohms load cells and can be embedded within load cells for built-in digital signal conditioning.
The DGB-D brings digital signal conditioning to the point of measurement in the same compact digiboard format as the DGB-A, but with a 24-bit ADC and digital output protocols: RS 232 (Modbus RTU), RS 485 (Modbus RTU), CAN Bus (CANopen) and CAN Bus (J1939).
The 24-bit resolution and up to 9-point linear calibration deliver high accuracy for tension, compression, torque, and pressure measurement in civil engineering monitoring, agricultural machinery, marine and offshore load monitoring, mining equipment, and heavy industrial automation. J1939 CAN Bus output suits on-board vehicle weighing and mobile equipment applications where a vehicle network already exists.
| Output Signal | RS 232 (Modbus RTU), RS 485 (Modbus RTU), CAN Bus (CANopen), CAN Bus (J1939) |
|---|---|
| Power Supply | 9 to 24 VDC |
| Bridge Sensitivity | – |
| Bridge Excitation | 5 VDC |
| Input Range | -3.9 to +3.9 mV/V |
| Linearity | ≤0.01% |
| Operating Temperature | -30°C to +50°C (-22°F to +122°F) |
| IP Rating | – |
| Enclosure Material | – |
| Dimensions | 64.1 mm x 30.7 mm (2.52″ x 1.21″); height 15.5 mm (0.61″) |
