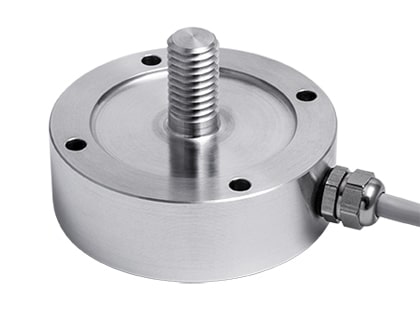

CLBT Compression and Tension Load Cell
The Laumas CLBT is a compact compression and tension load cell available in capacities of 50 kg, 100 kg, and 500 kg (110 lb to 1,102 lb), with IP65 protection and combined error ≤ ±0.05%. The 50 and 100 kg models feature aluminum alloy construction while the 500 kg model uses 17-4PH stainless steel, making the CLBT a versatile choice for benchtop force testing, OEM weighing instruments, and light industrial process monitoring applications.
PRODUCT DETAILS
The CLBT is a compact, low-profile compression and tension load cell designed for precision force measurement in light industrial and OEM applications where space is limited and bidirectional measurement is required. Available in three capacities, the CLBT covers the most common lower-capacity force measurement tasks for benchtop instrumentation, OEM weighing equipment, and light process monitoring systems. The 50 and 100 kg models are constructed from aluminum alloy (Avional) for a lightweight, compact design, while the 500 kg capacity uses 17-4PH stainless steel for added strength and corrosion resistance.
Manufactured according to OIML R60 standards with a combined error of ≤ ±0.05% and a rated output of 2 mV/V ±10%, the CLBT connects directly to load cell indicators, transmitters, and Analog output signal conditioners for PLC integration. Its IP65 dust-tight and water-spray-resistant sealing supports reliable operation in light industrial and commercial environments. An optional lower base accessory is available for simplified bench mounting. The operating temperature range of −30°C to +203°C (−22°F to +194°F) ensures consistent performance across a broad range of indoor and light outdoor applications.
Most Common Applications: Benchtop force testing instruments, OEM weighing scales, light industrial process monitoring, laboratory force measurement, quality control systems, compression and tension testing rigs.
| Capacities | 50 kg (110 lb), 100 kg (220 lb), 500 kg (1,102 lb) |
|---|---|
| Combined Error | ≤ ±0.05% |
| Non-Linearity | – |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2 mV/V ± 10% |
| Maximum Excitation | 15 V DC |
| Input Resistance | 700 Ω ± 20 |
| Output Resistance | 700 Ω ± 5 |
| Operating Temperature | −30°C to +203°C (−22°F to +194°F) |
| Compensated Temperature | −20°C to +70°C (−4°F to +158°F) |
| Sealing Standard | IP65 |
| Material | Aluminum Alloy (50 to 100 kg), 17-4PH Stainless Steel (500 kg) |
| Protective Coating | – |
