WINOX-R Stainless Steel Weighing & Batching Indicator
The Laumas WINOX-R is an AISI 304 stainless steel weight indicator and batching controller with a 6-digit red LED display, IP68 protection, RS 485/RS 232 and optional WiFi and fieldbus communications and NTEP Class III/IIIL approval. Available in BASE, LOAD, UNLOAD, 3/6/14 PRODUCTS, and Multiprogram versions for demanding industrial and outdoor weighing and batching environments.
PRODUCT DETAILS
The WINOX-R brings the full batching and weighing capability of the W200 and WDESK-L platforms into an AISI 304 stainless steel enclosure rated IP68 – making it the preferred choice for applications where the indicator is directly exposed to washdown, outdoor weather, or aggressive industrial cleaning. The 6-digit red LED display with 16 signalling LEDs is clearly readable at a distance in bright ambient light, which is critical in busy production areas and outdoor settings.

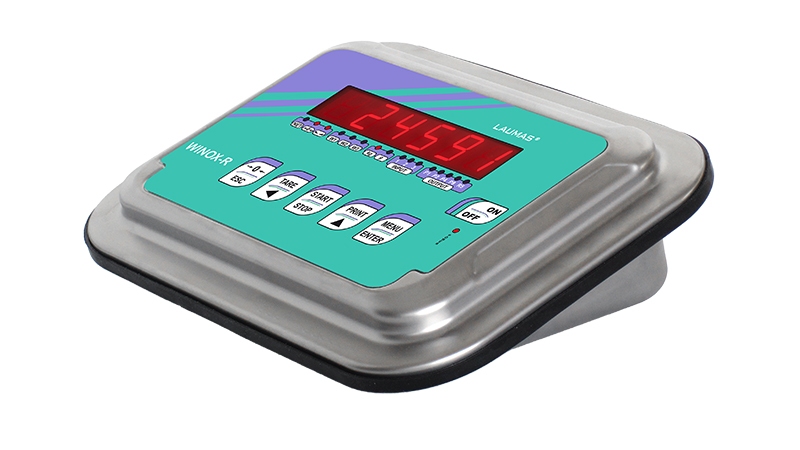

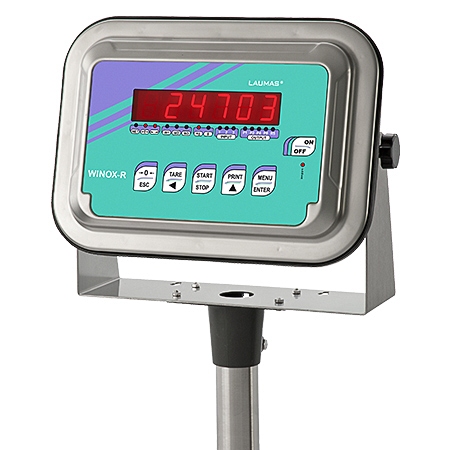

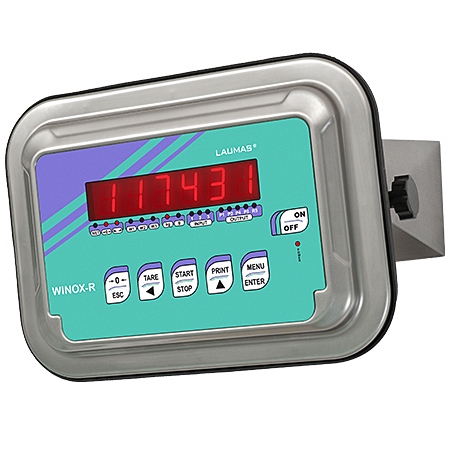

Available in P (standard, wall and desk with bracket, column or front panel mount), Q (front-panel mount), D (desk mount), and X ( wall and desk mount with bracket in ATEX zone 2-22) versions, the WINOX-R can be configured for wall mounting, column mounting, or panel integration to suit virtually any installation scenario. The optional WiFi module enables remote supervision and control via an integrated web server. The comprehensive batching suite covers 99 formulas, automatic fall calculation, tolerance error control, precision slow and tapping functions, and big-bag management. An optional rechargeable lead battery (16 hours) or NiMH pack enables battery-powered portable operation. NTEP Class III/IIIL and UL recognition for the United States and Canada support certified legal-for-trade use across a wide range of North American industrial applications.
Most Common Applications: Food processing and beverage production batching lines, chemical dosing and filling, outdoor and washdown industrial weighing stations, outdoor silo and hopper monitoring, hazardous area process weighing (ATEX version).
| Power Supply | 12 to 24 VDC ±10% 6W |
|---|---|
| Display | 6-digit semi-alphanumeric red LED |
| Enclosure | AISI 304 stainless steel; IP68 (P, Q and X versions) |
| Communications & Output | RS 485 and RS 232 Modbus RTU, optional WiFi (2.4 GHz), CANopen, DeviceNet, Profibus DP, EtherNet/IP, Ethernet TCP/IP, Modbus/TCP, 0-20 mA, 4-20 mA, 0-10V, 0-5V, +/-10V, +/-5V |
| Load Cell Input | Up to 8 pcs 350 Ω load cells, optional 0-10V or 4-20mA input |
| Resolution | ±999,999 divisions |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Dimensions | 286 x 206 x 108 mm; with bracket: 290 x 206 x 187 mm (P version) |
| Approvals | NTEP Class III/IIIL |
