The Laumas CE41INOX and CE81INOX are AISI 304 stainless steel IP67 equalization junction boxes for up to 4 or 8 load cells respectively, with M16×1.5 cable glands, lightning and electrical shock protection, and support for 4/6-wire connections. Built for demanding industrial and outdoor environments, they deliver reliable per-cell analog equalization in a robust corrosion-resistant enclosure.
The CE41INOX and CE81INOX are stainless steel equalization junction boxes, engineered for multi-cell weighing systems that demand environmental protection and reliable signal balancing. Both feature AISI 304 stainless steel construction with IP67 sealing, making them well suited for outdoor installations, food and beverage processing, chemical plants, agricultural settings, and any environment with regular washdown or moisture exposure.

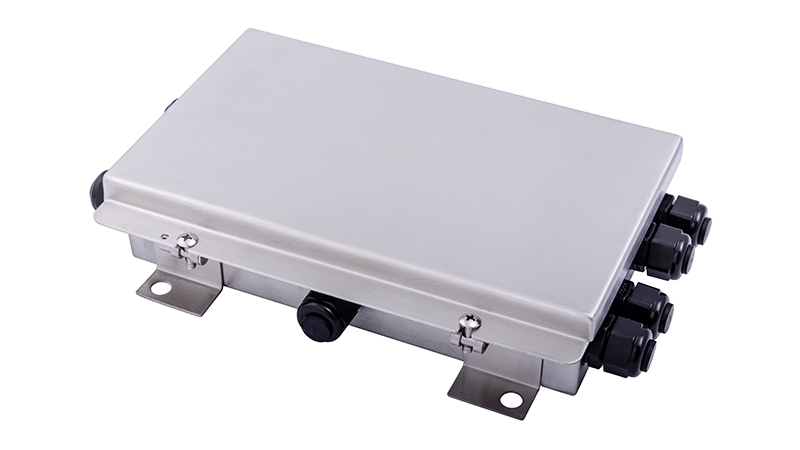

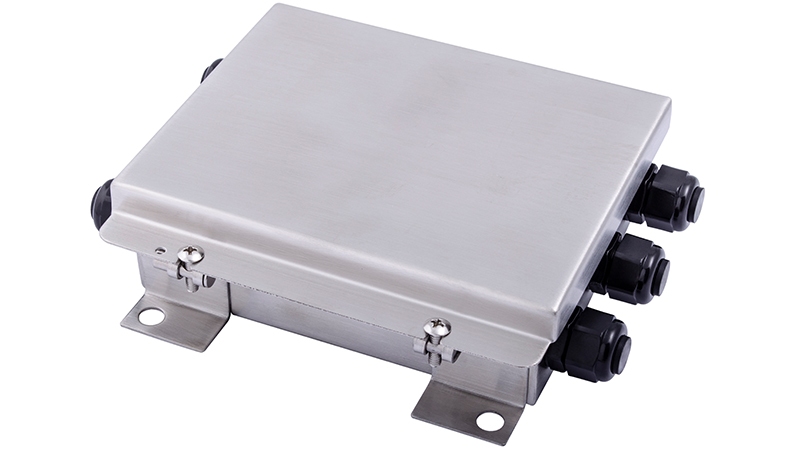

The CE41INOX connects up to 4 load cells via 4+1 M16×1.5 polyamide cable glands; the CE81INOX scales up to 8 cells with 8+1 M16×1.5 glands. Both models include a built-in lightning and electrical shock protection device, safeguarding sensitive load cell and instrumentation circuits from voltage spikes. An equalization board with individual 20 Ω potentiometers per channel enables field balancing of cell sensitivities for accurate combined output.
Most Common Applications: Platform and floor scales, weighbridges, tank and hopper weighing, outdoor industrial scales.
| Channels | – |
|---|---|
| Number of Load Cells | CE41INOX: up to 4; CE81INOX: up to 8 |
| Input Cable Fittings | M16 x 1.5 polyamide glands |
| Output Cable Fittings | M16 x 1.5 polyamide glands |
| Enclosure Material | AISI 304 Stainless Steel |
| IP Rating | IP67 |
| Lightning Protection | Yes (both models) |
| Dimensions | CE41INOX: 144 x 142 x 42 mm (5.7 x 5.6 x 1.7 in); CE81INOX: 200 x 147 x 43 mm (7.9 x 5.8 x 1.7 in) |
| Weight | – |
