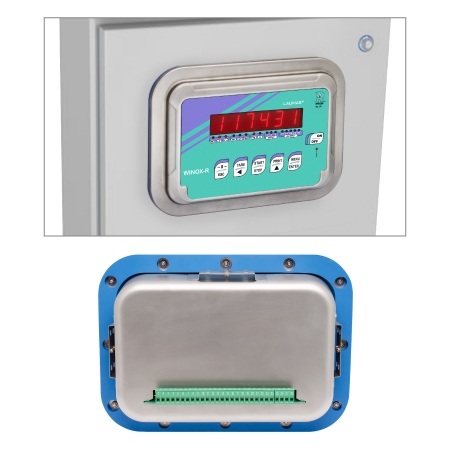

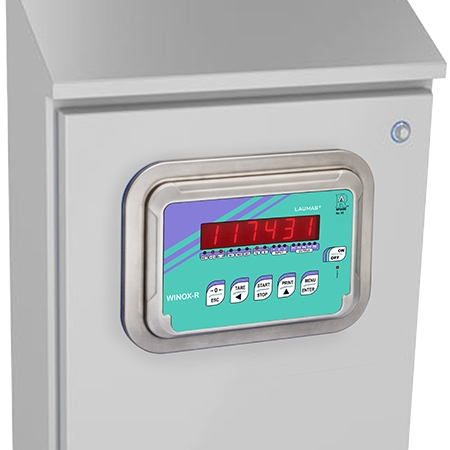

WINOX-R 3A Stainless Steel Hygienic Weighing & Batching Indicator
The Laumas WINOX-R 3A is an AISI 304 stainless steel hygienic weight indicator and batching controller with IP69K front-panel protection, 3A certification, a 6-digit red LED display, and NTEP Class III/IIIL approval for the United States and Canada. Engineered specifically for sanitary food processing and dairy environments where regular high-pressure hot wash-down is required.
PRODUCT DETAILS
The WINOX-R 3A is the food-industry-first member of the WINOX-R family, distinguished by its RPSCQC hygienic device authorization from 3-A Sanitary Standards Inc. (3-A SSI) – the benchmark standard for hygienic equipment design in food, dairy, and beverage processing in North America. While the standard WINOX-R provides IP68 protection, the 3A adds IP69K at the front panel, meaning it withstands high-pressure hot steam and water jet cleaning at up to 100 bar – the type of aggressive sanitation protocols used daily in meat processing, dairy, and food Original Equipment Manufacturer (Original Equipment Manufacturer (OEM)) facilities.

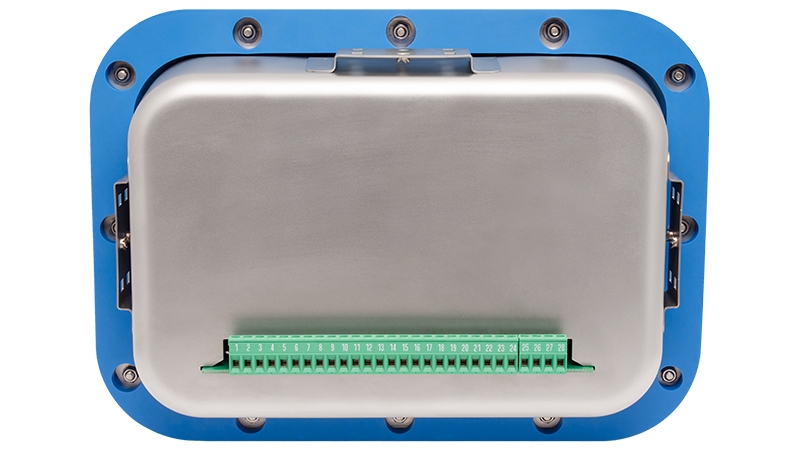

The front-panel-mounted design with extractable screw terminal blocks facilitates rapid servicing in production environments. Like the full WINOX-R range, the WINOX-R 3A has different programs such as Base, Load, Unload, 3/6/14 Products, and Multiprogram batching with 99 formulas, precision batching, automatic fall calculation, and big-bag management. Fieldbus options such as CANopen, DeviceNet, Profibus DP, EtherNet/IP, Ethernet TCP/IP, and Modbus/TCP allow full automation integration. NTEP Class III/IIIL and UL recognition for the United States and Canada ensure certified legal-for-trade accuracy in certified food processing environments.
Most Common Applications: Meat and poultry processing, dairy and cheese production, beverage and brewery batching, cleanroom weighing, food ingredient dosing and filling requiring hygienic certification.
| Power Supply | 12 to 24 VDC ±10% 6W |
|---|---|
| Display | 6-digit semi-alphanumeric red LED |
| Enclosure | AISI 304 stainless steel, IP69K front-panel |
| Communications & Output | RS 485 and RS232 Modbus RTU, CANopen, DeviceNet, Profibus DP, EtherNet/IP, Ethernet TCP/IP, Modbus/TCP, 0-20 mA, 4-20 mA, 0-10 V, 0-5V, +/-10V, +/-5V |
| Load Cell Input | Up to 8 pcs 350 Ω load cells, optional 0-10V or 4-20mA input |
| Resolution | ±999,999 divisions |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Dimensions | 286 x 206 x 96 mm |
| Approvals | NTEP Class III/IIIL, 3A |
