CE41INOXP Stainless Steel Junction Box

IMAGES

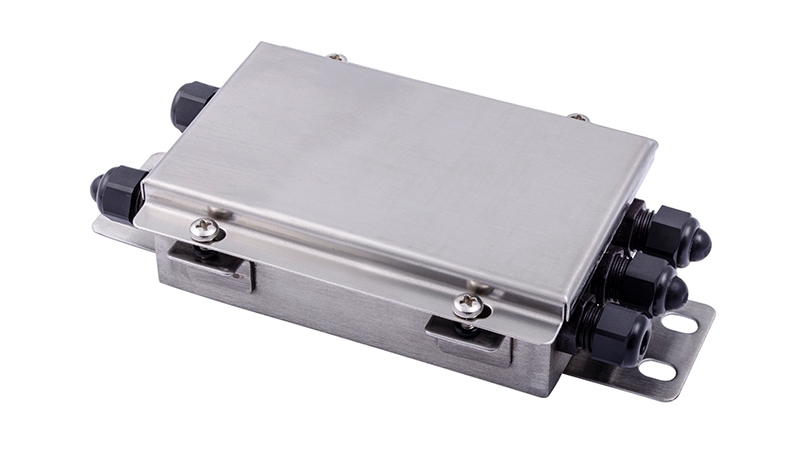

The Laumas CE41INOXP is a AISI 304 stainless steel IP67 junction box for up to 4 load cells, using M12×1.5 cable glands and supporting 4/6-wire load cell connections. Designed for indoor installations, it delivers reliable analog equalization with per-cell potentiometer trimming in a corrosion-resistant enclosure.

PRODUCT DETAILS

The CE41INOXP is the compact junction box, designed without lightning protection for indoor installations. Its IP67 rating keeps dust and water out in washdown and high-humidity environments, while the AISI 304 stainless steel body resists corrosion in food processing, chemical, and agricultural applications. Tis junction box accepts up to 4 load cells via M12×1.5 cable glands.

The onboard equalization board with a 20 Ω potentiometer per load cell allows straightforward mechanical trimming to balance cell sensitivities and ensure accurate combined output. Wide range of working temperatures from −20°C to +60°C (−4°F to +140°F) allows to perform in a variety of applications..

Most Common Applications: Indoo platform and floor scales, tank and hopper weighing, food processing weighing systems.

Channels

Number of Load Cells

Up to 4

Input Cable Fittings

M12 x 1.5 (4+1 polyamide)

Output Cable Fittings

M12 x 1.5

Enclosure Material

AISI 304 Stainless Steel

IP Rating

IP67

Lightning Protection

Dimensions

160 x 90 x 42 mm (6.3 x 3.5 x 1.7 in)

Weight
