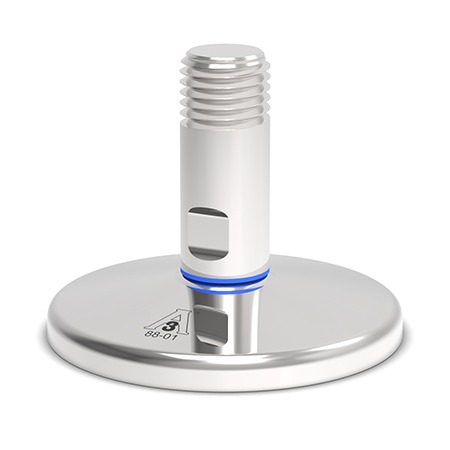

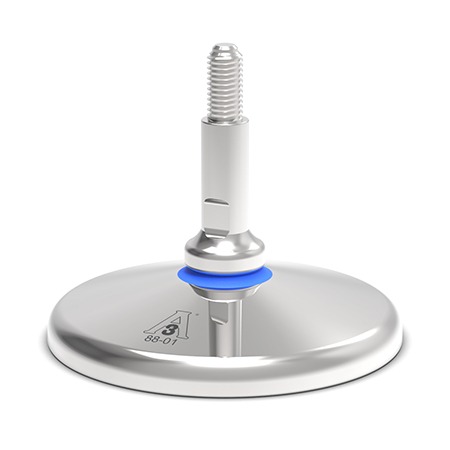

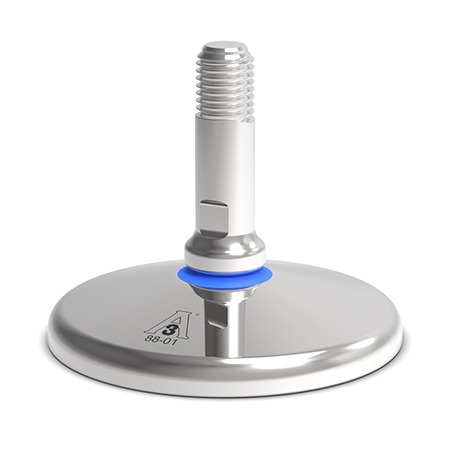

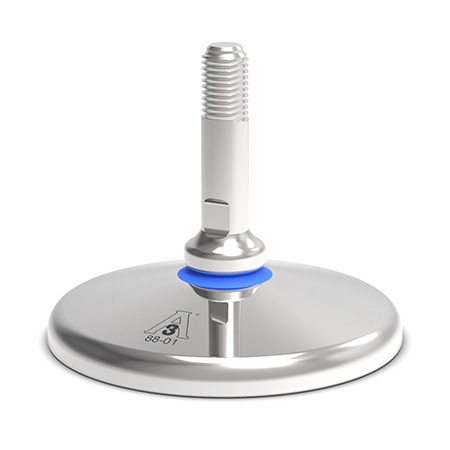

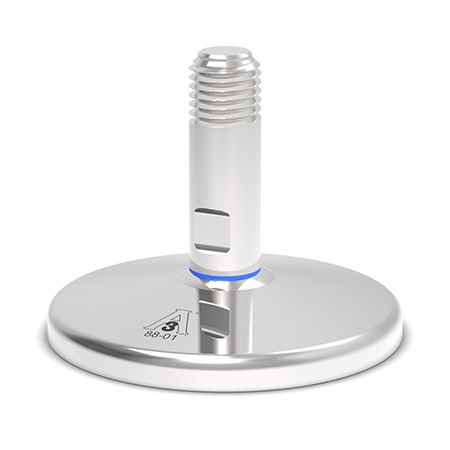

The Laumas HD is a self-centering adjustable hygienic foot in stainless steel, rated up to 20,000 kg (44,092 lb) with thread sizes from M12 to M36 to fit FLC 3A load cell. It carries 3-A Sanitary Standard certification, making it the purpose-built choice for food, dairy, and pharmaceutical platform scale installations.
The HD is a self-centering adjustable hygienic foot engineered specifically for FLC 3A load cell. Its adjustable height allows levelling compensation during installation across uneven floors, and the self-centering mechanism reduces lateral forces on the load cell. Available in six thread sizes from M12 to M36, covering static loads from 2,000 to 20,000 kg (4,409 to 44,092 lb). Available on request: pluggable hygienic foot, with holes for fixing to the floor..
Most Common Applications: Food and beverage processing scales, dairy and meat industry floor scales, pharmaceutical platform weighing, sanitary tank and hopper weighing systems.
| Max Static Load | 2,000 kg (4,409 lb) to 20,000 kg (44,092 lb) – individual capacities:
|
|---|---|
| Thread Sizes | M12 x 1.75; M16 x 2; M20 x 2.5; M24 x 3; M30 x 3.5; M36 x 4 |
| Material | Stainless steel |
