VDTX Load Cell Mounting Kit

IMAGES

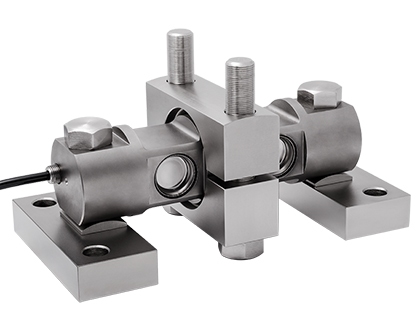

The Laumas VDTX is a nickel-plated steel alloy mounting kit for double ended shear beam load cells (DTX series), supporting up to 60,000 lb (27,000 kg) of static load. It provides rigid attachment preventing horizontal movement, and can be used in both compression and tension configurations. Ideal heavy industrial weighing applications and on-board weighing systems.

PRODUCT DETAILS

The VDTX mounting kit is a heavy-duty solution for installing double shear beam load cells in demanding high-capacity weighing applications up to 60,000 lb (27,000 kg). Made from nickel-plated steel alloy, the kit rigidly secures the load cell to prevent horizontal movement — critical in applications subject to vibration, wind loading, or dynamic forces such as container weighing and heavy industrial platforms.

The VDTX supports both compression and tension configurations, providing versatility for varied installation geometries. Base plates must be mounted on non-deformable surfaces. A common application example is container weighing, where the kit provides the mechanical foundation for accurate static and dynamic load measurement.

Most Common Applications: Container weighing, heavy industrial platform scales, port and logistics weighing, large silo and tank weighing, structural weighing in seismic or wind-exposed environments.

Capacities

Up to 60,000 lb (27,000 kg / 27 ton)

Material

Nickel-Plated Steel Alloy
