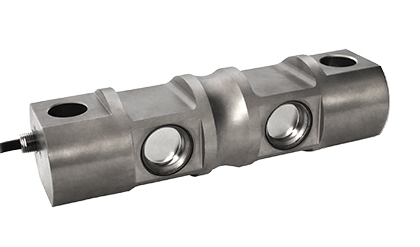

DTX Double-Ended Shear Beam Load Cell
The Laumas DTX is an AISI 4340 nickel plated steel double-ended shear beam load cell available in capacities from 20,000 lb to 60,000 lb (9 to 27 metric tons) with OIML R60 C3 certification, IP68 hermetic protection, and a combined error of ≤ ±0.023%. With FM HazLoc and ATEX/IECEx listings, it is suitable for demanding industrial and hazardous area platform and truck scale applications.
PRODUCT DETAILS
The DTX is a heavy-duty nickel plated alloy steel double-ended shear beam load cell covering a capacity range of 20,000 lb to 60,000 lb (9 to 27 metric tons). A double-ended shear beam is fixed at both ends with the load applied at the center, providing a stable load centering ideal for truck scales, platform scales, and industrial vessel weighing. The DTX achieves a combined error of ≤ ±0.023% and carries OIML R60 C3 certification (minimum verification interval Emax/10,000 or Emax/15,000) for legal-for-trade applications. IP68 hermetic sealing and AISI 4340 nickel plated steel construction provide robust protection against moisture, dust, and corrosion in industrial outdoor environments. Rated output is 3.0 mV/V ±0.267% with a maximum excitation of 18 VDC and a compensated temperature range of -10°C to +40°C (14°F to 104°F), operating to -35°C to +65°C (-31°F to 149°F). FM HazLoc (US/Canada) and ATEX/IECEx certification are available for hazardous area use. Cable length is 9 m (29.5 ft).
Most Common Applications: Truck scales, heavy platform scales, industrial vessel and tank weighing, legal-for-trade heavy vehicle weighing, hazardous area industrial weighing.
| Capacities | 20,000 lb (9,072 kg), 30,000 lb (13,608 kg), 40,000 lb (18,144 kg), 50,000 lb (22,680 kg), 60,000 lb (27,216 kg) |
|---|---|
| Combined Error | ≤ ±0.023% FS |
| Non-Linearity | – |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 3.0 mV/V ±0.267% |
| Maximum Excitation | 18 V DC |
| Input Resistance | 700 Ω ±7 |
| Output Resistance | 700 Ω ±7 |
| Operating Temperature | −35°C to +65°C (−31°F to +149°F) |
| Compensated Temperature | −10°C to +40°C (14°F to +104°F) |
| Sealing Standard | IP68 |
| Material | AISI 4340 Alloy Steel |
| Protective Coating | Nickel Plated |
