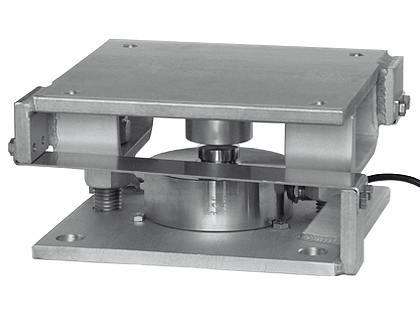

V15000EN1090 / V30000EN1090 / V100000EN1090 Mounting Kit for Compression Low-Profile Load Cells
The Laumas V15000EN1090, V30000EN1090, and V100000EN1090 are AISI 304 stainless steel mounting kits certified according to EN 1090 for compression low-profile load cells (CBL, CBX series), supporting up to 30,000 kg (66,139 lb), 50,000 kg (110,231 lb), and 100,000 kg (220,462 lb) respectively. They feature stainless steel lateral laminas and anti-tilt threaded rods.
PRODUCT DETAILS
The V15000EN1090, V30000EN1090, and V100000EN1090are large-capacity stainless steel mounting kits for low-profile compression load cells in the heaviest industrial weighing applications. The V15000 supports up to 30,000 kg (66,139 lb), the V30000 up to 50,000 kg (110,231 lb), and the V100000 up to 100,000 kg (220,462 lb). All feature AISI 304 stainless steel upper and lower plates, stainless laminas for horizontal lateral constraint, and dual anti-tilt threaded rods with self-locking nuts to prevent structural tipping under dynamic and environmental loads.
As with the V10000 series, installation is carried out by first fitting a placeholder pipe of the same dimensions as the load cell, allowing all construction and finishing work (welding, concrete pours, etc.) to be completed before the actual load cell is inserted and secured — protecting the sensor from construction damage.
Most Common Applications: Large industrial silos and storage tanks, heavy-duty process vessel weighing, bulk material hopper scales, bridge and large structure weighing.
| Capacities | V15000EN1090: up to 30,000 kg (66,139 lb); V30000EN1090: up to 50,000 kg (110,231 lb); V100000EN1090: up to 100,000 kg (220,462 lb) |
|---|---|
| Material | AISI 304 Stainless Steel |
- Datasheet
- Technical Drawings - V15000EN1090
- Technical Drawings - V30000EN1090
- Technical Drawings - ADAT100
- Technical Drawings - ADAT126
- Technical Drawings - ADAT165
- Technical Drawings - SPVZ151
- Technical Drawings - SPVZ152
- Technical Drawings - SPVZ301
- Technical Drawings - SPVZ302
- Technical Drawings - SPVZ1001
- Technical Drawings - SPVZ1002
- Technical Drawings - SPVZ1505
- Technical Drawings - SPVZ3005
- Technical Drawings - SPVZ10005
- Technical Drawings - Vxxx000EN1090
